Amalock DB101 Setup Instructions

Set up Instructions
for Video Doorbell and Camera
For use with
DB101, CAM200A, CAM400
1. Download the Amalock App from
the App store and register.
2. Open the back of the doorbell with the
screwdriver supplied and remove the
tabs from the base of each battery and
place back inside of unit ensuring
connection.
(Not required for the CAM200A
or CAM400)
3. The device will now say 'The camera is
now ready for pairing' whilst the push
button is flashing blue.
4. Open the Amalock app and tap the '+'
at the top right.
5. For CAM200A or CAM400 Select
'Video and Surveillance'
6. For DB101 Select 'Smart Doorbell'
7. At the bottom of the screen tap on the
circle next to the text 'Make sure the
indicator.....' to show an orange tick.
8. Tap 'Next'
9. Add your Wi-Fi password
10. Show the barcode to the device
as shown.
11. When you hear a bleep the device and
phone will pair.
12. To name the device tap on the
pen symbol.
13. Tap 'Done' and your phone will then
show you live video streaming

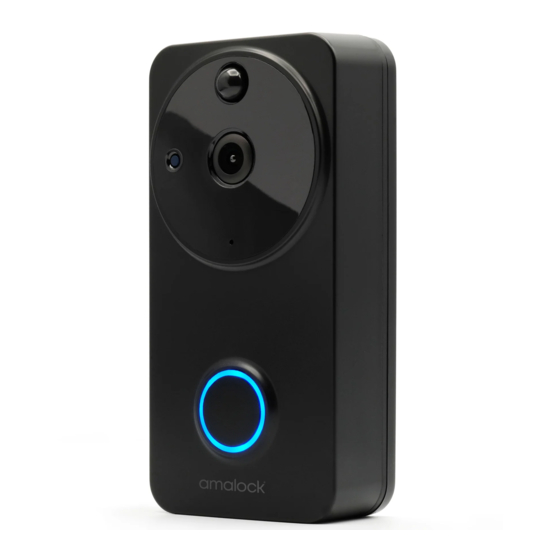

DB101
SMART DEVICES
For 2-way Audio.
1. The device is default set to one-way talk,
so tap on the 'pen' symbol top right to
take you to settings.
2. Tap 'Basic Function Settings' then tap
'Talk Mode' to change to Two-Way Talk.
For PIR motion adjustment
1. Go to Advanced Settings and tap 'PIR'
to adjust to Low, Medium, High or Off
as desired
To Pair the Indoor Chime (Not required
for CAM200A and CAM400)
1. Plug into 3 Pin socket and the device
will play the default ring tone once at the
maximum volume.
2. Select from the various chimes using the
up and down selector on the left side then
press and hold in the volume control
button for about 5 seconds until you here
a single "ding". The pairing mode will be in
pairing mode for 8 seconds.
3. Press the doorbell button twice to pair.
4. Both devices are now paired.
5. To adjust the volume, short press in the
top button until desired volume
is reached.
CAM200A
CAM400
DOWNLOAD
THE APP
