PTS E-Kit™ User Guide for
PRC-117G/RT-1523 E-Kit™
Table of Contents:

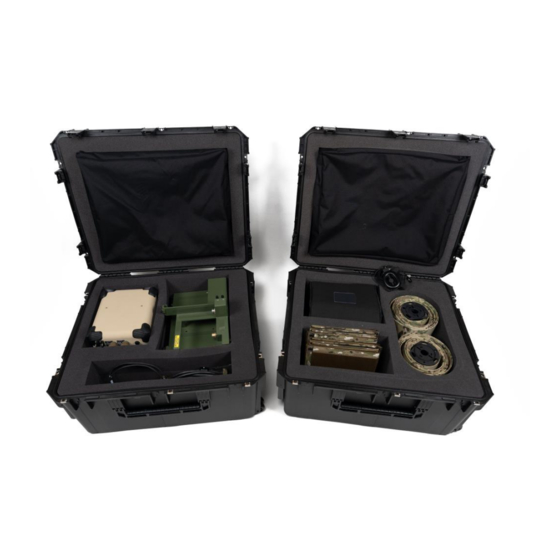

1. E-Kit™ Major Items List
2. PSDS Overview & Parts List
6. Concept of Operations & Best Practices
7. Maintenance, Warranty & Contact Information
Failure to follow all instructions and guidance provided in E-Kit™ system
manuals may result in system failure and/or personnel injury. It is highly
recommended for all personnel to review all instructions and warnings
when employing E-Kit™ systems and components prior to operations.
For additional guidance in setup and operations, please reference the full
manuals contained within the kit.
Rev 1.1
www.pts-inc.com | info@pts-inc.com | 256-539-6787 | 1318-B Putman Drive Huntsville, AL 35816
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pts E-Kit PRC-117G
Summary of Contents for Pts E-Kit PRC-117G
- Page 1 E-Kit™ systems and components prior to operations. For additional guidance in setup and operations, please reference the full manuals contained within the kit. Rev 1.1 www.pts-inc.com | info@pts-inc.com | 256-539-6787 | 1318-B Putman Drive Huntsville, AL 35816...
- Page 2 Parts List / Major End Items E-Kit™ PART NUMBER DESCRIPTION ITEM # PER KIT AS0117-HR- Harris/SINCGARS 117G/1523 Dual AC/DC Power Supply Docking Station w/ 117G/1523 Manual ANT-RTL-307005-1-1 Antenna - IAM D - 7m 3" (Dual Band: 30-88 & 225-512 MHz) - Multicam CAB.OTH.101 Cable - LMR 400, 100' PWR-BTR-00203...
- Page 3 Power Supply Docking Station (PSDS) PSDS Components AS0117-HR-117G/1523 (PSDS) 110V AC PWR Cable Audio Jumper – J3 1. PTS AS0117-HR-117G/1523 PSDS for AN/PRC-117G and RT-1523 (ASIP) 2. 110V AC PWR Cable AS0117-HR-117G/1523 shown with unit supplied radios and cables 3. Audio Jumper...
- Page 4 Power Source & Solar Kit 2. CAB.DPW.102HS 1. PWR-BTR-00203 24V DC PWR Source with AC PWR Cable Connected 3. CAB.DPW.101S 4. CAB.APW.101 7. PWR.BTR.12001 Power Source Components PWR-BTR-00203, 24VDC Power Source CAB.DPW.102HS, "Y" for HARRIS / SINCGARS PSDS 5. CAB.APW.102 CAB.DPW.101S, SINCGARS Straight Power Source to PSDS CAB.APW.101, 110V AC PWR Cable CAB.APW.102, Solar Input Cable (Deluxe Kit Only)
- Page 5 Antenna System 2. Top Collar 3. Secondary Collar 1. ANT-RTL-307005-1-1 4. Base Cap 5. VHF Connection Cable 6. UHF Connection Cable 7. Guy Ropes 8. Guy Wire Stakes (Rock Pegs) ANT-RTL-307005-1-1 Antenna Components Antenna System ANT-RTL-307005-1-1 7m 3” VHF/UHF Integrated Shown Bagged Antenna Mast System Top Collar...
- Page 6 E-Kit™ Interconnect Diagram Power Source connected to PSDS 24V DC Inputs (Note: The supplied Straight PWR Cable (CAB.DPW.101S) is used to power one side of a Dual PSDS and combined with the “Y” PWR Cable (CAB.DPW.102S) to provide DC power to both sides or the PSDS.) Power Source connected to optional solar panels (Note: Power Source can support up to 3 solar panels when connected to the CAB.APW.102 DC Solar input cable)
- Page 7 PTS E-Kit™ Concept of Operations & Best Practices The PTS Expeditionary Kit (E-Kit™) for Tactical Radios is a self-contained ancillary kit that supports tactical communications in a light-weight, easily usable package. The E-Kit™ contains the following: 1. Power Supply Docking Station (PSDS) that mounts the radios and supplies regulated power and audio outputs;...
- Page 8 The PTS PSDS warranty shall be for a period of thirty-six (36) months from the date of the receipt by the user. Products sold by but not manufactured by PTS will be covered by the Original Equipment Manufacturers (OEM) warranty policies and procedures.
