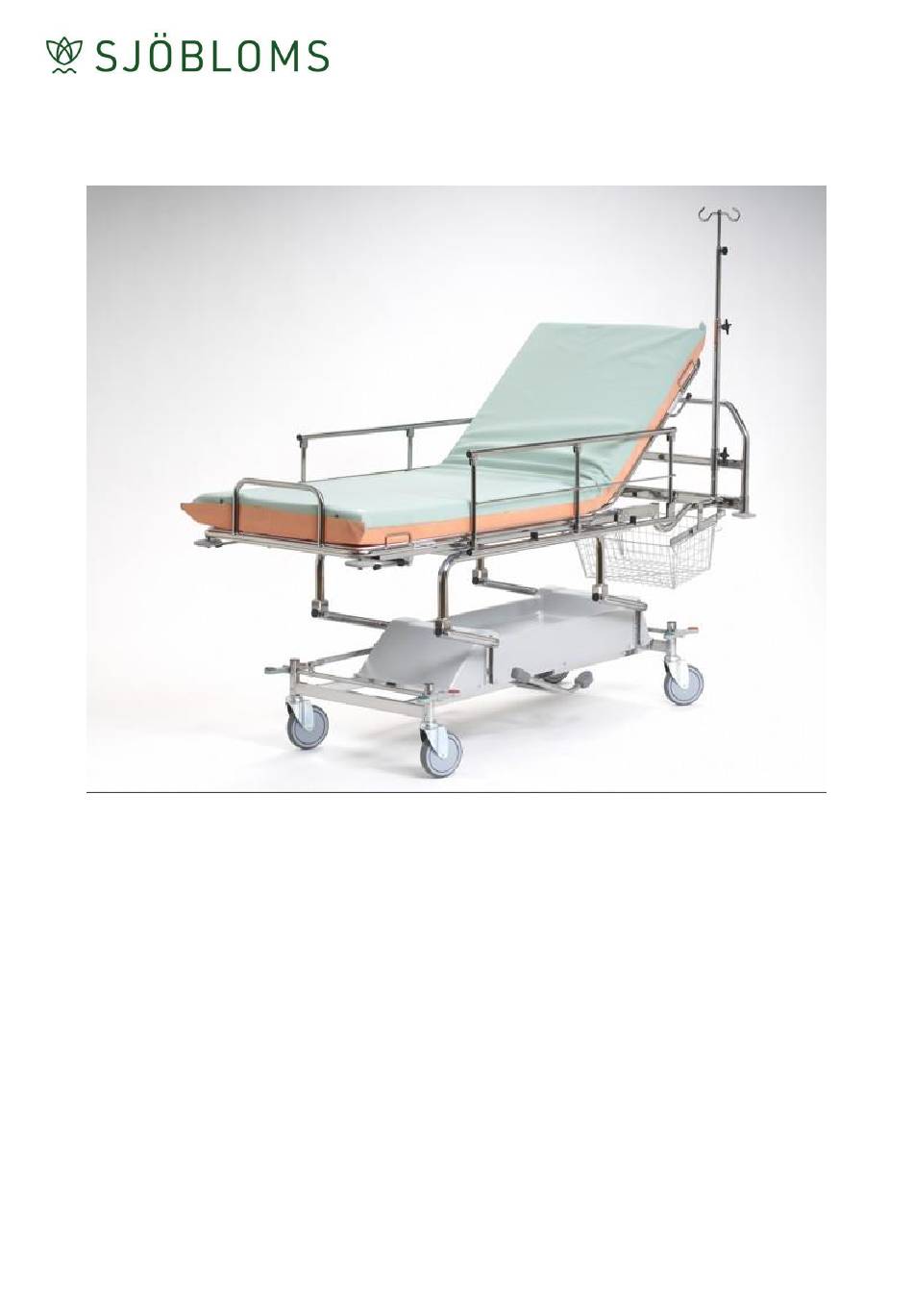

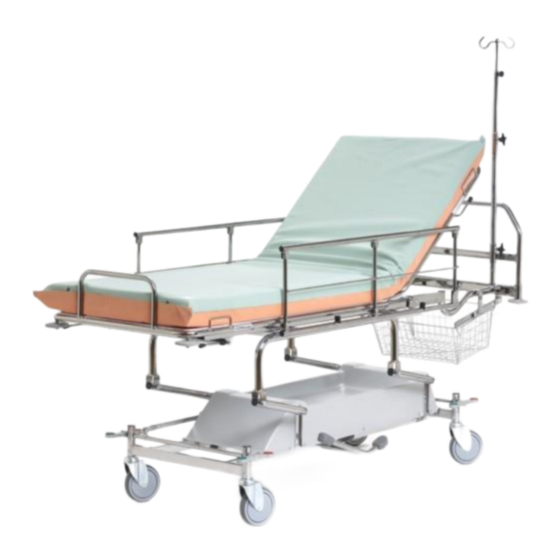

- Page 1 USER MANUAL EMERGENCY & PATIENT TROLLEY For models B1-230-1100-1005, B1-230-1100-1010 NOTE! The operator must read the user manual carefully BEFORE the product is used, to avoid unnecessary risks to the patient and operator. Ver 200319...
-
Page 2: Table Of Contents
The handle and the basket 3. Maintenance & Cleaning Routine checks Cleaning Lubrication Spare parts Accessories Solutions for lubrication, cleaning and disinfecting 4. Technical specification Dimensions Labels on the product 5. EU-Declaration of Conformity 6. Contact details SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 3: Warranty
The user manual contains warnings where there is a risk of personal injury, which should be noted. Improper handling can be fatal. A warning triangle is shown where particularly important information can be found. Warning Triangle SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 4: Function Description
The 10 cm is filled with a mix of two materials, half of which is a pressure-relief material. Central locking easy roll 150 mm castors with one direction locking castor to facilitate transfer. Accessories like IV stand and siderails are available. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 5: Operation
Press the shorter part of the pedal to lower the chassis to a desired height. NOTE! Ensure that no unauthorized persons are in the couch's working range, as a pinch hazard exists when raising and lowering the product. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 6: Adjusting The Backrest
Push the handle in again and push the back rest down. NOTE! Ensure that no unauthorized persons are in the couch's working range, as a pinch hazard exists when raising and lowering the product. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 7: Adjusting The Trendelenburg Position
Lowering the Trendelenburg Press the handle while pushing the top downwards. NOTE! Ensure that no unauthorized persons are in the couch's working range, as a pinch hazard exists when raising and lowering the product. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 8: The Function Of The Castors
2.4 The function of the castors The patient trolley is equipped with central locking castors and a directional-locking function, which helps transporting the chassis straight in long corridors. Unlocked castors Directional locked mode Braked mode SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 9: Siderails
2. Fold the siderails using the other hand in the direction of the arrow. Done! When raising the siderails, make sure its mechanic clicks into position indicating it is fully raised. NOTE! Pinch hazard exists when raising and lowering the side rails. SJÖBLOMS +46 660 842 51 info@sjobloms.com... - Page 10 NOTE! It is not permitted to use the IV stand as a handle when pushing/pulling the patient trolley. Doing so bends the rod, so that the IV stand is impossible to height adjust. SJÖBLOMS +46 660 842 51 info@sjobloms.com...
- Page 11 Emergency patient trolley Operation The handle, the basket 2.7 The handle and basket The handle may be moved backwards and the basket removed if needed. SJÖBLOMS +46 660 842 51 info@sjobloms.com...
-
Page 12: Routine Checks
A solution with high concentration of alcohol can have a drying effect, which means that the imitation leather's properties deteriorate and cracks can form. The manufacturer of the artificial leather recommends DAX or similar, our article no. C068. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 13: Lubrication
1. First lock the castors. 2. Enlist the help of another person and tip the couch on the side, in order to lubricate the moving joints. The spray can in the pictures above indicates where to lubricate. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 14: Spare Parts
Emergency patient trolley Maintenance & cleaning Spare parts 3.4 Spare parts Art no Article G0001-M Gas spring 00027848 Castor 00032427 Castor, directional locking HY001 Hydraulic pump 040-5001 Basket SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 15: Accessories
Emergency patient trolley Maintenance & cleaning Accessories 3.5 Accessories IV stand, siderails SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 16: Solutions For Lubrication, Cleaning And Disinfecting
Emergency patient trolley Maintenance & cleaning Solutions 3.6 Solutions for lubrication, cleaning and disinfection R-1, Cleaning solution for artificial leather 5557001, Lubrication C068, Disinfection solution, DAX Plus Cleaning solution Lubrication Disinfection SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 17: Technical Specification
Height: 53-91 cm Length of backsupport: 75 cm Angle of backsupport: +64° Trendelenburg position angle 15 ° above the horizontal position, -10 ° below. Weight: ca 68 kg Max patient weight: 200 kg SWL: 220 kg SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 18: Labels On The Product
Displays the adjustment of the back rest. There is a label on each side of the chair. Displays the adjustment of the Trendelenburg position. There is a label on each side of the chair. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 19: Eu-Declaration Of Conformity
CE-marking Directive 93/68/EEC Type of equipment: Patient trolley, hydraulically adjustable Manufacturer: Sjöbloms Sjukvårdsutrustning AB Model: B1-230-1100-1005 Product registration number: 13814 Model: B1-230-1100-1010 Product registration number: 13814 The appendix contains documents that have been applied for verification of compliance. - Page 20 SS-EN 60601-1 C1 2010-05-06 SS-EN 60601-1-2 C1 2010-05-06 The following company standards or other technical specifications have been applied: Standards Date Listing LVFS 2009:18 2009-10-08 Relevant requirements of the law on medical technical devices SJÖBLOMS +46 660 842 51 info@sjobloms.com...
- Page 21 Emergency patient trolley Contact information 6. CONTACT INFORMATION SJÖBLOMS Myrängsvägen 8 891 50 Örnsköldsvik Sweden Tel: +46 660 105 80 Fax: +46 660 180 00 E-mail: info@sjobloms.com Web page: www.sjobloms.com SJÖBLOMS +46 660 842 51 info@sjobloms.com...
