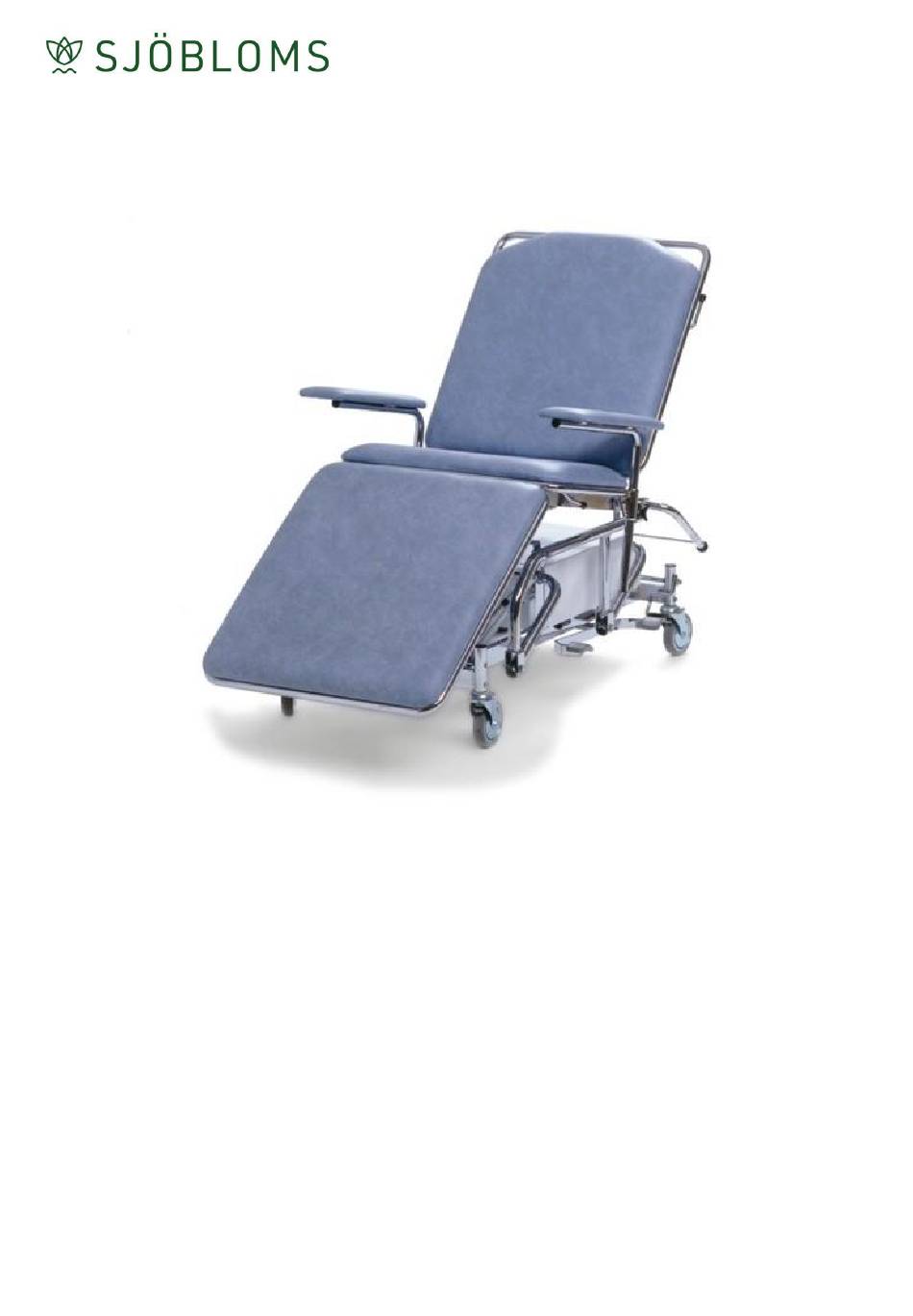

- Page 1 USER MANUAL THREE-SECTIONED EXAMINATION TABLE For models 010-8351, 011-8351 NOTE! The operator must read the user manual carefully BEFORE the product is used, to avoid unnecessary risks to the patient and operator. Version 200318...
-
Page 2: Table Of Contents
Cleaning Lubrication scheme Spare parts, hydraulic Spare parts, electric Accessories Solutions for lubrication, cleaning and disinfecting 4. Technical specification Dimensions Motors and control units Battery backup Labels 5. EU-Declaration of Conformity 6. Contact details SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 3: Warranty
The user manual contains warnings where there is a risk of personal injury, which should be noted. Improper handling can be fatal. A warning triangle is shown where particularly important information can be found Warning triangle SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 4: Function Description
Backrest and Trendelenburg adjusted by gas spring. The cushions are stuffed with foamed plastic and upholstered with imitation leather. 125mm swivel central-locking castors. Various accessories such as neck pillow, armrests etc. are also available. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 5: Operation
NOTE! Be aware of clothes getting stuck on the chassis’ castor tube (A). NOTE! The patient must not sit on the foot or head end side. Misuse causes a risk of tipping over. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 6: Connection
NOTE! Ensure that no unauthorized persons are in the couch's working range, as a pinch hazard exists when raising and lowering the product. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 7: Adjusting The Backrest
The left pair regulates the height of the table. NOTE! Ensure that no unauthorized persons are in the couch's working range, as a pinch hazard exists when raising and lowering the product. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 8: Adjusting The Trendelenburg Position
Ensure that no unauthorized persons are in seat section. The handles are the couch's working range, as a pinch hazard placed on the side of the exists when raising and lowering the product. exam table. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 9: Replacing The Paper Roll
Cover the table with the paper. Fix the paper into place by pressing down the tear-off edge. Tear off the old paper, and the table is ready to be used again. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 10: The Function Of The Castors
3-sectioned exam table Operation Castor functions 2.9 The function of the castors The 3-sectioned table is equipped with 125 mm central-locking castors. Central-locking castors Free castors Braked castors SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 11: Maintenance & Cleaning
Chlorine Chlorine-base solutions are not recommended as a general rule, since it effects products and environment negatively, differently depending on concentration. If chlorine-based solutions are used, always wipe afterwards with damp cloth. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 12: Lubrication Scheme
1. First lock the castors. 2. Enlist the help of another person and tip the couch on the side, in order to lubricate the moving joints. The spray can above indicates where to lubricate. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 13: Spare Parts, Hydraulic
3-sectioned exam table Maintenance and cleaning Spare parts 3.4 Spare parts, hydraulic Art no Article G0001 Gas spring 010-8540 Paper-roll holder including ball 125321630T2LPZ Castor, central-locking 125321630T3LPZ Castor, central-locking, directional-locking HY001 Hydraulic pump SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 14: Spare Parts, Electric
Paper roll holder including ball 125321630T2LPZ Castor, central-locking 125321630T3LPZ Castor, central-locking, directional-locking 491010 Hand control, one motor, Ad-motion HB7160001+20500 Hand control, one motor, Linak HB824500004+11 Hand control, two motors, Linak HB834500003+11 Hand control, three motors, Linak SJÖBLOMS +46 660 842 51 info@sjobloms.com... - Page 15 Foot control, two motors, Linak FS3001 Foot control, three motors, Linak 491008 Motor Timotion 491009 Control unit, Timotion CB9140AE3+000F0 Control unit, Linak 343100+0015004A Lifting motor, Linak 312100+3115004C Backrest motor, Linak 312100+1110004C Trendelenburg motor, Linak 18-19 SJÖBLOMS +46 660 842 51 info@sjobloms.com...
-
Page 16: Accessories
3-sectioned exam table Maintenance & Cleaning Accessories 3.6 Accessories Armrest Armrest, fully adjustable Neck cushion Footrest Accessories not in picture White-coated chassis, Battery backupelectrically adjustable backrest and/or Trendelenburg position. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 17: Solutions For Lubrication, Cleaning And Disinfecting
3-sectioned exam table Maintenance & Cleaning Solutions 3.7 Solutions for lubrication, cleaning and disinfecting R-1, Cleaning solution for artificial leather 5557001, Lubrication C068, Disinfection solution, DAX Plus Cleaning solution Lubrication Disinfection SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 18: Technical Specification
Height: 57-95 cm Length backrest 76 cm, seat section 46 cm, leg section 76 cm. Backrest angle: +68° Trendelenburg angle: -23° Backrest angle: 35° Weight: ca 72 kg Max patient weight 160 kg SWL 180 kg SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 19: Motors And Control Units
At full load, the motors can be used a maximum of 6 minutes/hour. The actuator manufacturer guarantees at least 10 000 cycles performance. Control units Max. usage time 10% or 6 min/h at continuous operation. Complies with directives in accordance with standard EN 60601-1. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 20: Battery Backup
The life expectancy of the batteries is about 500-1200 charge cycles. NOTE! When the battery is depleted, the battery should be brought to a battery collection, if applied in your country, to conserve the environment. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 21: Labels
There is a label on each side of the table. Displays the adjustment of the Trendelenburg position. There is a label on each side of the table. Displays that you can not sit on the leg section. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 22: Eu-Declaration Of Conformity
CE-marking Directive 93/68/EEC Type of equipment: Examination table, hydraulic or electric Manufacturer: Sjöbloms Sjukvårdsutrustning AB Model: 010-8351 Product registration number: 10412 Model: 011-8351 Product registration number: 10413 The appendix contains documents that have been applied for verification of compliance. - Page 23 3-sectioned exam table Contact details 6. CONTACT INFORMATION SJÖBLOMS Myrängsvägen 8 891 50 Örnsköldsvik Sweden Tel: +46 660 842 51 Fax: +46 660 180 00 E-mail: info@sjobloms.com Web page: www.sjobloms.com SJÖBLOMS +46 660 842 51 info@sjobloms.com...
