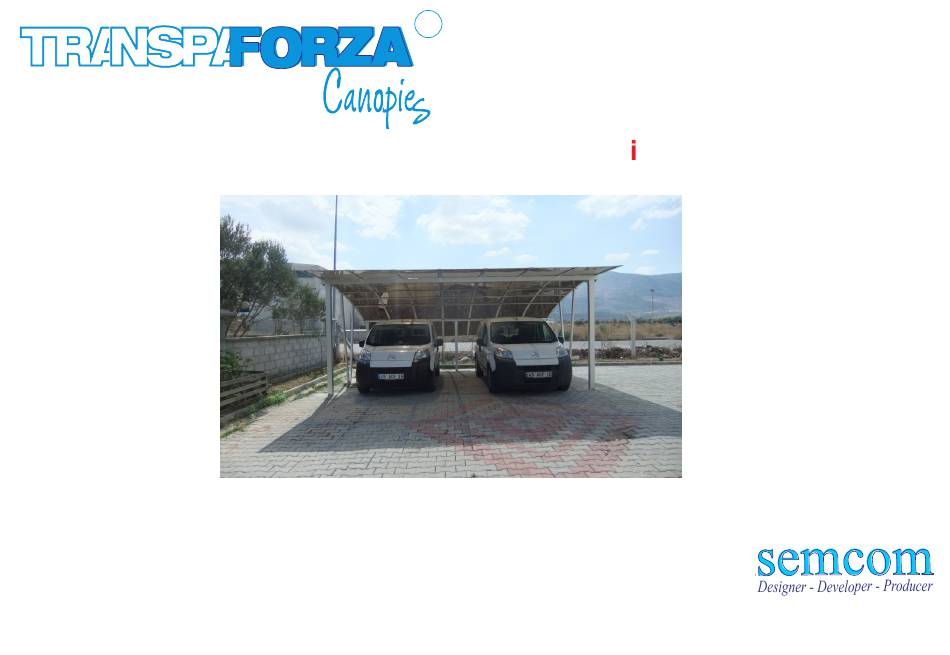

- Page 1 TF - Plus Carport Assembly Please Read Before Installat on www.tfsem.com...
- Page 2 IMPORTANT Please read these nstruct ons carefully before you start to assemble th s carport. PREPARATION OF GROUND Please carry out the steps n the order set out n these nstruct ons. Keep these nstruct ons n a safe place for future reference. Before Start ng Assembly Care and Safety adv ce Th s carport must be assembled on a sol d base,...
- Page 3 50cm 50cm Prepare the fix ng hole to the ground 50x50x50 cm The post colon must be bur ed 50 cm...
- Page 4 100 x100 mm Preparat ons Of , support post profiles 100 x100 mm 1 Front support post; 1 Front post profiles 100 x100 mm Start to assembly the front support colons to the roof support profile 2 M ddle support profiles 80 x 80 mm Connect the profile w th the angel part 3 Back s de profiles 40 x 80 mm...
- Page 5 INSTALLATION OF ROOFS PROFILES TO THE SUPPORT POST For the connect ons of roof profile to the back profile, For the connect ons of roof profile The roof profile are connected first you connect the alum n um roof holder profile to the m ddle support you place the to the front post profile d rectly to the back support profile , fix them, w th the screw...
- Page 6 ALIGNMENT OF TF PLUS ON THE HOLLES Assembly three profile to the front m ddle and back support profile Once you have gauged the TF PLUS fill w th concrete the holes...
- Page 7 ASSEMBLY OF ALL ROOF PROFİLES When the hole w th concrete s completely dr ed , nstall all the roof profile w th the same method...
- Page 8 ASSEMBLY ROOF SHEETS Roof Profile...
- Page 9 ASSEMBLY OF END SIDE ROOF SHEETS WITH END CAPS PROFILES Insert and squeeze and fix the end part of roof sheets w th the end frame profiles After of holle placemet of end frame profile F x the profile by squeez ng the rubber close all the frame profile w th the end roof profile and screw w th the screw .V5...
- Page 10 ASSEMBLY OF FRONT SIDE ROOF SHEETS WITH END CAPS PROFILES Insert and squeeze and fix the end part of roof sheets w th the end frame profiles to the front of sheets F x the profile by squeez ng the rubber After of holle placemet of end frame profile close all the frame profile w th the end roof profile from the front part and fix w th the screw V5...
- Page 11 CONNECTIONS OF ROOF SUPPORT PROFILES Assembly the roof support profile to every roof profile w th the screw V6 Close all alum n um profiles w th the caps...
