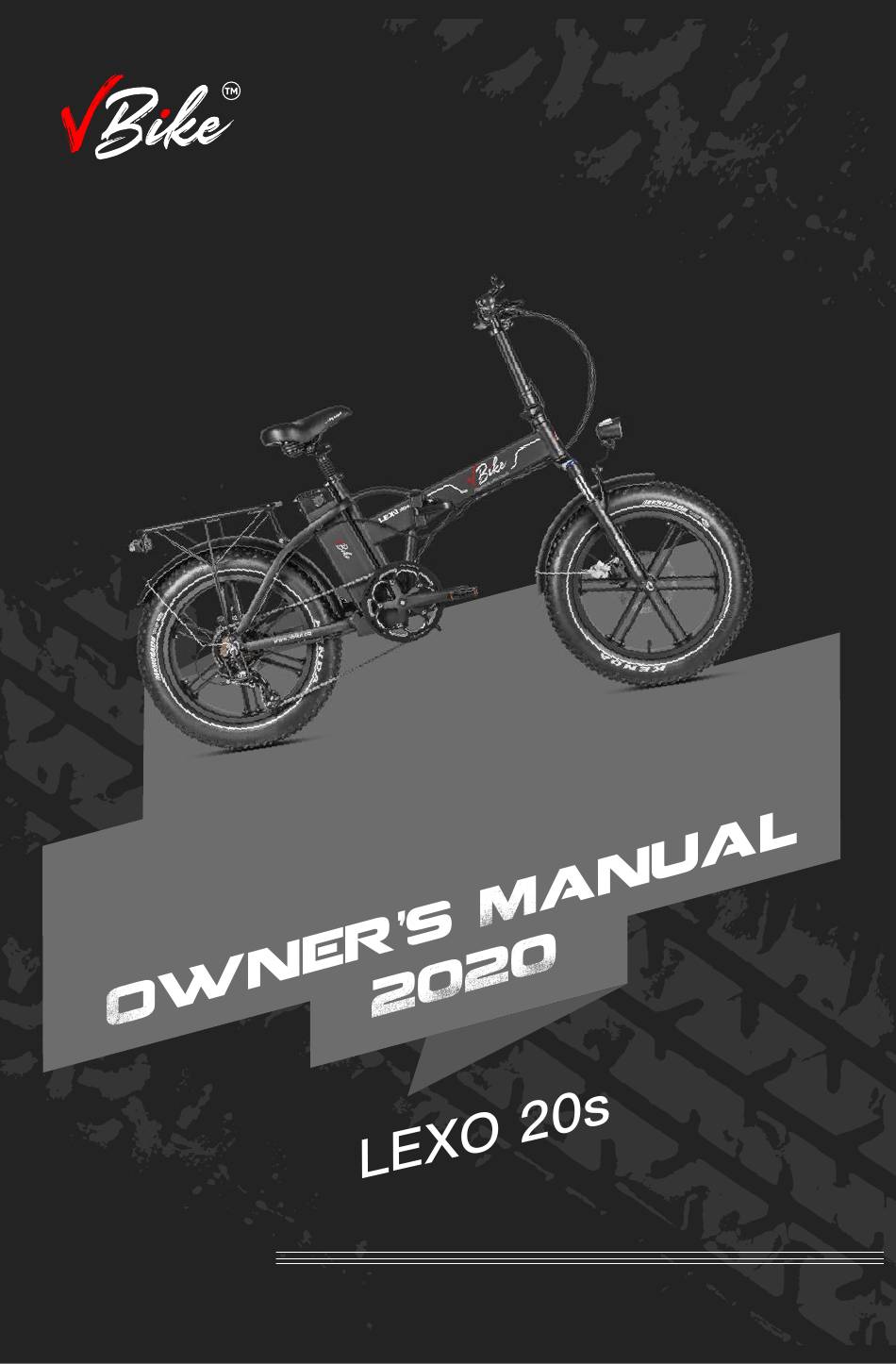

- Page 1 Canada I K E www.vbike.ca...
- Page 2 Contents WELCOME VBIKE MANUAL SAFETY CHECK 10-11 PRE-RIDE LEXO 20s & E-PAS SYSTEM INSPECTION COMPARING TABLE 12-15 16-17 18-20 UNBOXING BATTERY BATTERY CHARGING & WARNING 22-26 27-29 OPERATING YOUR VBIKE COMPONENTS LCD DISPLAY NEW EBIKE FUNCTIONS 32-33 MAINTAINING SIZING WARRANTY...
- Page 3 Congra tula tions on Your Purchase of vBike vBike tries all its best to offer you an enjoyable experience with your electric bike It is necessary to read this manual carefully before using your ebike. It will help you keep your ebike in good condition.
- Page 4 within.
- Page 5 Safety Check Read this entire manual before assembling or using your new vBike electric bike. Do not disassemble or replace the original vBike electrical components on your bike. Doing so will invalidate your warranty and could put you in danger.
- Page 6 Canada Pre-ride Inspection Before each ride it is necessary to inspect your ebike to ensure there are no loose fasteners or accessories. If you are not sure how to conduct a complete check of the condition of your ebike before every ride, you should consult a certified, reliable bike mechanic for assistance.
- Page 7 Canada Tips For Riding Safe Electric bike riders need to become adapted to the power controls before riding. So, you CAUTION should ride your new bike in an open area and set the power assist level to “0”. When you feel self-assured operating your bike, you can increase the power assist gradually.
- Page 8 You are responsible for your own actions while using an electric bike. MAPTEC Inc. (vBike) is not responsible/nor liable for any accidents or injuries or death (whether caused by you or others) that may occur during your use.
- Page 9 Canada vBike Canada LEXO 20 TEKTRO Hydraulic 27.5" X 18.5" Foldable Disk Brake E-PAS Technology LG 48v, 14Ah/17Ah/20Ah SHIMANO 7 Speed 6-8h 14-34 Teeth Suspension Seat Post Double Shoulder Pressure Shock Absorber Optional, minimum Rider Hight 5.4ft 5.0 - 6.8ft...
- Page 10 Models LENO 20 LEVO 20 Battery LG 48v 10.4Ah 10.4Ah 10.4Ah/14Ah 10.4Ah/14Ah 500w/800w 500w/800w vBike Hub Motor (Min/Max) E-PAS Suspension Front Fork Suspension Seat Post TEKTRO Brake System Mechanical Mechanical (With Motor Inhibitor) (With Motor Inhibitor) SHIMANO Gear System 7 Speed 14-34 Teeth...
- Page 11 Canada LEVO 20s LEXO 20 LEXO 20s 10.4Ah/14Ah 10.4Ah/14Ah 14Ah/17Ah/ 20Ah 14Ah/17Ah/ 20Ah 14Ah/17Ah/ 20Ah 14Ah/17Ah/ 20Ah 500w/800w 500w/800w 500w/800w Mechanical Hydraulic Hydraulic (With Motor Inhibitor) (With Motor Inhibitor) (With Motor Inhibitor) 7 Speed 14-34 Teeth 7 Speed 14-34 Teeth 7 Speed 14-34 Teeth 4"...
- Page 12 Canada E-PAS POWER ASSIST ANCE SYSTEM Energy Saving (more than 30%) 55 - Normal 14Ah eBike 75km 90km Energy Longer Less Upgraded Saving Range Money E-PAS 14Ah vBike 95km 120km The electricity recharged by gliding 1 km downhill can be used for 2 to 3 km...
- Page 13 Canada SUPPORTING TEST DA T A Intelligent Driving / Power Power Bidirecational Generation Switch Generation > 60% Circulation DRIVE MOTOR Intelligent Control, Safe Protection E-PAS E-PAS Battery Motor Automatic Rectification, Intelligent Boost Generator E-PAS ELECTRIC BIKES (ECO RANGE TEST DATA)
- Page 14 Before riding your ebike, remove everything from the box and make sure you received all above listed items. If anything is missing or damaged do not hesitate to contact support@vbike.ca for assistance. For video instructions on how to unbox and unfold your vbike please visit CAUTION www.vbike.ca/support...
- Page 15 You receive your vBike electric bikes fully assembled. You just need to make sure everything is properly secured. vBike electric bike folds at the handlebars and in the center of the frame. First Step: Unfolding the Handlebar Pull the handlebars to...
- Page 16 Note: For folding the bike: Please pull the toggle outwards and lower it to its folding position PREPARING TO RIDE Be sure you have read and understood the vBike manual carefully and completely. Do pre-ride Inspection (as mentioned in Pre-Ride Inspection Section) and before riding make sure all components are properly secured otherwise serious harm or death could happen.
- Page 17 Canada To adjust the angle of your seat, first loosen the nuts on both sides of the seat, then move the seat to the desired angle and after that tighten the nuts. You can see the nuts in the picture.
- Page 18 Canada Ba ttery Operating Your Battery Your bike comes with a 48V 14Ah / 17Ah lithium ion battery (optional) with LG cells. Key operating features of the battery can be found on this page. Your bike’s battery comes with a set of keys that are used to keep it LOCKED/UNLOCKED to the frame.
- Page 19 Canada How to replace your ba ttery Push up the lifting handle and lift up the saddle Open the seat post clamp Insert the battery in the battery rack Lock the battery with the keys...
- Page 20 BA TTERY CHARGING vBike electric bike comes with charged battery, however prior to your first ride, that is a good idea to plug your battery in when you first receive your ebike to ensure it is fully charged. You can charge the battery while it is attached or detached from the ebike.
- Page 21 Do not charge the battery in a wet and humid place or anywhere exposed to strong sunlight and make sure there is no dirt or debris near when using the charger. Never charge the battery with chargers other than the supplied charger you received from vBike. Avoid leaving the battery unattended while charging.
- Page 22 Canada Extending Range How you can get the maximum range out of your ebike: Pedal when starting from a standstill Ride in a lower level of pedal assist Use lower assist levels and pedal when climbing hills Set your max speed lower than 32km/h (20mph) on the LCD display Rough Range Estimates The range the ebike can go on a single battery are affected by many factors such as rider weight,...
- Page 23 Please read "Safety Check" and "Pre-ride Inspection" sections of this manual carefully." CAUTION How to Turn ON/OFF vBike Your vBike is equipped with an Electronic Lock. It brings you more convenient to turn your ebike power ON/OFF. - For power ON/OFF your vBike, please push remote control button.
- Page 24 Canada VBIKE COMPONENTS...
- Page 25 7 speed gear system The vBike electric bikes is equipped with a 7 speed Shimano freewheel which provide a convenient level of effort and pedaling speed during different terrains. First gear is the lowest gear of this drivetrain and 7th gear is the highest gear. By using lowest gear (the largest sprocket), you would be able to pedal up hills easier.
- Page 26 Canada CONTROL PANEL & THROTTLE PAS LEVEL Up - Click for + Down - Click for - HEADLIGHT CONTROL PANEL & Short Press HEADLIGHT THROTTLE Key to Turn ON / OFF TURN ON / OFF- long press M...
- Page 27 Short press the headlight key again to switch OFF the lights. The vBike electric bikes come with high quality, double LED wide angle headlight and integrated rear lights with brake light. Please Turn ON the lights when riding specially at night or in low visibility...
- Page 28 HYDRAULIC DISC BRAKES vBike is equipped with mechanical disc brakes in LENO 20, LEVO 20 and LEVO 20s and hydraulic disc brakes in LEXO 20 and LEXO 20s. Mechanical disc brakes make you be able to stop quickly even at high speed. In comparison to rim brake, mechanical disc brakes allow the rider to apply much less force to the lever before the bike comes to a stop.
- Page 29 Canada LCD Displa y Functions Battery Level Indicator Bar Light On/Off Indicator Motor Power Indicator Speedometer in KM/H or MPH Walk Power Assist Pedal assist (PAS) Level Indicator TRIP(Trip)- Odometer (ODO)- Max speed(MAX) - Average speed(AVG) Current(Ah) Kilometer and Mile...
- Page 30 Canada Opera ting the LCD Displa y Turning the ebike ON/OFF - Hold the mode button until the display turns ON Increase Pedal Assist Level - Press up arrow button Decrease Pedal Assist Level - Press down arrow button Turn ON/OFF front /rear Lights - Short press the headlight key to turn ON the headlight and taillight, repeat to turn the lights OFF.
- Page 31 32 km/h (20mph) DO NOT CHANGE THE TOP SPEED The vBike ships to all customers being capable of a maximum of 32 km/h (20 miles per hour). In all provinces in Canada electric assist bicycles can have a maximum speed of 32 km/h (20mph) with 500 watts power on motor. It is illegal...
- Page 32 Canada Maint aining Your EBIKE • Store your ebike in a clean dry place. • Clean your ebike after riding in a wet condition and store in a dry place to avoid rust and corrosion. • Always remove the battery when cleaning or servicing your ebike.
- Page 33 Canada SIZING Max Load Capacity (Rider + Rear Rack) 5.0-6.8 With Regular Seatpost 5.4-6.8 With Suspension Seatpost Rider Height Get it folded t ake it 38.58 “ Length 18.9 “ Width “ 25.2 Height...
- Page 34 Always keep a record of your serial number (Frame No.) upon receiving your bike because it could be needed in the future. This warranty only applies to the original owner of a vBike electric bikes. vBike should be operated in accordance with the vBike Owner Manual. vBike warrants to the original registered purchaser that vBike shall be free from all defects in material and workmanship for a period of 12 months from the date of shipment, when used for the purpose intended.
- Page 35 In no event vBike is responsible for any direct,...
- Page 36 Canada MAPTEC Inc. (vBike) 21 Bradwick Dr. Unit 10, Concord, ON, Canada L4K1K6 Toll Free: 1 (866) 369-5545 E-mail: support@vbike.ca Website: www.vbike.ca Ver.: 2.6.1...
