VBike LEVO 20 Owner's Manual

Hide thumbs Also See for LEVO 20:

Advertisement

Quick Links

Download this manual
vBike Canada
vBike Canada
V B
V B
V B
C A
www.vbike.ca
I K E
I K E
I K E
N A
D A

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEVO 20 and is the answer not in the manual?

Questions and answers

Related Manuals for VBike LEVO 20

Summary of Contents for VBike LEVO 20

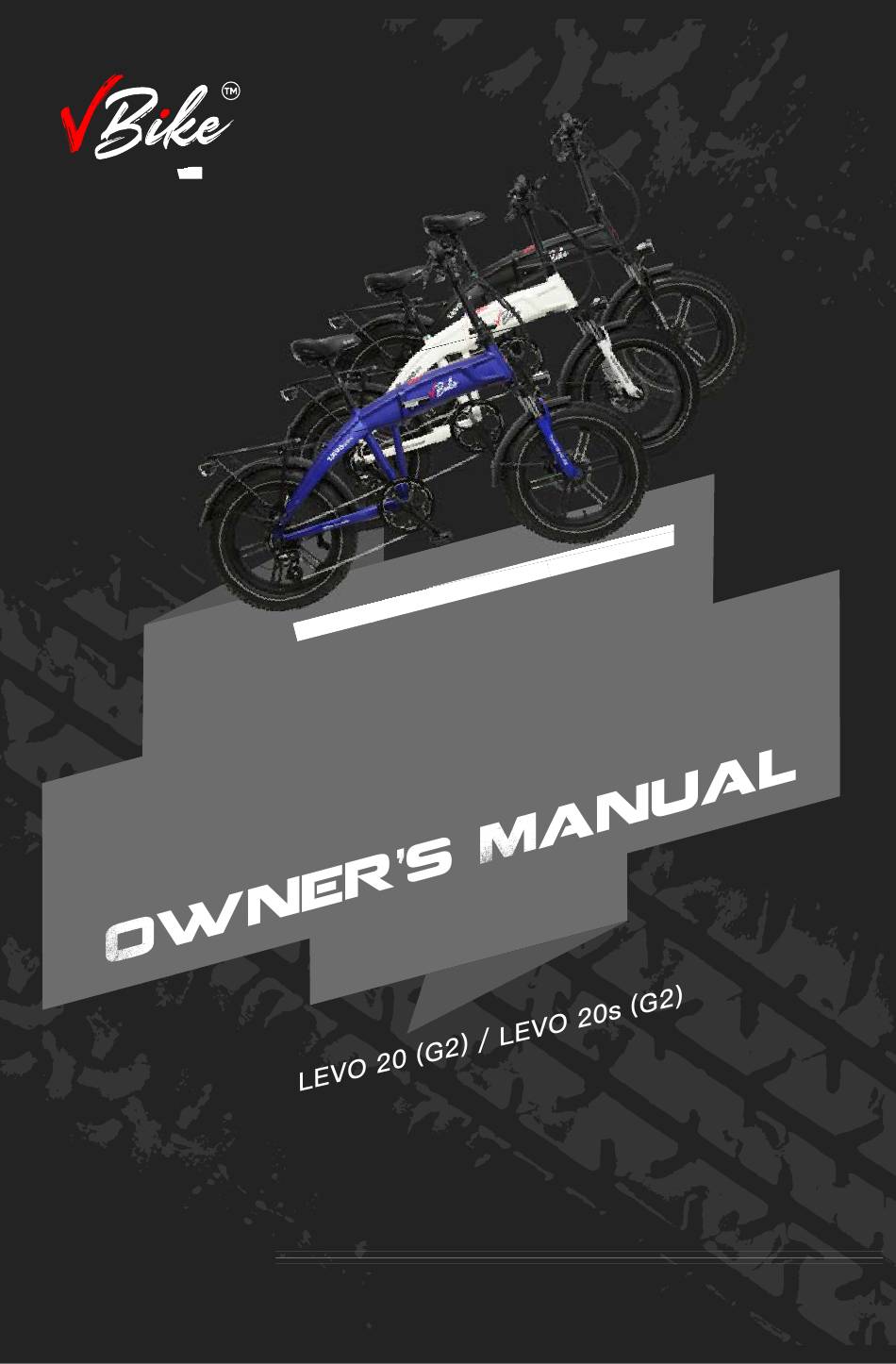

  • Page 1 Canada vBike Canada I K E I K E I K E www.vbike.ca...
  • Page 2 Canada...
  • Page 3 Contents WELCOME VBIKE MANUAL SAFETY CHECK 10-14 PRE-RIDE VBIKE MODELS UNBOXING, FOLDIND INSPECTION & UNFOLDING 16-18 BATTERY TAKING BATTERY CHARGING OPERATING YOUR OUT & REPLACING & WARNING NEW EBIKE 20-24 25-27 VBIKE LCD DISPLAY MAINTAINING COMPONENTS FUNCTIONS YOUR EBIKE 29-30 31-32 SIZING &...
  • Page 4 Congra tula tions on Your Purchase of vBike vBike tries all its best to offer you an enjoyable experience with your electric bike It is necessary to read this manual carefully before using your ebike. It will help you keep your ebike in good condition.
  • Page 5 within.
  • Page 6 Safety Check Read this entire manual before assembling or using your new vBike electric bike. Do not disassemble or replace the original vBike electrical components on your bike. Doing so will invalidate your warranty and could put you in danger.
  • Page 7 Canada Pre-ride Inspection Before each ride it is necessary to inspect your ebike to ensure there are no loose fasteners or accessories. If you are not sure how to conduct a complete check of the condition of your ebike before every ride, you should consult a certified, reliable bike mechanic for assistance.
  • Page 8 Canada Tips For Riding Safe Electric bike riders need to become adapted to the power controls before riding. So, you CAUTION should ride your new bike in an open area and set the power assist level to “0”. When you feel self-assured operating your bike, you can increase the power assist gradually.
  • Page 9 You are responsible for your own actions while using an electric bike. MAPTEC Inc. (vBike) is not responsible/nor liable for any accidents or injuries or death (whether caused by you or others) that may occur during your use.
  • Page 10 Canada LEVO 20 NUTT Mechanical 27.5" X 18.5" Foldable Disk Brake Samsung 48v 15Ah Bafang Motor, 500w SHIMANO 7 Speed 4-5h 12-32 Teeth Double Shoulder Pressure 32 km/h Shock Absorber 5.2 - 6.8ft (Without suspension post) 5.6 - 6.8ft (With suspension post)
  • Page 11 Canada LEVO 20 LEVO 20 NUTT Hydraulic 27.5" X 18.5" Foldable Disk Brake Samsung 48v 15Ah Bafang Motor, 500w SHIMANO 7 Speed 4-5h 12-32 Teeth Double Shoulder Pressure 32 km/h Shock Absorber 5.2 - 6.8ft (Without suspension post)
  • Page 12 Canada Models LEVO 20 LEVO 20s 15Ah 15Ah Samsung Hub Motor (Min/Max) 500w/800w 500w/800w Motor Bafang Bafang Suspension Front Fork Mechanical Hydraulic NUTT Brake System (With Motor Inhibitor) (With Motor Inhibitor) SHIMANO Gear System 7 Speed 12-32 Teeth...
  • Page 13 CAUTION and Power limited to 20mph/32kph for on-road legal use. Riders may unlock the speed limit on the display for off-road use. MAPTEC Inc. (vBike) will not be held liable for riders that ride illegally configured bikes on-road. For video instructions on how to fold and unfold your vbike and other technical videos please visit www.vbike.ca/technical-video,, and follow vBike Canada Youtube Channel.
  • Page 14 Canada UnFolding the Bike vBike electric bike folds at the handlebars, pedals and in the center of the frame. First Step: Unfolding The Frame U-Lock Stand near where the battery is exposed. Grab the suspension fork and rear end of the bike, lift the bike slightly off...
  • Page 15 Canada Folding the Bike First Step: Folding the Pedals Push the pedal inwards, then lower it to the folding position. After folding the pedal make sure to hear the click. In this way, the pedal is locked into a folded position.
  • Page 16 Canada PREPARING TO RIDE Be sure you have read and understood the vBike manual carefully and completely. Do pre-ride Inspection (as mentioned in Pre-Ride Inspection Section), and before riding make sure all components are properly secured otherwise serious harm or death could happen. This includes all parts of ebike such as brake system, lights, tires, fenders, pedals, handlebars, handlebar clamp, cranks, seat, and seatpost clamp.
  • Page 17 Canada To adjust the angle of your seat, first loosen the nuts on both sides of the seat, then move the seat to the desired angle and after that tighten the nuts. You can see the nuts in the picture.
  • Page 18 Canada How To T AKE Out Your Ba ttery 2. Insert your battery key in battery key 1. Turn OFF your ebike and fold it. hole and turn it into the unlock position. 3. Take Out the battery with caution.
  • Page 19 BA TTERY CHARGING • vBike electric bike comes with charged battery, however prior to your first ride, that is a good idea to plug your battery in when you first receive your ebike to ensure it is fully charged. You can charge the battery while it is attached or detached from the ebike.
  • Page 20 Do not charge the battery in a wet and humid place or anywhere exposed to strong sunlight and make sure there is no dirt or debris near when using the charger. Never charge the battery with chargers other than the supplied charger you received from vBike. Avoid leaving the battery unattended while charging.
  • Page 21 Canada Extending Range How you can get the maximum range out of your ebike: Pedal when starting from a standstill Ride in a lower level of pedal assist Use lower assist levels and pedal when climbing hills Set your max speed lower than 32km/h (20mph) on the LCD display Rough Range Estimates The range the ebike can go on a single battery are affected by many factors such as rider weight,...
  • Page 22 Please read "Safety Check" and "Pre-ride Inspection" sections of this manual carefully." CAUTION How to Turn ON/OFF vBike -To power ON/OFF the Bike, please use power key on the right side of your handlebar. -To turn ON/OFF the LCD display, please use the power button that is located on the button pad on the left handlebar.
  • Page 23 Canada VBIKE COMPONENTS COMPONENTS LEVO 20 Dispaly LEVO 20s Display...
  • Page 24 7 speed gear system The vBike electric bikes is equipped with a 7 speed Shimano freewheel which provide a convenient level of effort and pedaling speed during different terrains. First gear is the lowest gear of this drivetrain and 7th gear is the highest gear. By using lowest gear (the largest sprocket), you would be able to pedal up hills easier.
  • Page 25 Canada CONTROL PANEL & THROTTLE HEADLIGHT Press HEADLIGHT Key to Turn ON / OFF Turning Signal Turning Right Power Button Turning Left TURN ON / OFF Electric Bell...
  • Page 26 Press the Headlight key again to switch OFF the lights. The vBike electric bikes come with high quality, LED wide angle headlight and integrated rear lights with brake light. Please Turn ON the lights when riding specially at night or in low visibility situations.
  • Page 27 & HYDRAULIC DISC BRAKES vBike is equipped with mechanical disc brakes in LEVO 20 and hydraulic disc brakes in LEVO 20s. Mechanical disc brakes make you be able to stop quickly even at high speed. In comparison to rim brake, mechanical disc brakes allow the rider to apply much less force to the lever before the bike comes to a stop.
  • Page 28 Canada LCD Displa y Functions LEVO 20s APT TFT 850c Color LCD Find more information about LEVO 20s Display on APT TFT 850C Instructions Manual .
  • Page 29 Canada LCD Displa y Functions LEVO 20 C600E-LCD Find more information about LEVO 20 Display on C600E-LCD Instructions Manual .
  • Page 30 All vBike models are Class 2 electric bike and are delivered with Speed limit and Power limited to 20mph/32kph for on-road legal use. Riders may unlock the speed limit on the display for off-road use. MAPTEC Inc. (vBike) will not be held liable for riders that ride illegally configured bikes on-road.
  • Page 31 Canada Maint aining Your EBIKE Your ebike is a combination of mechanical and electrical parts. If you want to ride your bike safe and reduce the risk of future repairs, you need to maintain your ebike regularly and properly.
  • Page 32 Canada SIZING Max Load Capacity Max Load Capacity (Rider + Rear Rack) (Rider + Rear Rack) 5.2-6.8 5.2-6.8 With Regular Seatpost With Regular Seatpost 5.6-6.8 5.6-6.8 With Suspension Seatpost With Suspension Seatpost Rider Height Get it folded t ake it “...
  • Page 33 Canada SIZE CHART...
  • Page 34 Always keep a record of your serial number (Frame No.) upon receiving your bike because it could be needed in the future. This warranty only applies to the original owner of a vBike electric bike and under no circumstances shall the Limited Warranty apply to any subsequent owner or other transferee of the ebike.
  • Page 35 In no event vBike is responsible for any direct,...
  • Page 36 Canada MAPTEC Inc. (vBike) 21 Bradwick Dr. Unit 10, Concord, ON, Canada L4K1K6 Toll Free: 1 (866) 369-5545 E-mail: support@vbike.ca Website: www.vbike.ca Ver.: 2.6.14...

This manual is also suitable for:

Levo 20s
