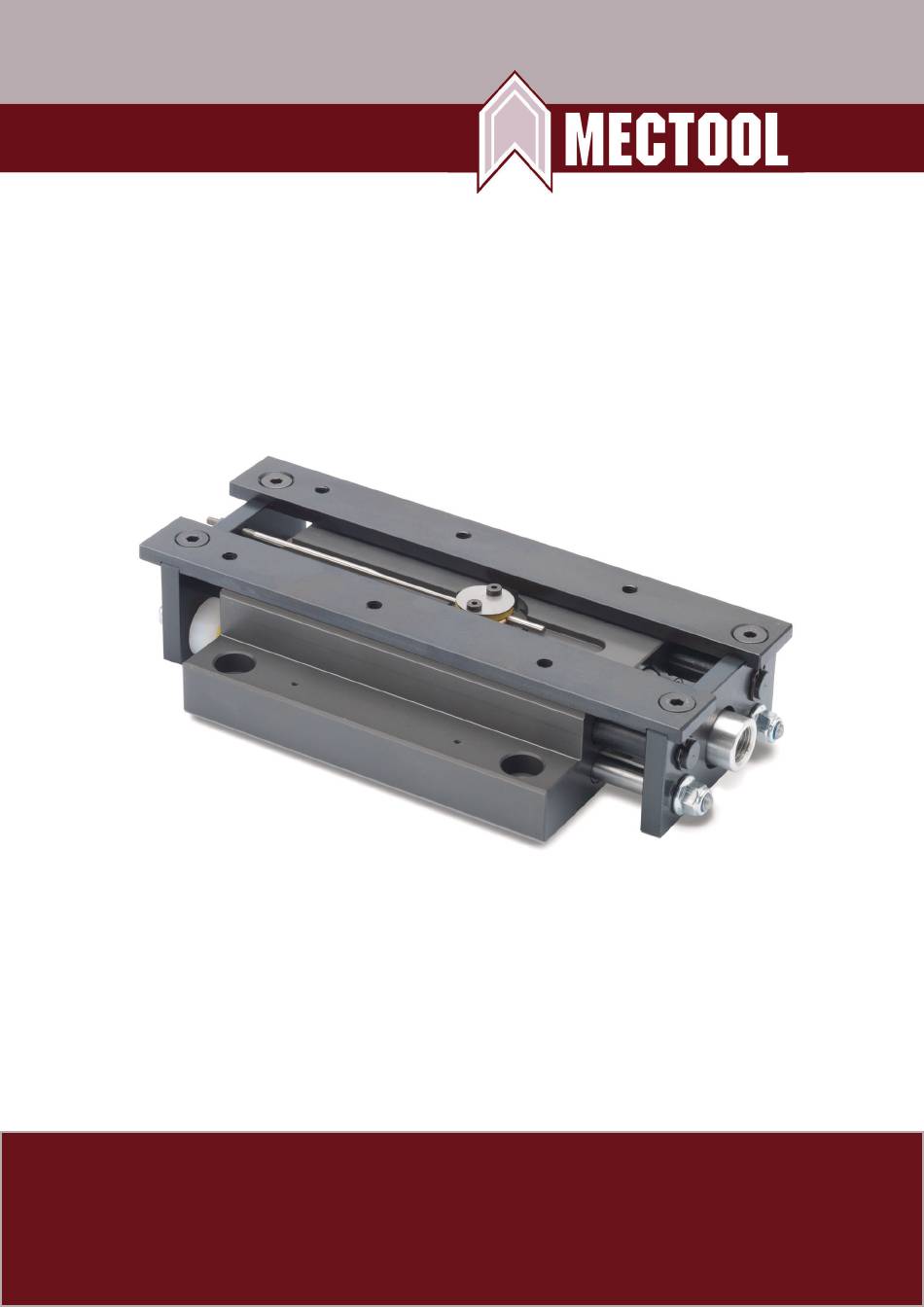

- Page 1 MADE IN SWEDEN FRICTION TRANSPORTER TP 10 INSTALLATION & SERVICE MANUAL 2021-01-18 Original Instructions...
-
Page 2: Installation
4. Connect the air line with flexible poly-flow tubing into the can be adjusted by turning the screw or knob clockwise to threaded inlet. On model TP3 use 1/4” tubing for 1/8” NPT. decrease the movement on the models TP3, TP10 and TP40. - Page 3 TP 10 Service Please note that some parts may not be available because they are not field replaceable. If this is the case, a subassembly must be used. Some parts are only available as a subassembly and cannot be purchased individually. Check the spare parts reference lists for details.
- Page 4 TP 10 Dimensional drawing...
- Page 5 TP 10 Spare parts...
- Page 6 TP 10 Spare parts Part No. Description Part No. Description 3-325 O-ring 10-319 O-ring 10-106 Composite bearing 10-320 O-ring 10-201 Rear holder 10-407 O-ring 10-202 Front holder 10-413 Felt 10-203 Guide column 10-414 Circlip 10-204 Tray holder (L + R) 40-035 O-ring 10-209...
- Page 7 10-601 Air inlet Part No. Description Part No. Description 10-102 Air inlet * 40-035 O-ring * Not sold separately...
- Page 8 10-602 Valve rod Part No. Description Part No. Description 3-325 O-ring 10-310 Valve rod * * Not sold separately...
- Page 9 10-603 Air regulator Part No. Description Part No. Description 10-318 O-ring 10-404 Washer * 10-401 Air regulator * 10-408 Screw 10-403 Urethane Washer * * Not sold separately...
- Page 10 10-604 Air regulator rod & nut Part No. Description Part No. Description 10-321 10-402 Air regulator rod * * Not sold separately...
- Page 11 10-605 Speed adjustment screw Part No. Description Part No. Description 10-405 Speed adjustment screw * 10-407 O-ring * Not sold separately...
- Page 12 10-606 Piston Part No. Description Part No. Description 3-325 O-ring 10-314 Spring 10-302 Piston * 10-320 O-ring 10-310 Valve rod 10-324 Extension 10-311 Valve disc 10-325 Screw 10-313 Spring * Not sold separately...
- Page 13 TP 10 Repair kit Part no. 10-001...
- Page 14 TP Technical data TP 3 Air pressure 4 - 5,5 bar Air consumption 5 l/min Length of stroke 23 mm Rate of feed 8 - 10 m/min Max gradient on feed chute 8 ° Sound level 56 dB (A) Weight 1,5 kg Transportation capacity 3 kg...
-
Page 15: Contact Information
Transporter is functioning according to specifications. All items with the warranty period are evaluated by technicians to verify warranty eligibility. All Transporters repaired by Mectool receive a new three month manufacturer’s warranty period (wear parts excluded). Mectool Sweden AB P.J.
