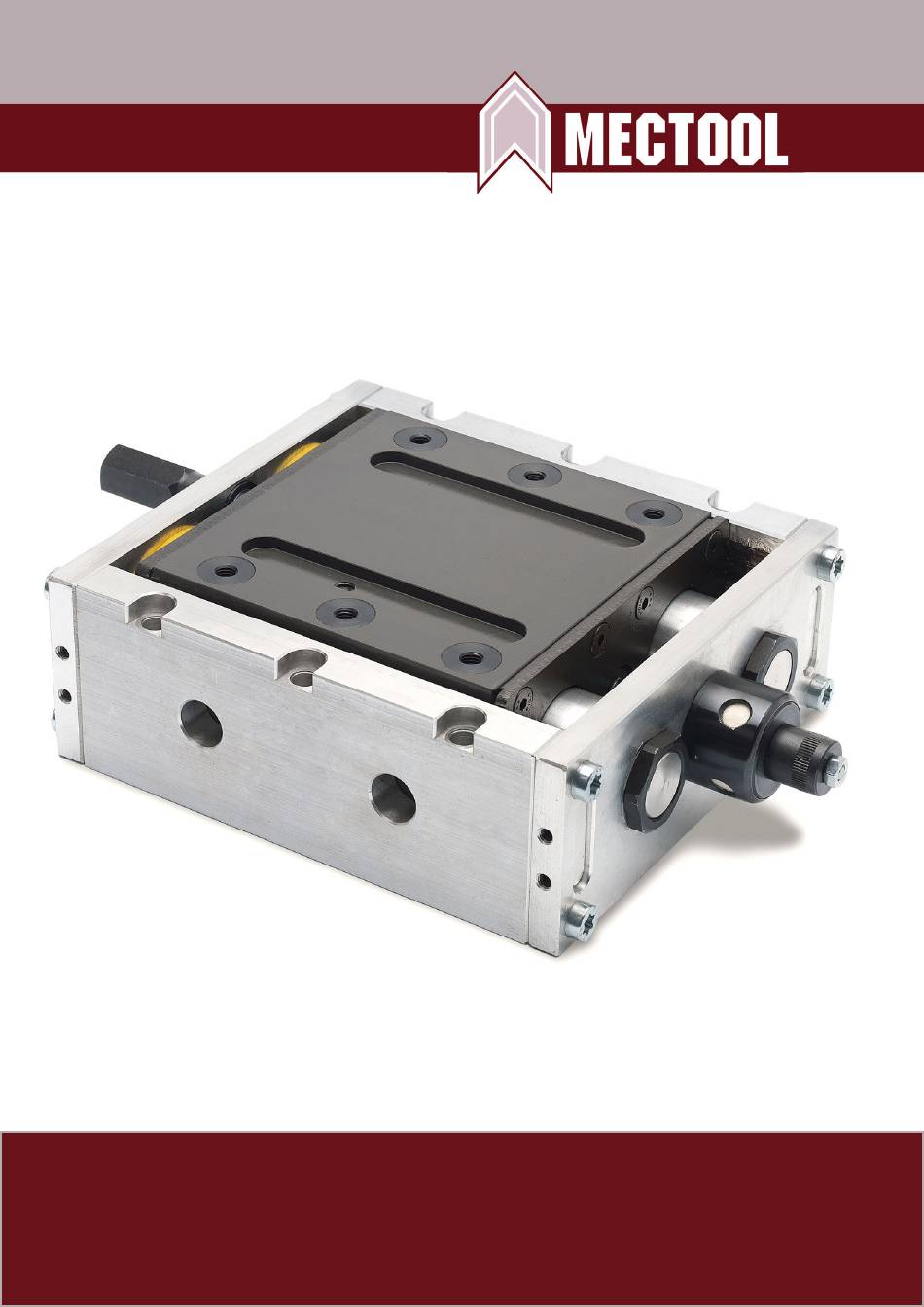

- Page 1 MADE IN SWEDEN FRICTION TRANSPORTER TP 140 INSTALLATION & SERVICE MANUAL 2021-01-18 Original Instructions...
-
Page 2: Installation
4. Connect the air line with flexible poly-flow tubing into the can be adjusted by turning the screw or knob clockwise to threaded inlet. On model TP3 use 1/4” tubing for 1/8” NPT. decrease the movement on the models TP3, TP10 and TP40. - Page 3 TP 140 Service Please note that some parts may not be available because they are not field replaceable. If this is the case, a subassembly must be used. Some parts are only available as a subassembly and cannot be purchased individually. Check the spare parts reference lists for details.
- Page 4 TP 140 Dimensional drawing...
- Page 5 TP 140 Spare parts...
- Page 6 TP 140 Spare parts Part No. Description Part No. Description 3-407 O-ring 70-436 Screw 10-210 Screw 140-105 Mounting insert 10-319 O-ring 140-302 Speed adjustment rod 10-320 O-ring 140-308 Valve 40-010 Valve disc 140-326 Sleeve 40-045 Spring 140-401 Rear holder 40-047 Spring 140-402 Front holder...
- Page 7 70-601 Rear piston Part No. Description Part No. Description 40-047 Spring 70-217 Circlip 70-211 Rear piston * 70-253 Spring guide 70-215 Cup seal * Not sold separately...
- Page 8 70-602 Front piston Part No. Description Part No. Description 40-047 Spring 70-217 Circlip 70-212 Front piston * 70-254 Spring guide 70-215 Cup seal * Not sold separately...
- Page 9 70-603 Valve rod Part No. Description Part No. Description 3-407 O-ring 70-251 Valve rod * * Not sold separately...
- Page 10 140-601 Rear piston Part No. Description Part No. Description 70-215 Cup seal 140-211 Rear piston * * Not sold separately...
- Page 11 140-602 Front piston Part No. Description Part No. Description 70-215 Cup seal 140-212 Front piston * * Not sold separately...
- Page 12 140-603 Silencer Part No. Description Part No. Description 140-324 Bushing * 140-504 Felt * 140-502 Bushing * 40-045 Spring 140-503 Silencer * * Not sold separately...
- Page 13 140-604 Ball guide Part No. Description Part No. Description 70-153 Ball retainer 70-435 Guide column * 70-154 Ball 70-437 Ball guide * 70-426 Ball guide * 140-428 Screw 70-428 Screw * Not sold separately...
- Page 14 TP 140 Repair kit Part no. 140-001...
- Page 15 TP Technical data TP 3 Air pressure 4 - 5,5 bar Air consumption 5 l/min Length of stroke 23 mm Rate of feed 8 - 10 m/min Max gradient on feed chute 8 ° Sound level 56 dB (A) Weight 1,5 kg Transportation capacity 3 kg...
-
Page 16: Contact Information
Transporter is functioning according to specifications. All items with the warranty period are evaluated by technicians to verify warranty eligibility. All Transporters repaired by Mectool receive a new three month manufacturer’s warranty period (wear parts excluded). Mectool Sweden AB P.J.
