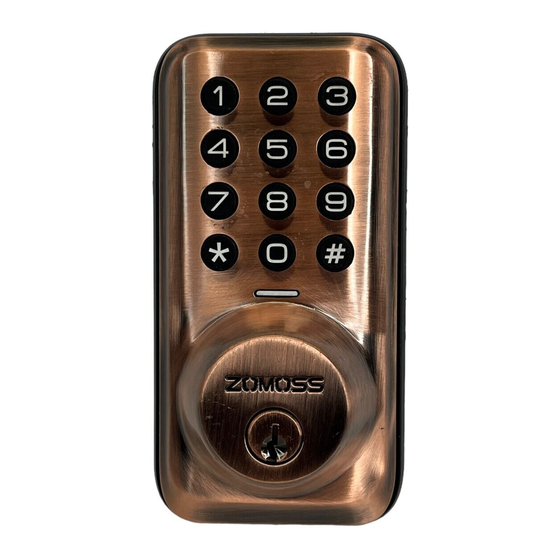

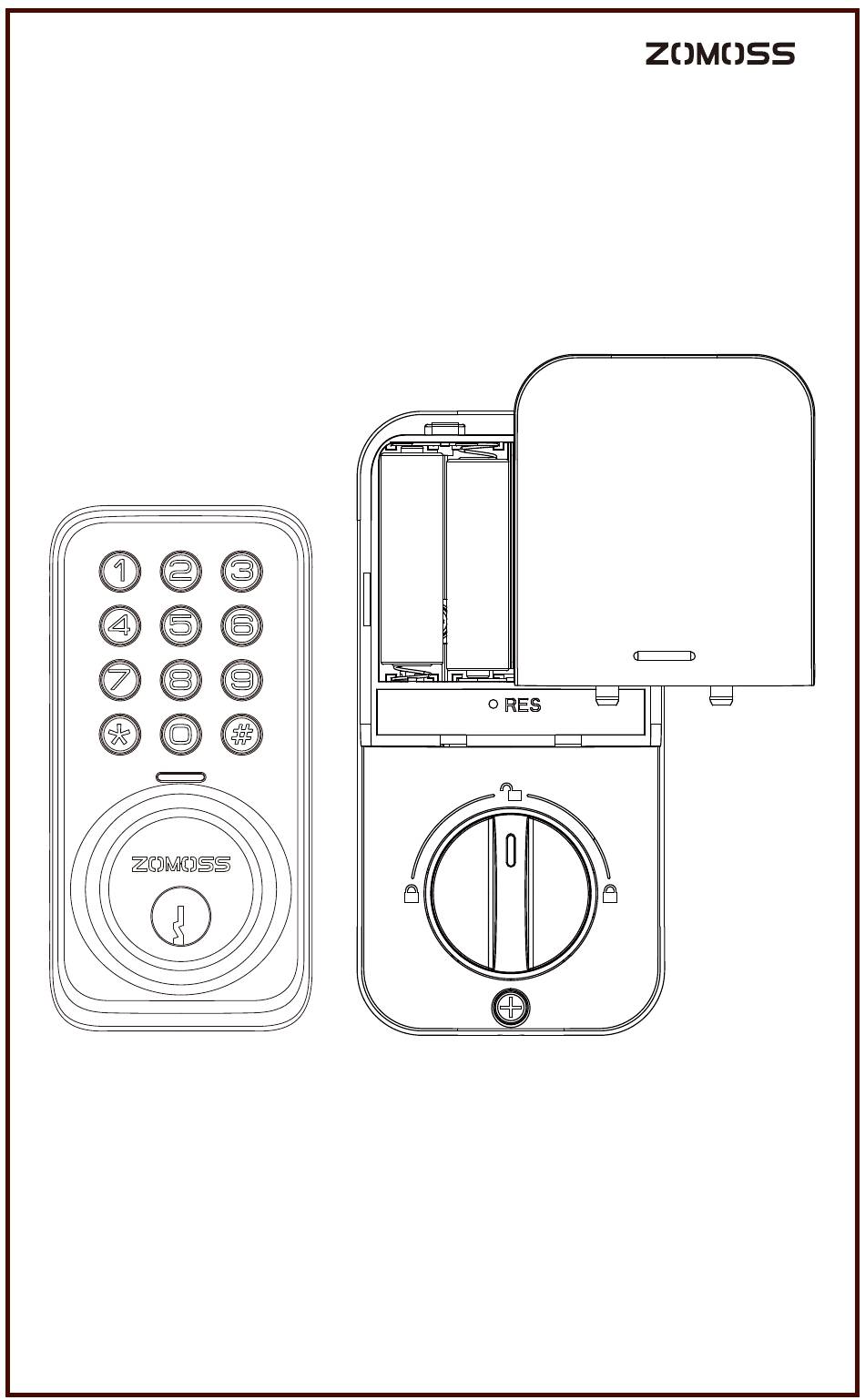

- Page 1 PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLATION AND OPERATION. Zomoss ZS01 Installation Guide...
-
Page 2: Tool Required
If any parts are missing or damaged, please contact us on Amazon. Parts List Battery Cover Interior Latch Drive-In Collar Strike Exterior Assembly Assembly (Optional) Mounting Plate Mounting Plate Exterior Screws Assembly Strike(H) and Mounting Plate Interior Battery Cover Assembly Latch(I) Screws Latch ×2... - Page 3 Install exterior assembly IMPORTANT: Do not insert the physical key before and during installation. IMPORTANT: Before installation, make sure the latch is fully retracted (in the unlocked position) . Route the cable below the latch and insert the cylinder tailpiece through the horizontal slot in the latch.
-
Page 4: How To Use
How To Use UNLOCK the door from outside LOCK the door from outside Manual Mode Press any key on keypad for 2 seconds. Master/ User code Auto Re-lock Mode In Auto re-lock mode, the bolt will extend out automatically in 30 seconds UNLOCK the door from inside after unlocking. - Page 5 Proper cleaning and maintenance of your lock ensures it will continue to work as it should. Do not apply cleaner or detergent directly to any part of the lock. The Zomoss meets IP54 water-resistance. It can withstand water splashes ; however, it is not waterproof. Do not let water and liquids get into the lock.
-
Page 6: Troubleshooting
Troubleshooting Problem: When resetting the lock, the latch does not extend but I can hear the motor is turning. Cause(A): The latch and strike are misaligned, causing the latch to bind. Solution(A): a. Adjust the position of the strike plate. b.
