Great care has gone into the manufacture of this product and it should there-
fore provide you with years of good service when used properly. In the event
of product failure within its intended use over the course of the first 3 years af-
ter date of purchase, we will remedy the problem as quickly as possible once
it has been brought to our attention. In the unlikely event of such an
occurrence, or if you require any information about the product, please con-
tact us via our helpline support services, details of which are to be found both
in this manual and on the product itself.
GB
PRODUCED IN CHINA FOR:
ALDI STORES LTD. PO BOX 26, ATHERSTONE
WARWICKSHIRE, CV9 2SH.
Visit us at www.aldi.com
AFTER SALES SUPPORT
809147
+44 (0) 1904727501
GB
support@coreservice.co.uk
MODEL:
IS08
10/2021
3
YEAR
WARRANTY
User Manual

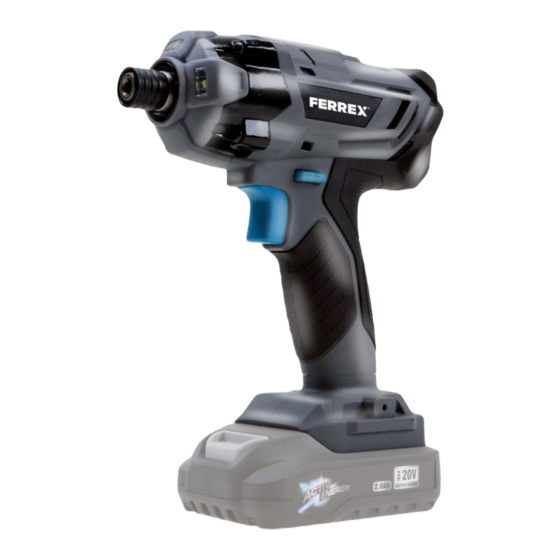

20 V LI-ION CORDLESS
IMPACT DRIVER
Original User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ALDI Ferrex IS08
Summary of Contents for ALDI Ferrex IS08
- Page 1 PRODUCED IN CHINA FOR: ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. Visit us at www.aldi.com...
-
Page 3: Scope Of Delivery
Scope of delivery Scope of delivery Cordless Impact Driver Beltclip Bit set Operating manual and warranty card (not depicted) -
Page 4: Table Of Contents
Table of content Table of content Overview........................2 Scope of delivery..................... 3 General information....................5 Reading and storing the operating manual..............5 Proper use...........................5 Explanation of symbols...................6 Safety........................6 General safety notes for power tools................7 Special safety instructions for the impact driver............11 Additional safety notes for power tools................. -
Page 5: General Information
General information General information Reading and storing the operating manual This operating manual is part of the 20V Li-Ion Cordless Impact Driver (hereinafter also called "device"). It contains important information on how to set up and use the product. Before using the device, read the operating manual carefully, in particular the safety instructions. -
Page 6: Explanation Of Symbols
Explanation of symbols Explanation of symbols The following symbols and signal words are used in this user manual, on the device or on the packaging. This symbol provides you with useful additional information on handling and use. Declaration of conformity (see chapter “Declaration of conformity”): Products marked with this symbol meet all the applicable Community regulations of the European Economic Area. -
Page 7: General Safety Notes For Power Tools
Safety This signal symbol/word denotes a CAUTION! hazard with a low risk level that could lead to mild or moderate injury if it is not avoided. This signal word provides a warning NOTE! about potential material damage. General safety notes for power tools WARNING! Read all safety notes, instructions, illustrations and technical data provided with this power tool. - Page 8 Safety Unmodified plugs and earthed (grounded) power tools. matching outlets will reduce risk of electric shock. - Avoid body contact with earthed or grounded surfaces, There is such as pipes, radiators, ranges and refrigerators. an increased risk of electric shock if your body is earthed or grounded.
- Page 9 Safety - Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. - If devices are provided for the connection of dust extraction and collection facilities, ensure these are Use of dust collection can connected and properly used.
- Page 10 Safety properly without jamming, and whether parts are broken or damaged to such an extent that they impair the functions of the power tool. Have damaged parts repaired Many accidents happen due to before using the power tool. poorly maintained power tools. Carefully maintained - Keep cutting tools sharp and clean.
-
Page 11: Special Safety Instructions For The Impact Driver
Safety If the fluid gets into your eyes, seek additional medical Leaking battery fluid may cause skin irritation or attention. burns. Damaged or - Do not use a damaged or modified battery. modified batteries may behave unpredictably and cause fire, explosion or injury. - Page 12 Safety - Do not let inexperienced persons or persons with physical, motor or mental impairments use the device and its accessories unsupervised. - Children must not play with, clean or service the device and its accessories. - Only use tools that fit into the power tool's retaining system. - Let the tool cool down after use before touching it.
-
Page 13: Operating Controls
Operating Controls Operating Controls LED-light The LED light illuminates the working area in front of the chuck. The light is activated automatically when pushing the power switch Direction switch The direction switch changes the rotating direction or blocks the power switch - Position the direction switch to left, the bit support rotates clockwise. -
Page 14: Before First Use
Before first use Before first use Check the device and scope of delivery NOTE! Risk of damage! If opening the packaging with a sharp knife or other pointed objects, careless handling can damage the device. - Therefore, be very careful when opening. 1. -
Page 15: Operation
Operation Operation CAUTION! Risk of injury! A damaged device or damaged accessories can lead to injuries. - Check the device and the accessories (see section "Testing"). This chapter describes how to operate the device. The following instructions for use serve for your own safety and for successful, safe use of the device. General information for the battery and charger Only use suitable batteries (see chapter "Technical Data") and chargers ■... -
Page 16: Tightening And Loosening Screws
Operation CAUTION! Fire and explosion hazard through reverse polarity or short circuiting - Only use suitable batteries (see chapter "Technical Data") approved by the manufacturer. Only use undamaged batteries. Remove Battery 1. Press and hold the battery unlock 2. Pull the battery out of the battery holder If the battery cannot be removed... -
Page 17: Cleaning
Operation 5. Release the power switch as soon as the screw / nut is in the desired position. Cleaning 1. Switch off the device remove the battery from the battery holder 2. Let the device and the accessory tool cool down completely. 3. -
Page 18: Troubleshooting
Troubleshooting Troubleshooting Problem Possible cause Troubleshooting The device can not start. The battery charge is too Charge the battery weak. The battery is not Slide the battery into the inserted correctly. battery holder as far as it will go until it clicks into place. - Page 19 Technical data Noise/vibration information WARNING! Health hazard! Working without hearing protection or protective clothing can damage your health. - Wear hearing protection and appropriate protective clothing when working. The specified total vibration value and the specified noise emission values have been measured according to a standardized test method (EN62841-1/EN62841-2-1) and can be used to compare one power tool with another.
-
Page 20: Declaration Of Conformity
Declaration of conformity Declaration of conformity Original EU Declaration of Conformity MEROTEC GmbH Otto-Brenner-Str. 8, D-47877 Willich, Germany herewith declare under our own, sole responsibility that our product 20 V Impact Driver Model no. IS08 for driving screws complies with the following directives: 2006/42/EC Machinery Directive 2014/30/EU EMC-Directive... - Page 21 Original UK Declaration of Conformity MEROTEC GmbH Otto-Brenner-Str. 8, D-47877 Willich, Germany herewith declare under our own, sole responsibility that our product 20 V Impact Driver Model no. IS08 for driving screws complies with the following regulations: Supply of Machinery (Safety) Regulations 2008 Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012...
-
Page 22: Disposal
Disposal Disposal Disposing of packaging Dispose of packaging according to type. Sort the paperboard and cardboard as waste paper and the film as recyclable material. Dispose of old electrical device Applicable in the European Union and other European countries with systems for separate collections of recyclable waste.
