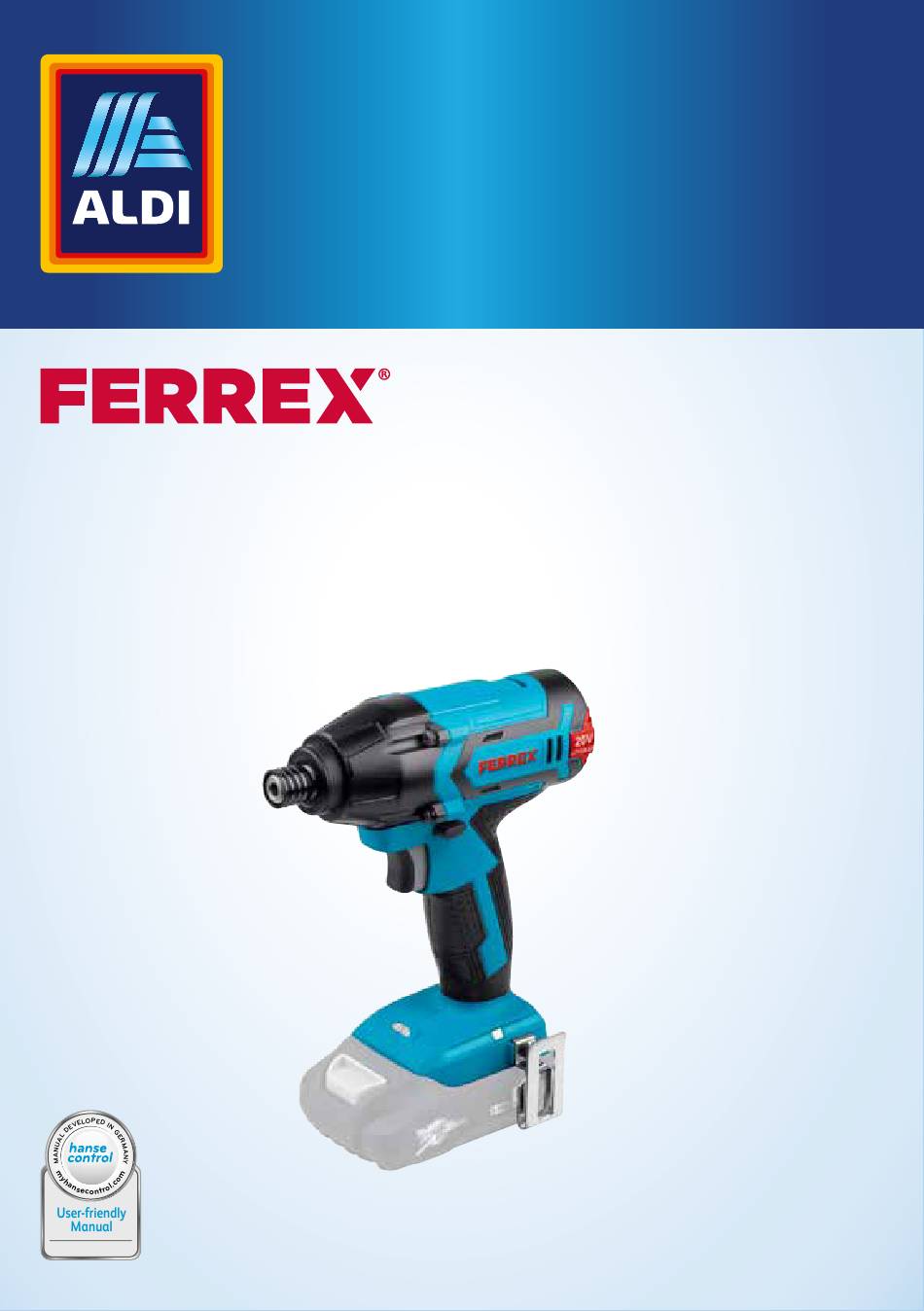

- Page 1 User Manual 20 V LI-ION CORDLESS IMPACT DRIVER FID 20-I Original instructions ID: #05007...
-
Page 2: Table Of Contents
Table of contents Scope of delivery ................3 Components ..................5 General information ..............6 Reading and storing the user manual ..........6 Proper use ....................6 Residual risks ..................7 Explanation of symbols ..............7 Safety ....................8 Explanation of notes ................. 8 General power tool safety instructions .......... 8 Power tool use and care .............. -
Page 3: Scope Of Delivery
Scope of delivery Scope of delivery... - Page 4 Scope of delivery...
-
Page 5: Components
Scope of delivery Components Locking sleeve Direction switch Belt clip Screw LED work light On/off switch (with speed control) Chuck... -
Page 6: General Information
General information General information Reading and storing the user manual This user manual accompanies this 20 V Li-Ion Cordless Impact Driver FID 20-I (subsequently referred to simply as “product”). It contains important infor- mation on safety, usage and care. Before using the product, read the user manual carefully. Pay particular attention to the safety notes and warnings. -
Page 7: Residual Risks
General information Residual risks Despite proper use, inconspicuous residual risks cannot be completely ruled out. The following risks may arise due to the design of the product: • Injury caused by touching rotating parts; • Crushing or other injury through improper use; •... -
Page 8: Safety
Safety Safety Explanation of notes The following symbols and signal words are used in this user manual. Indicates a hazardous situation that, if not avoid- ed, could result in death or serious injury. WARNING! Warns against potential damages to property. NOTICE! General power tool safety instructions WARNING Read all the safety notes, instructions, illustrations and... - Page 9 Safety c) Do not expose power tools to rain or wet conditions. Water enter- ing a power tool will increase the risk of electric shock. d) Do not use the cord for improper purposes such as for carrying the power tool, for hanging it up or for pulling or unplugging it from the socket.
-
Page 10: Power Tool Use And Care
Safety g) If there is an option for installing dust suction devices and dust containers, these should be attached and used correctly. Use of dust collection can reduce dust-related hazards. h) Do not be lulled into a false sense of security and ignore the safety rules for power tools, even if you are well acquainted with power tools, having used them frequently. -
Page 11: Cordless Tool Use And Care
Safety h) Keep handles and handle surfaces dry, clean and free from oil and grease. Slippery handles and handle surfaces will prevent you from op- erating and controlling the power tools safely in unforeseen situations. Cordless tool use and care a) Only charge the rechargeable batteries with chargers recom- mended by the manufacturer. -
Page 12: Special Safety Instructions For The Impact Driver
Safety b) Never perform maintenance on damaged rechargeable batteries. Only the manufacturer or authorised service companies may perform maintenance on rechargeable batteries. Special safety instructions for the impact driver a) Hold the device by the insulated handle surfaces when perform- ing work where there is a risk of the screw coming into contact with hidden power lines. -
Page 13: First Use
First use First use WARNING! Risk of injury! Packaging material and small parts pose a risk of injury to children. Children may get caught in the packaging wrapper or swallow small parts and choke on them. − Do not allow children to play with the packaging wrapper or small parts. Checking the product and package contents 1. -
Page 14: Switching The Product On And Off
Using the battery Switching the product on and off Switching on − Press and hold the on/off switch The LED work light will turn on when the on/off switch is pressed down all the way gently. Switching off − Let go of the on/off switch Setting the direction of rotation You can use the direction switch to set the direction in which the impact driver... -
Page 15: Inserting And Removing The Battery
Troubleshooting Inserting and removing the battery − To insert the battery, slide it into the guide rail located at the bottom of the handle until you hear and feel it click into place (see Fig. B). − To remove the battery, depress the battery release and pull out the battery (see Fig. C). -
Page 16: Cleaning
Storage NOTICE! Risk of damage! Improper handling of the product can damage the product. − Do not use any aggressive cleaners, brushes with metal or nylon bristles, or sharp or metallic cleaning utensils such as knives, hard scrapers and the like. They could damage the surfaces. Cleaning −... -
Page 17: Transport
95 min. Charger type: 21 V / 4.0 A Models: AEC 20-4.0Ia / AEC 20-4.0Ic / AEC 20-4.0Na /XYZ563 Please see the technical specifications for the rechargeable battery and charger. Rechargeable batteries and chargers are separately available in your Aldi store. -
Page 18: Noise/Vibration Information
Noise/vibration information Noise/vibration information WARNING! The specified total vibration value and noise emission values have been measured according to a standardised test method (EN 62841-1 & EN 62841-2-2) and can be used to compare power tools with one another. They can also be used for a provisional as- sessment of the load. -
Page 19: Disposal
Disposal Disposal Disposing of the packaging Dispose of the packaging separated into single type materials. Dispose of paperboard and cardboard with waste paper and plastics with recy- clable waste. Disposing of the product − Dispose of the product in accordance with the disposal regulations in force in your country. -
Page 20: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity Conmetall Meister GmbH Oberkamper Straße 37 - 39 42349 Wuppertal Germany EC Declaration of Conformity We declare with sole responsibility, 20 V LI-ION CORDLESS IMPACT DRIVER that the product listed below … FID 20-I WU5420013 / WU5420014 •... - Page 21 PRODUCED IN CHINA FOR: ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD.
