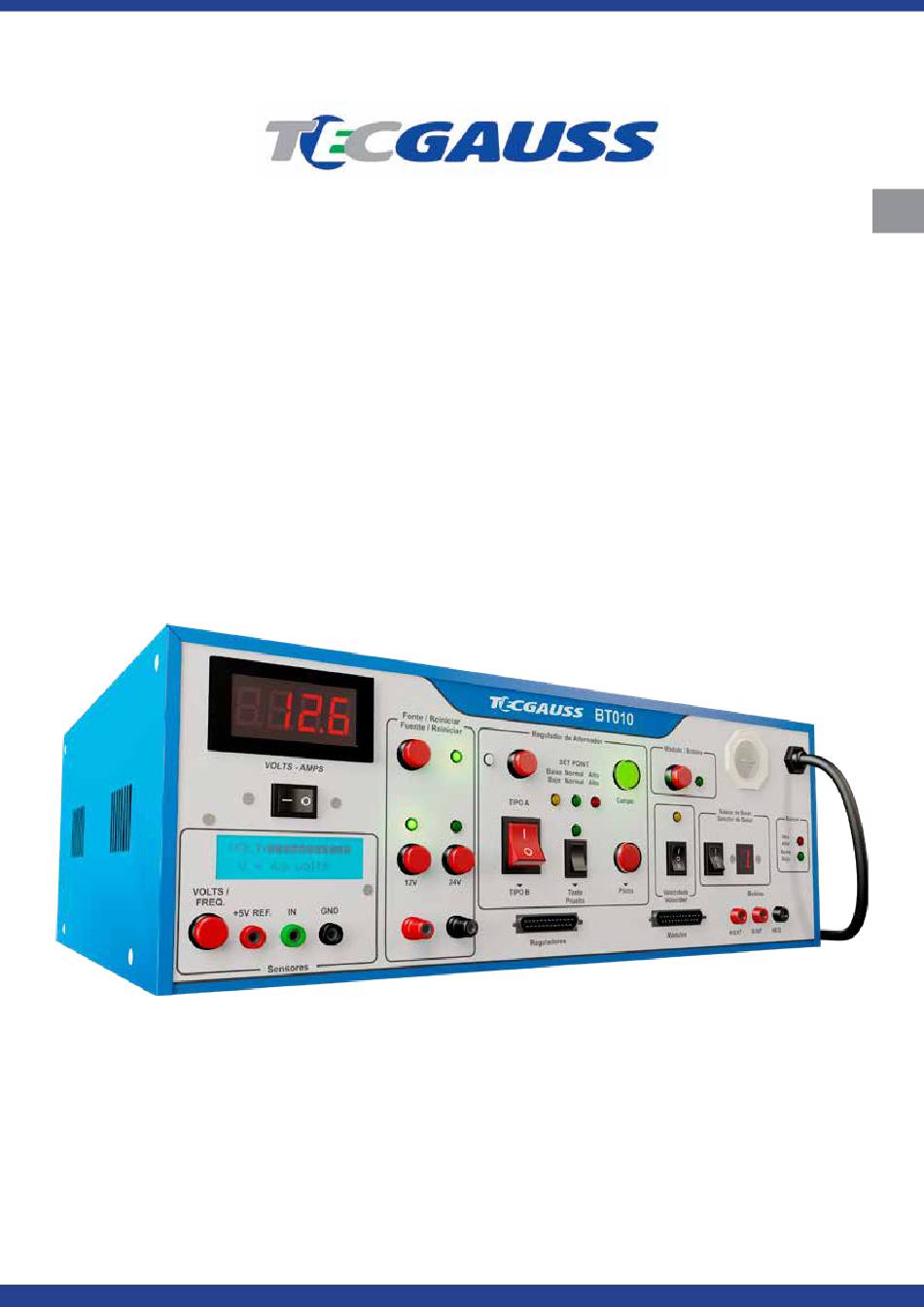

- Page 1 USER MANUAL BT010 ELECTRONIC AUTO PARTS TESTER www.gauss.com.br...
-
Page 3: Table Of Contents
Summary PAGE 1. Introduction 2. Auto Parts Tester Description 2.1 Sensor Testing Module 2.2 Power Supply Testing Module 2.3 Regulator Testing Module 2.4 Ignition Coil/Module Testing Module 3. Testing Methods 3.1 Sensor Testing 3.2 Tests with the Power Supply Module 3.2.1 Lamp Testing 3.2.2 Horn Testing 3.2.3 Alternator Rotor Testing... -
Page 5: Introduction
The Tester is delivered with the following wiring harnesses and testing accessories: 1.1. A set of cables for tests using the power supply (PU01): The BT010 Electronic Auto Parts Tester was especially designed to test components of the electrical and electronic systems in motor vehicles. - Page 6 NOTE: The catalogue of images with detailed testing infor- mation for each element is available at www.gauss.com.br/en/bt010. Electronic Auto Parts Tester Manual BT010...
-
Page 7: Auto Parts Tester Description
12 Volts and the regulator testing modu- le is deactivated. This module consists of the following parts: • “MODULE/COIL” button – allows for starting up the tes- ting system. To exit, press the “POWER SUPPLY/RESET” button Electronic Auto Parts Tester Manual BT010... -
Page 8: Testing Methods
“High Light” test. If one of the filaments doesn’t light up, the lamp is defective. If the voltage applied to the lamp does not match the manufacturer’s specification, it may present low light or immediately burn out. Electronic Auto Parts Tester Manual BT010... -
Page 9: Horn Testing
3.3 Alternator Regulator Testing tructions below. First, find the technical information for the model to be tested on the website www.gauss.com.br/en/bt010: • Press the “ALTERNATOR REGULATOR” button • Select the rated voltage of the regulator (12 Volts or 24 Volts) •... -
Page 10: Use Of Pd/Pwm Driver
3.4 Ignition Module Testing First, find the technical information for the model 3.3.1 Use of PD/PWM Driver to be tested on the website www.gauss.com.br/en/bt010: The “PD/PWM” DRIVER is a device for testing re- • Press the “POWER SUPPLY/RESET” button to activate gulators controlled by the vehicle’s Electronic Control Unit. -
Page 11: Use Of Auxiliary Coil
It is crucial for the metal tip of the probe to touch the metal part of the coil’s high-volta- To test them, first find the technical information for ge output, otherwise the voltage reading will be incorrect. -
Page 12: Other Tests
Some manufacturers include a small diagram Testing procedure: printed on the relay. Use it as a guide. • In the regulator testing module, select “TYPE B” • Select the rated voltage of the relay (12 Volts or 24 Volts) Electronic Auto Parts Tester Manual BT010... -
Page 13: Diode Testing
Power with Maximum Charge 310 W Fuse 10 A / 250 V / 6 x 30 mm Sizes 44 (L) x 36 (P) x 16 (A) cm Approximate Net Weight 9,4 kg Approximate Gross Weight 11,5 kg Electronic Auto Parts Tester Manual BT010... -
Page 14: Warranty
4. WARRANTY The BT010 Electronic Auto Parts Tester has a one-year total warranty that covers spare parts and labor necessary for the eventual repair of any damage suffered by the equipment under normal usage conditions. It does not cover damage caused by accidents unrelated to use of the equipment, such as falls, liquid spills or fire. - Page 16 www.gauss.com.br | +55 41 3021-2300 REV.02...
