Original User's Instructions

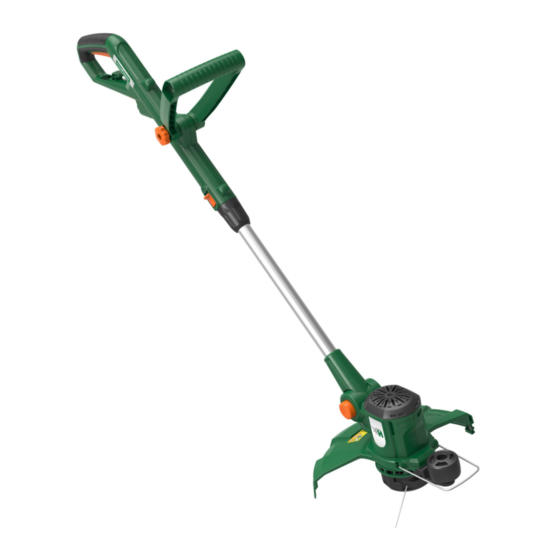

450W Electric Grass Trimmer
SKU: 90598
WHAT'S IN THE BOX
Spare spool
x 2
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE
Grass trimmer x 1
Support wheel
Plant protector
x 1
x 1
If you do not have all these items, please contact:
www.coreservice.co.uk
Hotline: +44 01904 947568
Email www.coreservice.co.uk
Guard x 1
Front handle
x 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAWKSMOOR DT4302 and is the answer not in the manual?

Questions and answers

Related Manuals for TOOLSTATION HAWKSMOOR DT4302

Summary of Contents for TOOLSTATION HAWKSMOOR DT4302

  • Page 1 Original User’s Instructions 450W Electric Grass Trimmer SKU: 90598 WHAT'S IN THE BOX Grass trimmer x 1 Spare spool Support wheel Plant protector Guard x 1 Front handle If you do not have all these items, please contact: www.coreservice.co.uk Hotline: +44 01904 947568 Email www.coreservice.co.uk PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE...

  • Page 2: Tools Required

    TOOLS REQUIRED SPECIFICATION Technical Data Model DT4302 Input voltage rating 230-240V~/50Hz Input power 450W No load speed 10000min Dual line Ø1.4 mm, length 2X5m Cutting width 300mm Protection class II / Protection category IP20 Angle adjustment 0°~90° Weight 2.5kg Measured sound pressure level : 80.4dB(A) pA,eq Uncertain K...
  • Page 3 WARNING! Depending on the actual use of the product the vibration values can differ from the declared total! Adopt proper measures to protect yourself against vibration exposures! Take the whole work process including times the product is running under no load or switched off into consideration! Proper measures include among others regular maintenance and care of the product and cutting attachments, keeping hands warm, periodical breaks and proper planning of work processes! INTENDED USE...
  • Page 4 Do not expose the product to rain or wet conditions (moisture). Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation. In general, children must not come near the area where the product is.

  • Page 5: Health And Safety

    HEALTH AND SAFETY This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
  • Page 6 (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. 2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
  • Page 7 the off-position before connecting to power source and/ or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. 4. Remove any adjusting key or wrench before turning the power tool on.
  • Page 8 4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
  • Page 9 WARNING! When using the product the safety rules must be followed. For your own safety and that of bystanders please read these instructions before operating the product. Please keep the instructions safe for later use. Training 1. Read the instructions carefully. Be familiar with the controls and the proper use of the product.
  • Page 10 5. Before using the product and after any impact, check for signs of wear or damage and repair as necessary. 6. Always disconnect the product from the power supply (i.e. remove the plug from the power supply or the battery pack) –...

  • Page 11: Maintenance And Storage

    attachment during operation. 16. Disconnect from the power supply when the cord becomes damaged or tangled. 17. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. 18.

  • Page 12: Vibration And Noise Reduction

    5. When not in use, store the product out of the reach of children. VIBRATION AND NOISE REDUCTION To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimize the vibration and noise exposure risks: 1.

  • Page 13: Residual Risks

    2. Switch off and disconnect from the power supply if there is any malfunction. Have the product checked by a qualified specialist and repaired, if necessary, before you put it into operation again. RESIDUAL RISKS Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain.

  • Page 14: Assembly And Use

    ASSEMBLY AND USE 1. Assembly a. Safety guard and support wheel assembly 1) Remove four mounting screws from motor housing. Note: They are pre-mounted on the motor housing by factory to help end-user find them quickly. And send a message to end-user, where these four screws should be used for.
  • Page 15 d. Cord strain relief 1) Make sure the on/off switch is in its off position. 2) Double the cord, about 3cm from the end. Lead the loop through the hole on the rear safe guard and hook the loop over the cord strain relief. Gently pull on the cord to ensure that it is firmly attached.
  • Page 16 2) Adjust the angle of the pole, up or down. 3) Release the unlock button and keep moving the pole until it locks in place. NOTE: Always ensure that the unlock snaps into place after adjusting the trimmer in one of the 6 positions! e.
  • Page 17 f. Automatic line feeding The equipment features a fully automatic dual line system. The lines will automatically elongate every time you turn on the appliance. To support proper line elongation, ensure that the coil has stopped moving completely before turning on the appliance again.
  • Page 18 WARNING! Always fit the guard before using the product When cutting longer/ higher grass, please make sure that you cut this down in 2 to 3 stages. 30° DO NOT cut long grass in one cut, as this will damage your grass trimmer and make your warranty invalid.

  • Page 19: Care And Cleaning

    CARE AND CLEANING 1. Maintenance Note. This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. a. Replacing the spool NOTE: Before replacing the spool, make sure the mains plug is disconnected from the unit.

  • Page 20: Troubleshooting

    2. Storage a.Store the product and its accessories in a dry, frost-free place. b.Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10°C and 30°C. 3. Transportation a.Switch the product off and disconnect from power supply before transporting it anywhere.
  • Page 21 Product Description: Hawksmoor 450W 30cm Electric Grass Trimmer 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2. Object of the declaration The object of the declaration described above is in conformity with the relevant Community...

  • Page 22: Environmental Information

    ENVIRONMENTAL INFORMATION When your product comes to the end of its life or you choose to update or upgrade it by replacing it, please do not dispose of it with your normal household waste. Please recycle where facilities exist. When you need to dispose of this product, check with your retailer or local authority for suitable options.

  • Page 23: Customer Support

    Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
