Original User's Instructions

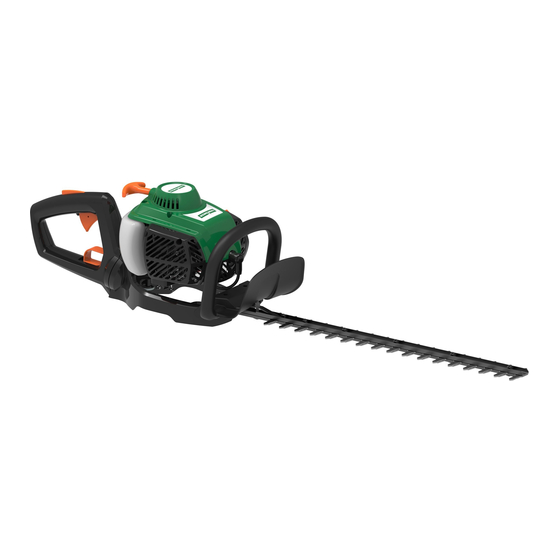

26cc Petrol Hedge Trimme
SKU: 90364

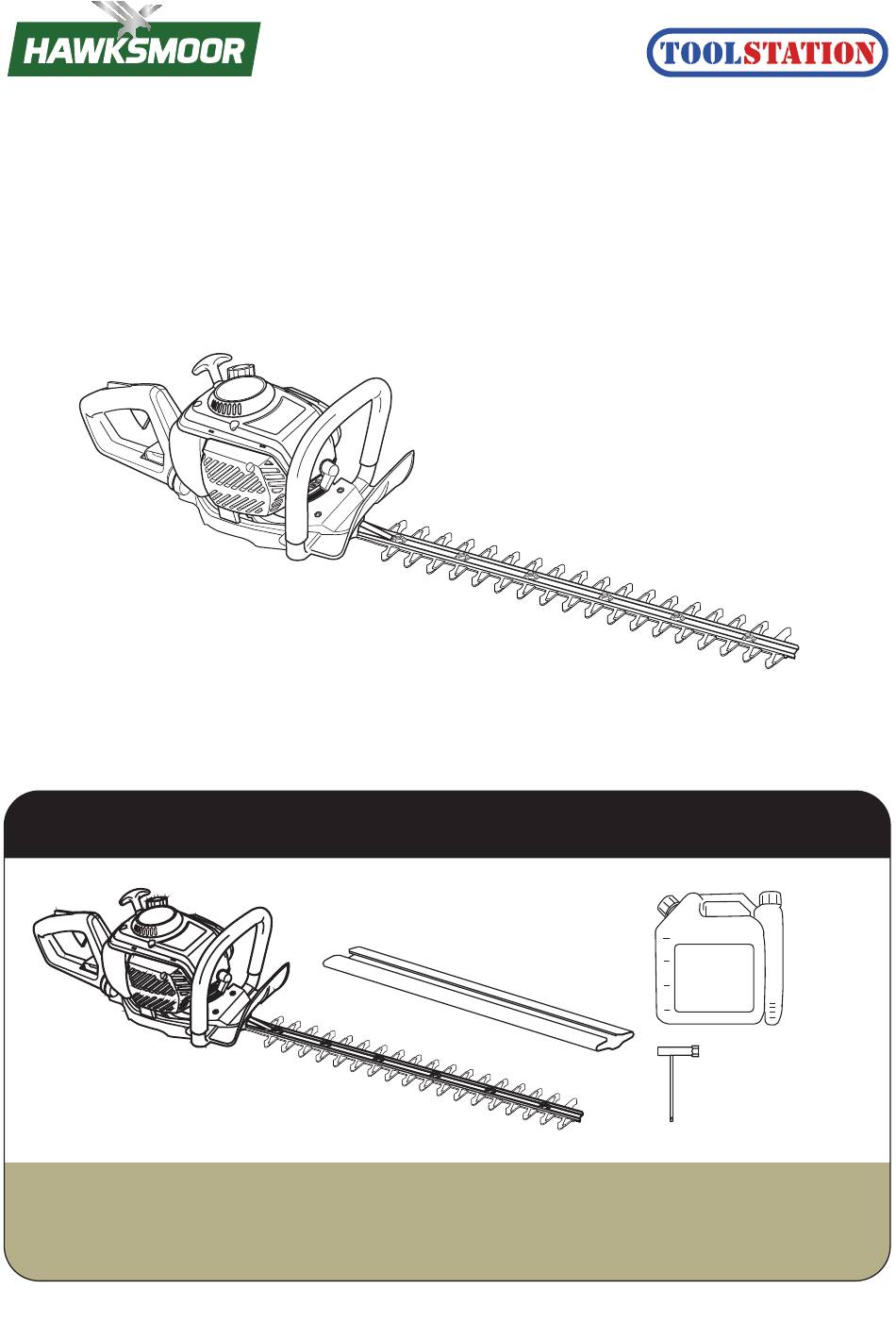

WHAT'S IN THE BOX
Hedge trimmer x 1
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE
If you do not have all these items, please contact:
www.coreservice.co.uk
Hotline: +44 01904 947568
Email support@coreservice.co.uk
Blade cover x 1
Oil
Petrol
40:1
10
Mix bottle
x 1
5
10
FUEL MIXING BOTTLE
5
Socket wrench/
slotted screw drive
x 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAWKSMOOR SLK26B-1 and is the answer not in the manual?

Questions and answers

Related Manuals for TOOLSTATION HAWKSMOOR SLK26B-1

Summary of Contents for TOOLSTATION HAWKSMOOR SLK26B-1

  • Page 1 Original User’s Instructions 26cc Petrol Hedge Trimme SKU: 90364 WHAT'S IN THE BOX Petrol 40:1 Blade cover x 1 Mix bottle FUEL MIXING BOTTLE Socket wrench/ Hedge trimmer x 1 slotted screw drive If you do not have all these items, please contact: www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk...

  • Page 2: Specification

    SPECIFICATION Technical Data Property Value Engine type Single-cylinder, 2-stroke Displacement (cc) 26cm Max. power/engine speed 0.75 kW/10000 min Cutting capacity 27mm Tank capacity 460ml Idle speed 3000min Clutch speed 4000min Ignition C.D.I Cutting length 700mm Fuel ratio (petrol: 2 cycle motor oil) 40:1 Net weight 5.3kg...
  • Page 3 The product complies with the applicable European directives, and an evaluation method of conformity for these directives was done. The exhaust gas is poisonous and asphyxiating. If inhaled, it may even be lethal. Do not operate the engine in closed or poorly ventilated places. Petrol and petrol vapours are extremely flammable.

  • Page 4: Health And Safety

    HEALTH AND SAFETY General Safety Warnings Safety warnings WARNING! Read all safety warnings and instructions. WARNING! Read all safety warnings and instructions designated by the symbol. Save all warnings and instructions for future reference. • Always ensure anyone intending to operate this machine is fully conversant with the contents of this instruction manual prior to assembling, maintaining or operating the machine.
  • Page 5 to use the hedge trimmer. Local regulations can restrict the age of the operator. • Never trim while people, especially children or pets, are nearby. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. •...
  • Page 6 • Don’t leave the machine unattended. Visitors and onlookers, especially children and the infirm, should be kept at a safe distance from your workplace. Make sure that other people cannot access an unattended machine. • Ensure safe tool storage. Machines that are not in use should be stored in a dry place, high up if possible, or they should be locked away so that other people cannot gain access to them.
  • Page 7 the tool when working. • Watch for damaged parts. The machine should be carefully inspected before use. Are any of the parts damaged? In case of slight damage, consider if the machine is still going to work safely and without any problems. Make sure it is properly adjusted and movable parts are properly regulated.
  • Page 8 When handling the machine professionally, there is always some risk that cannot be eliminated. The machine type and construction might present the following potential risks: a) Contact with an unprotected cutting blade (danger of cutting yourself). b) Touching the trimmer in operation (danger of cutting yourself).
  • Page 9 • Use only perfect cutting blades, e.g. well sharpened, without cracks, clinks, or deformations, etc. • Faulty cutting blades should be replaced immediately. • Never use cutting blades that do not correspond with technical data stated in this instruction manual. •...
  • Page 10 • It is essential to know the regulations regarding accident prevention that are valid in a specific workplace, and all other generally acknowledged safety regulations. • When working, pay attention to stability and maintain good balance. • Check the machine on a regular basis for signs of wear and damage.

  • Page 11: Assembly And Use

    ASSEMBLY AND USE WARNING! Depending on the actual use of the product the vibration values can differ from the declared total! Adopt proper measures to protect yourself against vibration exposures! Take the whole work process including times the product is running under no load or switched off into consideration! Proper measures include among others regular maintenance and care of the product and cutting...

  • Page 12: Blade Cover

    BLADE COVER 1. Remove the blade cover (17) from the cutting device (1) before operation (Fig. 1). NOTE: Always attach the blade cover (17) when the product is not in use, for and transportation. To attach the blade cover, align and push the blade cover onto the cutting device (1).

  • Page 13: Fuel And Engine Oil

    initial position (0º) Fig. 5 right position (90º) Fig. 6 FUEL AND ENGINE OIL NOTE: This product is not supplied with fuel- oil mixture in the engine! Before operating this product it is essential to fill it with fuel-oil mixture! This product is equipped with a 2-stroke engine, the fuel and oil tank are combined and it is essential to fill a fuel-oil mixture before operating this product.

  • Page 14: Handle Controls

    3. Use an anti-oxidant added quality oil expressly labelled for air-cooled 2 stroke engine use (JASO FC GRADE OIL or ISO EGC GRADE). 4. Do not use BIA or TWC (2 stroke water-cooling type) mixed oil. 5. The recommended mixing ratio for petrol:oil is 40:1. NOTE: Never mix fuel and oil directly in the tank of the product.

  • Page 15: General Operation

    2. The throttle interlock (6) prevents unintentional activation of the throttle trigger (8) until manually pressed. 3. Adjust the engine speed with the throttle trigger (8). NOTE: The throttle trigger will not work if the unlock lever (9) did not snap securely into place. Fig.
  • Page 16 1. Place the product on level ground and ensure that no objects or obstructions could come in contract with the blades. 2. Set ignition switch (10) to “I” (ON) position. 3. Press the primer (13) 5-6 times. 4. Move the choke lever (16) to “ start”...
  • Page 17 Set the ignition switch (10) to "STOP" (OFF) position. Squeeze the throttle interlock (6) and throttle trigger (8) to release the choke. Remove the spark plug (see “Maintenance and care - Spark plug”). Dry the spark plug. Slowly pull the recoil starter handle (4) for several times to drain the fuel from the combustion chamber.
  • Page 18 3. Start the product as described. Press the throttle interlock, hold it in position and then press the throttle trigger to engage the cutting blade. Operate the engine at full throttle to maintain a proper cutting speed. 4. Move the cutting device lightly through the cutting surface in a sweeping motion following the shape of the hedge or shrub.
  • Page 19 left position (-90º) Fig. 20 6. First cut both sides from the bottom cutting upwards to the top. This will prevent any of the trimmings falling into the path of the area still to be cut (Fig. 21). Fig. 21 7.

  • Page 20: Care And Cleaning

    NOTE: When shaping it is advisable to achieve a trapezoidal shape (Fig. 23). A trapezoidal cut corresponds to the natural growth of plants and results in optimal hedge growth, as it will expose more light to the lower end of the hedge. WARNING! TO STOP THE ENGINE IN AN EMERGENCY: Press and hold the ignition switch (10) to “STOP”...

  • Page 21: Air Filter

    4. Check for any damage and wear. Repair damages in accordance with this instruction manual or take it to an authorised service centre before using the product again. Cutting device WARNING! Wear safety gloves when working on the cutting device and close to it! Use appropriate tools to remove debris, e.g.

  • Page 22: Fuel Filter

    4. Tap the filter on a stable surface to remove dust. Use compressed air (max. 3 bar) to remove stubborn dust. 5. Apply a small amount of air filter oil on the filter to increase the performance of the filter. Wring out surplus oil and put the filter into the case.
  • Page 23 7. Check the spark plug gap; it should be 0.6 – 0.7 mm (Fig. 29). 8. Replace with a new spark plug (18) if either the electrode or the insulation is damaged. 9. When replacing the spark plug (18) first screw it in hand tight and then lightly tighten it with the multi tool (24).
  • Page 24 STORAGE 1. Drain all fuel from tank into a container. Run engine until it stops. Always drain the fuel tank outdoors. 2. Switch the product off and disconnect the spark plug connector. 3. Clean the product as described above. 4. Attach the blade cover. 5.

  • Page 25: Recycling And Disposal

    4. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles. 5. Secure the product to prevent it from slipping or falling over. RECYCLING AND DISPOSAL 1. The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is function properly.

  • Page 26: Troubleshooting

    TROUBLE SHOOTING CAUTION! - Always switch off the engine and pull the ignition cable before starting any inspection or adjustment work. - Remember that the exhaust and other parts will get hot after running the engine, even if only for a few minutes. The following table provides solutions to common problems encountered with the hedge trimmer.
  • Page 27 MAINTAINANCE AND STORAGE LIST OF VULNERABLE PARTS Description Models or specification Spark plug 984002 Air filter 984125 Fuel filter 984168...
  • Page 28 Product Description: Hawksmoor 26cc 70cm Petrol Hedge Trimmer 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2. Object of the declaration The object of the declaration described above is in conformity with the relevant Community...

  • Page 29: Environmental Information

    ENVIRONMENTAL INFORMATION When your product comes to the end of its life or you choose to update or upgrade it by replacing it, please do not dispose of it with your normal household waste. Please recycle where facilities exist. When you need to dispose of this product, check with your retailer or local authority for suitable options.

  • Page 30: Customer Support

    Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
