Summary of Contents for NAVIOP Loop S

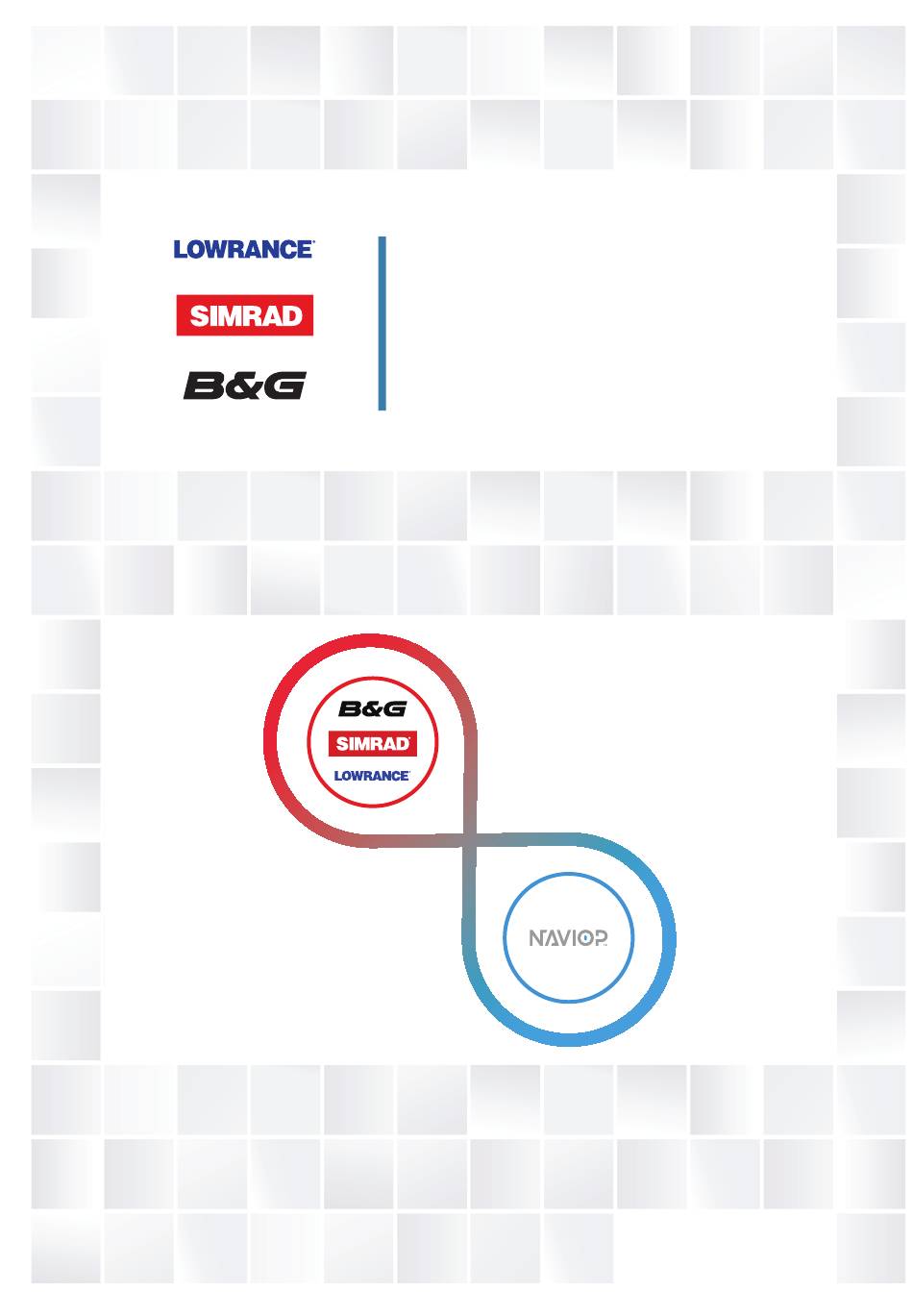

- Page 1 Loop S User Manual ENGLISH www.bandg.com www.simrad-yachting.com www.lowrance.com...
-
Page 3: Preface
Copyright Reproduction, even in part, of this documentation is prohibited without the express written permission issued by NAVIOP S.R.L. Copyright © 2019 NAVIOP S.R.L. All rights reserved. Trademarks Brands and product names mentioned in this documentation are acknowledged as trademarks of their respective owners. -
Page 4: Table Of Contents
System parts System example Get the system up and running Installation Mounting Wiring Configuration Requirements Configuring How to install the Loop S software Operation Start up The control bar interface Technical Specifications Egon+ board AT30 Contents | Loop S User Manual... -
Page 5: Introduction
Maximum 2 Egon+ boards can be installed. Each board can control and monitor 8 relays and monitor 8 power outputs. ¼ Note: Loop S is equipped with one Egon+ board. Loop S+ is equipped with two Egon+ boards. Introduction |... -
Page 6: System Example
Egon+ board Controlled and/or monitored equipment Get the system up and running To get the system up and running you have to perform the following task: • Installation and wiring • Configuration of the system Introduction | Loop S User Manual... -
Page 7: Installation
90° from horizontal (C) due to drainage issues. Check the labels on the AT30 protocol converter cable to ensure the correct connectors are attached to the NMEA 2000 network and to the Naviop CAN network. Other equipment Other equipment shall be mounted as described in the documentation following the equipment. -
Page 8: Wiring
78 m (256 ft) • The backbone needs to have a terminator at each end of the backbone. The terminator can be a terminator plug or a unit with built-in terminator NMEA 2000 device Drop-cable Installation | Loop S User Manual... - Page 9 AT30 protocol converter (NMEA 2000 to Naviop CAN) Naviop CAN network The Naviop CAN network consists of a backbone from which drop cables connect to the Egon+ board(s). Each Egon+ board is identified by a CAN ID displayed on the drop-cable.
- Page 10 • All replaced fuses must be ignition protected fuses. • Do not replace a fuse by short circuiting the poles in the fuse sockets. • Do not short circuit the poles of the relay sockets. 10 | Installation | Loop S User Manual...
- Page 11 For maximum load and fuse sizes for Output 1 to 8 see Relay and fuse channels in “Technical Specifications” on page 24. ¼ Note: For maximum load and fuse sizes for Output 9 to 16 see Fuse channels in “Technical Specifications” on page 24. | 11 Installation | Loop S User Manual...
- Page 12 Loop S ships with one Egon+ board and a cable with CAN ID: 1. • Loop S+ ships with two Egon+ boards and cables with CAN ID: 1 and CAN ID: 2. The Egon+ board requires its own 12 V DC power supply, protected by a 2A fuse.
- Page 13 The main important appliances (bilge pumps, navigation lights, blower, horn etc) must be equipped with a bypass for the safety of the boat. | 13 Installation | Loop S User Manual...
- Page 14 R8. While the bypass switch is closed, the relay will be closed independent of the status in the software. If the bypass switch is closed, it is not possible to 14 | Installation | Loop S User Manual...
- Page 15 The example shows a load (stereo amplifier) connected between the DC negative bus and the green connector pin 4B. Connector pin 4B is the output pin of fuse F8 and can be monitored (but not controlled) from the Loop system. | 15 Installation | Loop S User Manual...
- Page 16 Example B: The indicator light is connected via a fuse to the relay output pin. The fuse rating and wire dimension should be selected based on the indicator light’s specification. The fuse should be connected as close to the relay output as possible. 16 | Installation | Loop S User Manual...
- Page 17 When the bypass switch is closed (either bypassing relay R1 or R2), the corresponding relay will be closed independent of the status in the software. If the bypass switch is closed, it is not possible to turn the bypassed navigation light off from the software. | 17 Installation | Loop S User Manual...
-
Page 18: Configuration
MAC or PC with a web browser (Google Chrome, Mozilla Firefox, Safari or Microsoft Edge 11+) installed. Configuring Locate the SetApp.html file and select it. The configurator will open in your web browser. 18 | Configuration | Loop S User Manual... - Page 19 Define the type of the installed system. S: one Egon+ board. S+: two Egon+ boards. M/M+ shall not be used for Loop S systems. App name Specify a name for the configuration. The name is used to identify the configuration to be used by the MFD.
- Page 20 If selected the fuse list button will be shown at the top of the MFD control bar. Refer to “Fuses” on page 23. Use OP-Box (Loop S/S+ only) Enabled if an OP-Box is used instead of an AT30 protocol converter (not covered by this manual).
-
Page 21: How To Install The Loop S Software
The application name (A) in the menu is the same as the name assigned in the Set App. ¼ Note: Perform steps 6 to 9 for each MFD that you would like to operate the Loop S system. | 21... -
Page 22: Operation
If the problem persists, stop using the system immediately and contact an authorized service center. The Loop S system is operated from the MFD’s control bar. Refer to the MFD documentation for details about how to operate the MFD. - Page 23 If the MFD is turned off, the relays will keep their state until the Egon+ board is powered off. If the power to the Egon+ board is turned off the relays will be deactivated/opened. After a power up, all relays will be open. | 23 Operation | Loop S User Manual...
-
Page 24: Technical Specifications
Short to ground 5 minutes, ER455 (R2008) Section 5.10.4 Short to 16 V DC 5 minutes, ER455 (R2008) Section 5.10.4 Power up operation Ramp battery voltage from 0 to minimum operating voltage ad 1 V/ms, EP455 (R2008) Section 5.10.7 24 | Technical Specifications | Loop S User Manual... - Page 25 AT30 Operating temperature -25°C to 65°C Power supply voltage 8-16 V DC NMEA 2000 current consumption 1 LEN CE EN 60945 | 25 Technical Specifications | Loop S User Manual...
- Page 27 www.bandg.com www.simrad-yachting.com www.lowrance.com...
