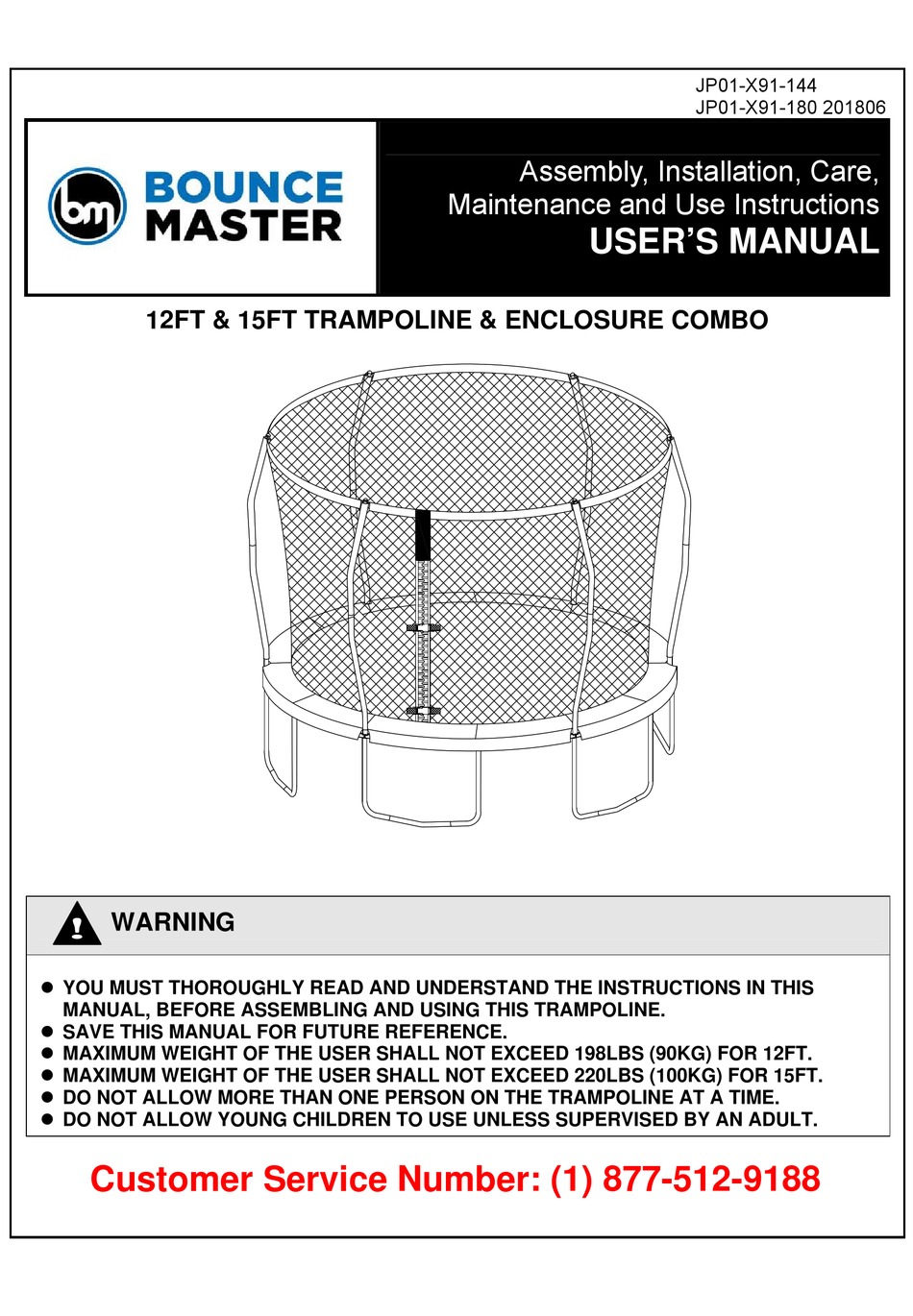

12FT & 15FT TRAMPOLINE & ENCLOSURE COMBO
WARNING
 YOU MUST THOROUGHLY READ AND UNDERSTAND THE INSTRUCTIONS IN THIS
MANUAL, BEFORE ASSEMBLING AND USING THIS TRAMPOLINE.
 SAVE THIS MANUAL FOR FUTURE REFERENCE.
 MAXIMUM WEIGHT OF THE USER SHALL NOT EXCEED 198LBS (90KG) FOR 12FT.
 MAXIMUM WEIGHT OF THE USER SHALL NOT EXCEED 220LBS (100KG) FOR 15FT.
 DO NOT ALLOW MORE THAN ONE PERSON ON THE TRAMPOLINE AT A TIME.
 DO NOT ALLOW YOUNG CHILDREN TO USE UNLESS SUPERVISED BY AN ADULT.
Customer Service Number: (1) 877-512-9188
Assembly, Installation, Care,
Maintenance and Use Instructions
USER'S MANUAL
JP01-X91-144
JP01-X91-180 201806

Advertisement

loading

Summary of Contents for BOUNCE MASTER JP01-X91-144

  • Page 1 JP01-X91-144 JP01-X91-180 201806 Assembly, Installation, Care, Maintenance and Use Instructions USER’S MANUAL 12FT & 15FT TRAMPOLINE & ENCLOSURE COMBO WARNING  YOU MUST THOROUGHLY READ AND UNDERSTAND THE INSTRUCTIONS IN THIS MANUAL, BEFORE ASSEMBLING AND USING THIS TRAMPOLINE.  SAVE THIS MANUAL FOR FUTURE REFERENCE.
  • Page 2 Thank you for purchasing this product. We hope that you will enjoy it. It will take a little time to assemble it. Please take it as an exercise in assembling this product. It is not unusual for you to take more than an hour to assemble this product;...
  • Page 3 PARALYSIS OR DEATH CAN NO MORE THAN ONE RESULT IF YOU LAND ON PERSON AT A TIME ON THE YOUR HEAD OR NECK! TRAMPOLINE! DO NOT PERFORM MULTIPLE JUMPERS SOMERSAULTS (FLIPS) AS INCREASE THE RISK OF THIS WILL INCREASE YOUR INJURY SUCH AS BROKEN CHANCES OF LANDING ON HEAD, NECK, LEG OR BACK.

  • Page 4: Trampoline Placement

     Ladder lets young children climb onto trampoline.  Keep objects away which could interfere with the performer. Maintain a clear area around the trampoline.  Do not use the trampoline while under the influence of alcohol or drugs.  For information concerning skill training, contact a certified trampoline instructor.

  • Page 5: Windy Conditions

     Damaged, missing or insecurely attached frame pad  Protrusions of any types (especially sharp typed) on the frame, springs or mat or suspension  Always close the net opening before practice  Empty pockets and hands before practice  Do not exit the mat by a jump ...
  • Page 6 IT IS RECOMMENDED THAT THE NET BE REPLACED ON A YEARLY BASIS OR EARLIER UNDER NORMAL USE, EVEN IF IT DOES NOT SHOW ANY VISIBLE SIGNS OF DAMAGE. INFORMATION ON USE OF THE TRAMPOLINE  Initially, you should get accustomed to the feel and bounce of the trampoline. The focus must be on the fundamentals of your body position and you should practice each bounce (the basic bounces) until you can do each skill with ease and control.
  • Page 7 Use of alcohol or Drugs: DO NOT consume any alcohol or drugs when using this trampoline! This will increase your chances of getting injured since these foreign substances might impair your judgments, reaction time, and overall physical coordination. Multiple Jumpers: If you have multiple jumpers (more than one person on the trampoline at any one time), you increase the chances of getting injured.
  • Page 8 Poor Maintenance of Trampoline: A trampoline in poor condition will increase your risk of getting injured. Please inspect the trampoline before each use for bent steel tubes, torn mat, loose or broken springs, and overall stability of the trampoline. Weather Conditions: Please be aware of the weather conditions when using the trampoline. If the mat of the trampoline is wet, the jumper could slip and injure him or herself.
  • Page 9  Never use the trampoline when it is wet, damaged, dirty, or worn out. The trampoline should be inspected before any jumpers start bouncing on it.  Keep all objects that could interfere with the jumper away from the trampoline. Be aware of what is overhead, underneath, and around the trampoline.
  • Page 10 FRONT BOUNCE 1. Start with a low bounce. 2. Land in prone (face down) position and keep hand and arms extended forward on mat. 3. Push off the mat with arms to return to standing position. 180 DEGREE BOUNCE 1. Start with the Front Bounce position. 2.
  • Page 11 Trampoline and Enclosure Parts List Trampoline Quantity Part Diagram Description Number 12FT 15FT Trampoline Mat Frame Pad Joint Tube With L-Shaped Leg Top Rail Leg Base Galvanized Springs Long Bolt Cap Nut Medium Spring Washer Larger Spring Washer Flat Washer Plastic End Cap Screws Wrench...
  • Page 12 Enclosure Quantity Part Diagram Description Number 12FT 15FT Upper Frame Tube with Foam Lower Frame Tube with Foam Cable Wire Self-Locking Screw Cord Enclosure Netting Small Spring Washer Enclosure Safety Instruction Placard Plastic Cap TOOLS REQUIRED FOR ASSEMBLY ARE LISTED ABOVE. PHILLIPS SCREW DRIVER, WHICH IS NOT INCLUDED, COULD BE USED FOR EASIER ASSEMBLY.
  • Page 13 Trampoline Assembly STEP 1...
  • Page 14 STEP 2 Note: Repeat step 2 to assemble five more leg sections.
  • Page 15 STEP 3 FOR 12FT...
  • Page 16 STEP 3-1 FOR 15FT...
  • Page 17 STEP 4 Note: Repeat step 4 to assemble five more Top Rail and Leg.
  • Page 18 STEP 5 NOTE: × √...
  • Page 19 STEP 6 FOR 12FT The number of triangle-rings sewn on the mat is equal to the number of holes in the frame. lf you notice that you have miscounted a hole or triangle-ring, remove and reinstall the springs as necessary while maintaining an even distribution of tension as explained above.
  • Page 20 STEP 6-1 FOR 12FT 20th 19th 21st 14th 22nd 13th 12th 11th 10th 15th 24th 16th 23rd 18th 17th FIGURE 2 Continue to attach the 5th to 24th springs in the same manner, following the loading sequence as shown in FIGURE 2.
  • Page 21 STEP 6-2 FOR 12FT 38th 26th 25th 36th 43rd 37th 44th 35th 45th 30th 46th 29th 31st 48th 32nd 47th 42nd 33rd 39th 41st 34th 28th 40th 27th FIGURE 3 Continue to attach the 25th to 48th springs in the same manner, following the loading sequence as shown in FIGURE 3.
  • Page 22 STEP 6-3 FOR 12FT Attach the remaining springs in the same manner as previous steps. Complete look of the springs fully assembled.
  • Page 23 STEP 6-4 FOR 15FT The number of triangle-rings sewn on the mat is equal to the number of holes in the frame. lf you notice that you have miscounted a hole or triangle-ring, remove and reinstall the springs as necessary while maintaining an even distribution of tension as explained above.
  • Page 24 STEP 6-5 FOR 15FT 19th 20th 14th 21st 13th 22nd 12th 11th 10th 15th 24th 16th 23rd 18th 17th FIGURE 5 Continue to attach the 5th to 24th springs in the same manner, following the loading sequence as shown in FIGURE 5.
  • Page 25 STEP 6-6 FOR 15FT 33rd 34th 39th 32nd 40th 27th 31st 28th 46th 41st 45th 42nd 44th 47th 43rd 48th 26th 29th 25th 30th 38th 35th 37th 36th FIGURE 6 Continue to attach the 25th to 48th springs in the same manner, following the loading sequence as shown in FIGURE 6.
  • Page 26 STEP 6-7 FOR 15FT 72nd 53rd 71st 54th 66th 59th 65th 60th 52nd 61st 51st 62nd 64th 49th 63rd 50th 58th 67th 68th 57th 69th 56th 70th 55th FIGURE 7 Continue to attach the 49th to 72nd springs in the same manner, following the loading sequence as shown in FIGURE 7.
  • Page 27 STEP 6-8 FOR 15FT Attach the remaining springs in the same manner as previous steps. Complete look of the springs fully assembled.
  • Page 28 STEP 7...
  • Page 29 STEP 8...
  • Page 30 STEP 9...
  • Page 31 STEP 10...
  • Page 32 STEP 11...
  • Page 33 STEP 12...
  • Page 34 STEP 13 Disassembly of the Trampoline To disassemble the trampoline, follow assembly steps in reverse order.

  • Page 35: Care And Maintenance

    WARNING CARE AND MAINTENANCE This trampoline was designed and manufactured with quality materials and craftsmanship. If proper care and maintenance is provided, it will provide all jumpers with years of exercise, fun, and enjoyment as well as reduce the risk of injury. Please follow the guidelines listed below: This trampoline is designed to withhold a certain amount of weight and use.

  • Page 36: Use Instructions

    USE INSTRUCTIONS Before you begin use of this trampoline and trampoline enclosure, be sure to carefully read all the information provided to you in this manual. Just like any other type of physical recreational activity, participants can be injured. To reduce the risk of injury, be sure to follow appropriate safety rules and tips. Trampolines over 20 in.
  • Page 37 *Do not bounce recklessly on the trampoline since this will increase your chances of getting injured. The key to safety and having fun on the trampoline is control and mastering the various bounces. Never try to out-bounce another bouncer in terms of height! Never use the trampoline without supervision.

This manual is also suitable for:

Jp01-x91-180201806
