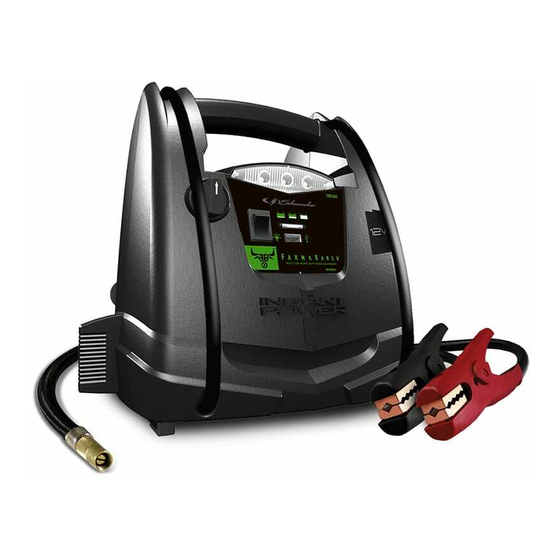

Jump Starter and DC Power Source
OWNERS MANUAL
PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE.
This manual will explain how to use the jump starter safely and effectively. Please
read and follow these instructions and precautions carefully.
CONTAINS SEALED, NON-SPILLABLE LEAD-ACID BATTERY. MUST BE DISPOSED OF PROPERLY.
WARNING: Possible explosion hazard. Contact with battery acid may cause severe burns and
blindness. Keep out of reach of children.
1.
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS.
WARNING: RISK OF EXPLOSIVE GASES.
WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE
EXPLOSIVE GASES DURING NORMAL OPERATION. IT IS IMPORTANT THAT YOU FOLLOW
THESE INSTRUCTIONS EACH TIME YOU USE THE UNIT.
To reduce the risk of battery explosion, follow these instructions and those published by the battery
manufacturer and the manufacturer of any equipment you intend to use in the vicinity of a battery.
Review cautionary markings on these products and on the engine.
WARNING! RISK OF ELECTRIC SHOCK OR FIRE.
Keep out of reach of children.
1.1
Do not disassemble the jump starter. Take it to a qualified service professional if service or repair is
1.2
required. Incorrect assembly may result in fire or electrical shock.
1.3
Do not use the jump starter to jump a vehicle while charging the internal battery.
Do not recharge the jump starter with a damaged extension cord.
1.4
The jump starter gets hot during charging and must have proper ventilation.
1.5
Do not set the jump starter on flammable materials, such as carpeting, upholstery, paper, cardboard, etc.
1.6
Place the jump starter as far away from the battery being jumped as the cables will permit.
1.7
1.8
Do not expose the jump starter to rain or snow.
Never attempt to jump start a frozen battery.
1.9
Never place the jump starter directly above battery being jumped.
1.10
To prevent arcing, never allow the clamps to touch together or to contact the same piece of metal.
1.11
Use of an attachment not recommended or sold by the jump starter manufacturer may result in damage
1.12
to the unit or personal injury.
1.13
Never operate the jump starter if it is damaged.
For the manual with Spanish
visit www.batterychargers.com or call 1-800-621-5485.
Para obtener el manual en español,
visite www.batterychargers.com o llame al 1-800-621-5485.
FOR MODELS
BE01254
FR01240
SJ1330
SJ1331
SJ1426
SPR1630
0099002106-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR01240 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schumacher FR01240

Summary of Contents for Schumacher FR01240

  • Page 1 Jump Starter and DC Power Source FOR MODELS BE01254 OWNERS MANUAL FR01240 SJ1330 PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. SJ1331 This manual will explain how to use the jump starter safely and effectively. Please SJ1426 read and follow these instructions and precautions carefully.

  • Page 2: Personal Safety Precautions

    If someone else uses the jump starter, ensure they are well informed on how to use it safely, and have 1.14 read and understood the operating instructions. The jump starter is NOT designed to be installed as a replacement for a vehicle battery. 1.15 Use ONLY on vehicles, boats and garden tractors powered with a 12V DC battery system.

  • Page 3: Charging The Internal Battery Of The Jump Starter

    CHARGING THE INTERNAL BATTERY OF THE JUMP STARTER IMPORTANT: CHARGE IMMEDIATELY AFTER PURCHASE, AFTER EACH USE AND EVERY 30 DAYS, TO KEEP THE UNIT’S INTERNAL BATTERY FULLY CHARGED AND PROLONG BATTERY LIFE. CHECKING THE LEVEL OF THE INTERNAL BATTERY Press the Battery Status button on the front of the unit. The LED lights will indicate the current charge level as follows: •...

  • Page 4: Using The Usb Port

    4. For a positive-ground vehicle, connect the Instant Power’s NEGATIVE (BLACK) clamp to the NEGATIVE (NEG, N, -) battery post. Next, connect the POSITIVE (RED) clamp to the vehicle chassis or engine block away from the battery. 5. Turn the switch to the ON position 6.

  • Page 5: Maintenance Instructions

    FOR MODELS WITH AN AIR COMPRESSOR WARNING. Read the instructions of the product being inflated before using the compressor. Avoid overinflation; do not exceed the manufacturer’s recommended pressures. Do not leave the air compressor unattended during use. NOTE: Wrap cleats are provided for convenient storage of the air compressor hose. Wrap the hose around these cleats when the hose is not in use.

  • Page 6: Troubleshooting

    IMPORTANT: • CHARGE IMMEDIATELY AFTER PURCHASE • KEEP FULLY CHARGED Charge the jump starter’s internal battery immediately after purchase, after every use and every 30 days. All batteries are affected by temperature. The ideal storage temperature is at 70°F. The internal battery will gradually self-discharge (lose power) over time, especially in warm environments.

  • Page 7: Replacement Parts

    THIS LIMITED WARRANTY TO THE ORIGINAL RETAIL PURCHASER OF THIS PRODUCT. THIS LIMITED WARRANTY IS NOT TRANSFERABLE OR ASSIGNABLE. Schumacher Electric Corporation (the “Manufacturer”) warrants this jump starter for one (1) year and the internal battery for ninety (90) days from the date of purchase at retail against defective material or workmanship that may occur under normal use and care.
