PATIOJOY GYM06488 User Manual

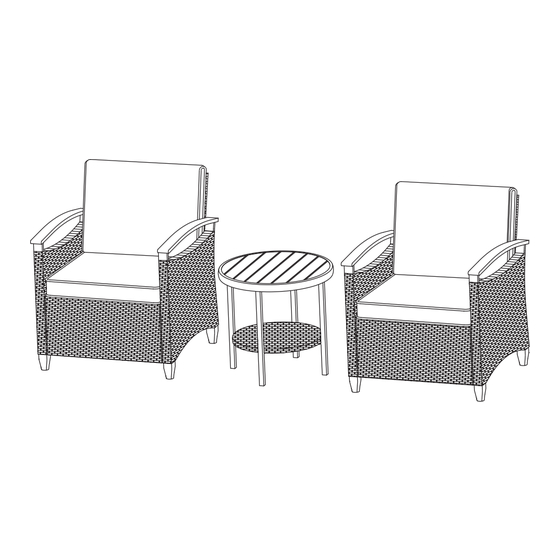

3 pcs wicker set
Hide thumbs

Advertisement

Quick Links

Download this manual
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Please give us a chance to make it right and do better！
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP!
USER'S MANUAL
3 Pcs Wicker Set
GYM06488
FLOOR AREA
2MX2M
ASSEMBLED BY 2 ADULTS

Advertisement

loading

Related Manuals for PATIOJOY GYM06488

Summary of Contents for PATIOJOY GYM06488

  • Page 1 USER’S MANUAL 3 Pcs Wicker Set GYM06488 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Please give us a chance to make it right and do better！ FLOOR AREA 2MX2M Contact our friendly customer service department for help first.

  • Page 2: Before You Start

    Contact Us! Do NOT return this item. Contact our friendly customer service department for help first. E-mail cs@gymaxservice.com Before You Start Read each step carefully before starting. It is very important to ensure each step followed in correct order, otherwise assembly difficulties may occur. Most of board parts are labeled or stamped on the raw edges.
  • Page 3 Not actual size Left Arm x 2 Right Arm x 2 Seat x 2 Back x 2 Footrest x 2 Back Panel x 2 Back Cushion x 2 Seat Cushion x 2 Bottom Foot x 8...
  • Page 4 Not actual size...

  • Page 5: Hardware List

    Hardware List Actual size M6 x 15mm M6 x 30mm BOLT BOLT M6 x 35mm BOLT WASHER 4 x 4 ALLEN WRENCH...
  • Page 6 STEP 1 Attach the bottom foot (G) to bottom of each Arm(B) by inserting bolts (M) with washers (O) through the pre-drilled holes on the arm into the pre-welded nuts on the bottom foot. Repeat step for the other side arm(A). IMPORTANT:Do not tighten completely until assembly is completed.
  • Page 7 STEP 2 Attach the seat(D) to the arm (B) by inserting bolts (N) with washers (O) through the pre-drilled holes on the seat into the pre-welded nuts on the arm. Repeat step for the other side arm(A).
  • Page 8 STEP 3 Attach the footrest(E) to the arm (A&B) by inserting bolts (M) with washers (O). STEP 4 Attach the back panel(F) to the arm (A&B) by inserting bolts (M) with washers (O).
  • Page 9 STEP 5 Attach the back (C) to the seat(D) by inserting bolts (N) with washers (O). STEP 6 Attach the back (C) to the arm (A&B) by inserting bolts (L) with washers (O).
  • Page 10 STEP 7 Tighten all the bolts with the allen wrench, and turn the chair to the upright position. place the seat cushions(R) ,back cushion (Q) on the chair. Your chair is now ready for use.

  • Page 11: Maximum Loads

    Maximum Loads 250 lbs This item is only suitable within the specified maximum load-bearing. Heavier loads than the indicated load capacity may cause instability, resulting in possible injuries.
  • Page 12 Not actual size Table Top x 1 Table Leg x 4 Resin Shelf x 1...
  • Page 13 Not actual size...
  • Page 14 Hardware List Actual size M6 x 10mm M6 x 15mm BOLT BOLT 4 x 4 ALLEN WRENCH WASHER...
  • Page 15 STEP 1 Attach the leg(I) to the table top (H) by inserting bolts (K) with washers (O). IMPORTANT:Do not tighten completely until assembly is completed.
  • Page 16 STEP 2 Attach the leg(I) to the resin shelf (J) by inserting bolts (L) with washers (O).
  • Page 17 STEP 5 Tighten all the bolts with the allen wrench, and turn the table to the upright position. Your table is now ready for use.
  • Page 18 Maximum Loads 25 lbs This item is only suitable within the specified maximum load-bearing. Heavier loads than the indicated load capacity may cause instability, resulting in possible injuries.

  • Page 19: Care And Maintenance

    Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. Never use water to clean your furniture as it may cause damage to the finish.
