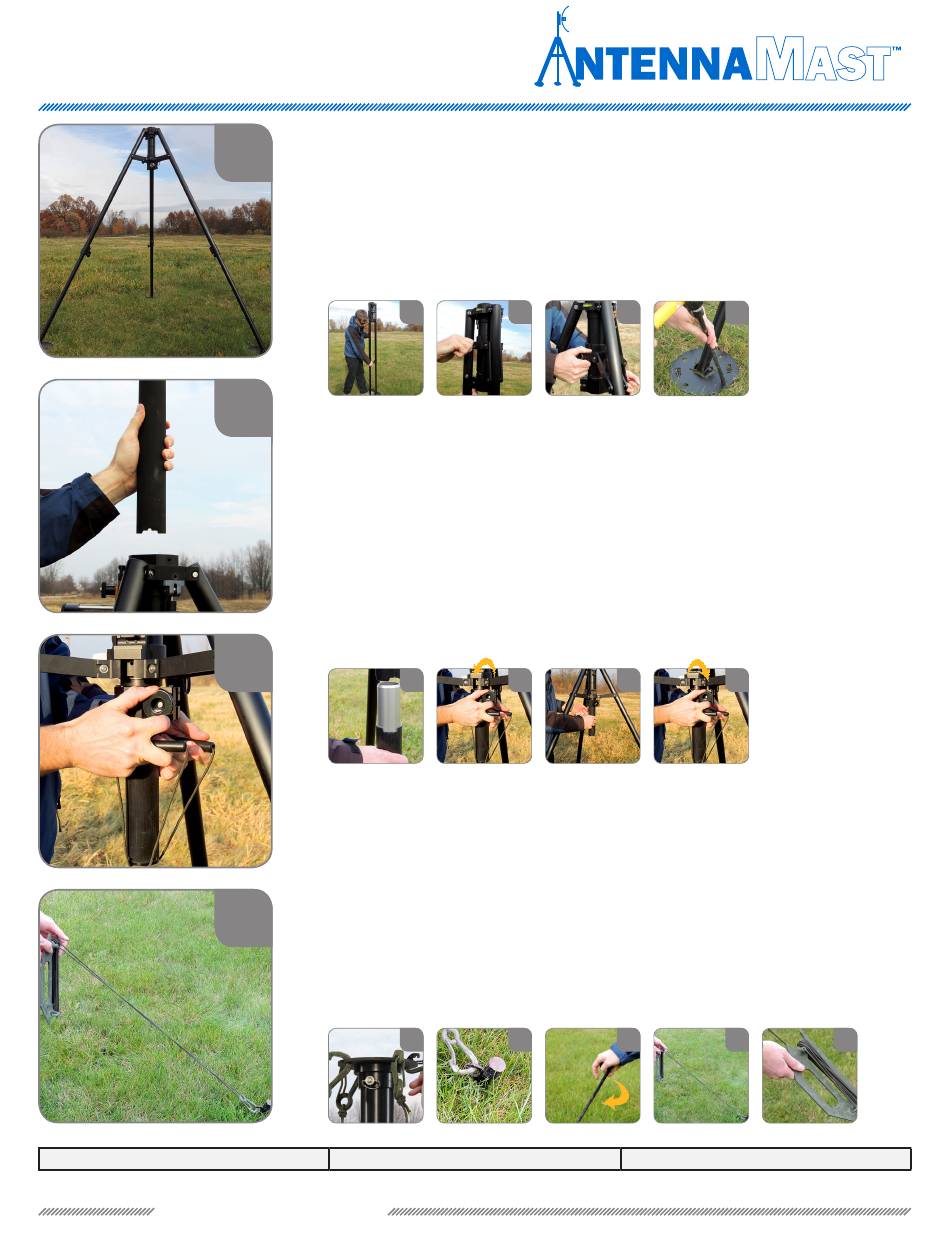

ANTENNAMAST AM2 Quick Reference

Quick Reference
Manual Deployment
Version - TP-5001001-00
Do not duplicate, alter, or copy without the written consent of The Will-Burt Company. © Copyright 2013 The Will-Burt Company
www.antennamast.com
1.

Safe Installation

2
a. Level Site (maximum 5° slope)
b. Ensure adequate overhead and ground clearance

Set up the Tripod

2.
a. Extend legs and tighten
b. Pull spring loaded pin
c. Open and level
d. Stake
a
3
43
3.

Insert Top Tube

a. Tighten clamp
4.

Install Accessories on Top Tube

a. Install payload accessories if required
b. Install payload(s)
c. Install guylines if required
5. Raise The Mast
a. Insert tube from bottom
b. Loosen clamp
c. Push tubes up
d. Tighten clamp
5
a
6.

Install the Base Tube

a. Attach base plate to bottom of base tube
b. Attach to last mast tube
c. Loosen clamp and lower to ground
d. Tighten clamp
e. Stake base plate
7
7. Stake And Tighten Guy Lines
a. Clip carabineer to guy collar
b. Clip carabineer to stake
c. Stage and angle the guy stakes
d. Tigthen the guy lines
e. Lock the guy lines
a
b
b
b
Date - 04/03/14
c
d
c d
c d
Remarks - Original Release
e
