- Page 1 Instruction Manual Antenna Mast MobileMast™ and TeleMast™ Do not duplicate, alter, or copy without the written consent of AntennaMast Inc. Copyright 2004 AntennaMast Inc.
- Page 2 Caution! Contact with overhead wires or power lines can cause serious bodily injury or death 4 Pt Guy Collar Base Plates Mast Section Tripod In Nested Position OSMM-SA-32 depicted Do not duplicate, alter, or copy without the written consent of AntennaMast Inc. Copyright 2004 AntennaMast Inc.
- Page 3 The rotational axis of the base plate should be toward the center. Do not duplicate, alter, or copy without the written consent of AntennaMast Inc. Copyright 2004 AntennaMast Inc.
- Page 4 Do not extend the nested legs beyond this point or attempt to set the turn knob screw into the hole. Do not duplicate, alter, or copy without the written consent of AntennaMast Inc. Copyright 2004 AntennaMast Inc.
- Page 5 Staking the tripod increases the overall stability of the mast and is mandatory when deploying a mast above 12 feet or when guying is required. Do not duplicate, alter, or copy without the written consent of AntennaMast Inc. Copyright 2004 AntennaMast Inc.
- Page 6 Do not duplicate, alter, or copy without the written consent of AntennaMast Inc. Copyright 2004 AntennaMast Inc.

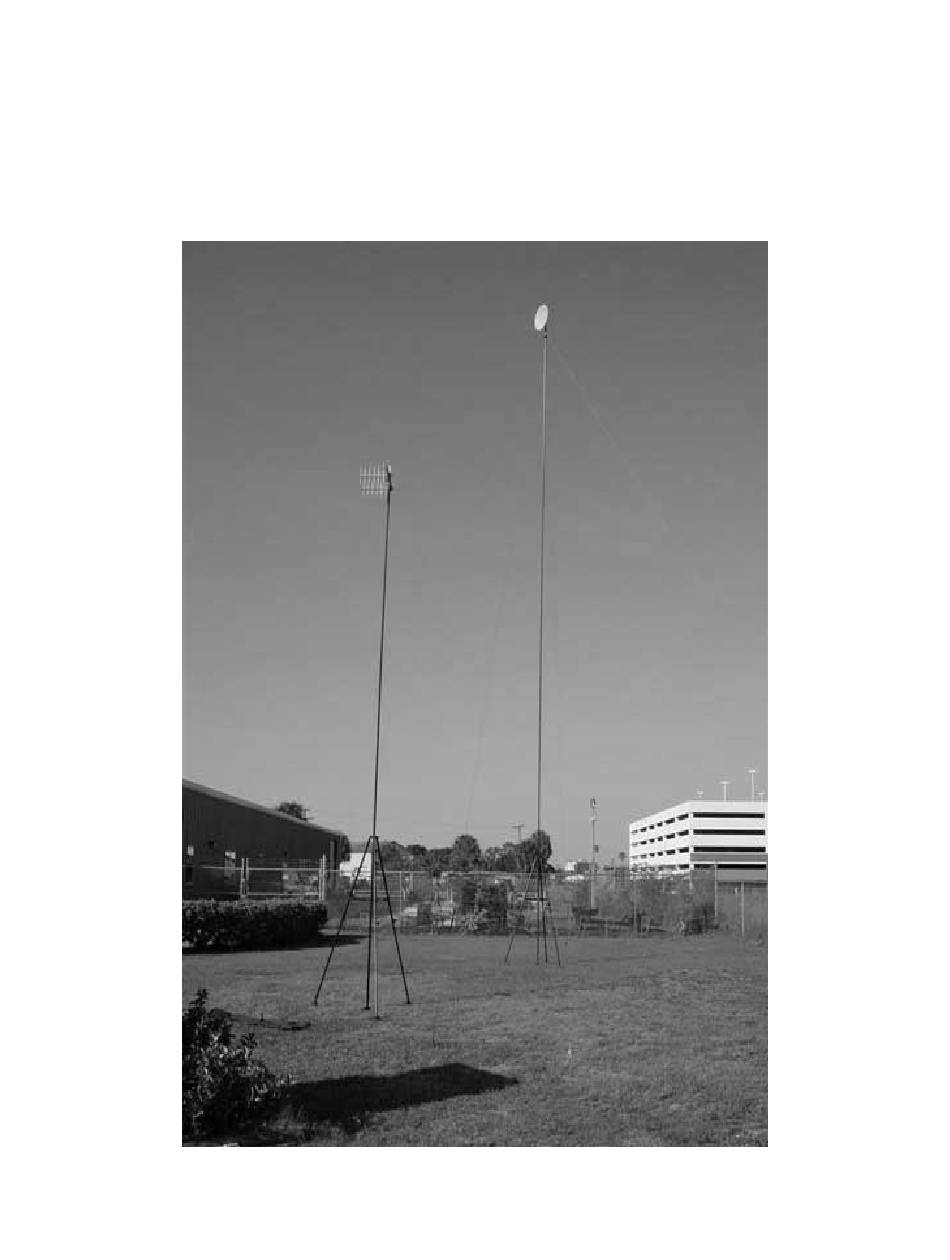

- Page 7 36 foot mast - guy out 24 feet from tripod base facing the tripod. 40 foot mast - guy out 27 feet from tripod base Do not duplicate, alter, or copy without the written consent of AntennaMast Inc. Copyright 2004 AntennaMast Inc.
- Page 8 DANGER! Do not over tighten the guy ropes When guying the AntennaMast be sure not to over tighten the guy ropes. The objective of guying is to stabilize the center mast section, reduce masthead sway, and provide stability during wind loading. If the guy ropes are over tightened the downward load on the mast is increased and the overall load capacity of the mast is reduced and the AntennaMast can become unstable.
- Page 9 You may find it easier and quicker to store the tripod with the base plates attached. Store the tripod in the carry bag. Do not duplicate, alter, or copy without the written consent of AntennaMast Inc. Copyright 2004 AntennaMast Inc.
