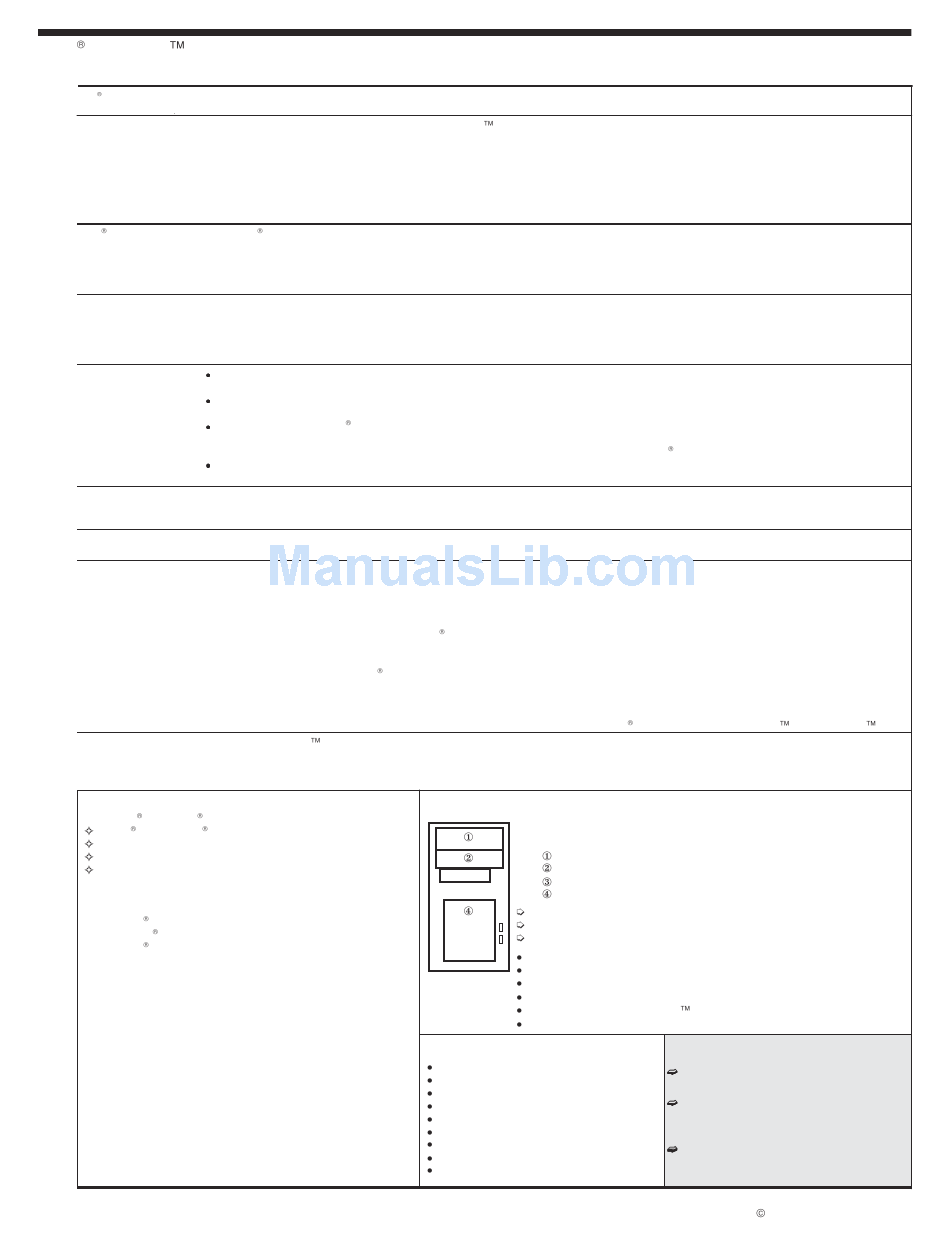

IBM NetVista A20 Reference Manual page 51

IBM
NetVista A60i (6832) - withdrawn
IBM
Type-model Processor GHz
6832-20U Pentium ® 41.3 128MB 40GB
6832-22U Pentium 4 1.3 128MB 40GB 7.2K DVD / CD-RW ATI
6832-61U Pentium 4 1.5 128MB 60GB 7.2K DVD / CD-RW NVIDIA GTS Pro 64M 4x4 mod, snd, Altec 1394
6832-25U Pentium 4 1.3 128MB 20GB value CD-ROM
6832-40U Pentium 4 1.4 128MB 40GB 7.2K CD-RW
6832-44U Pentium 4 1.4 128MB 20GB 7.2K CD-ROM
6832-45U Pentium 4 1.4 128MB 60GB 7.2K DVD / CD-RW NVIDIA TNT2 32MB
6832-71U Pentium 4 1.7 128MB 80GB value DVD / CD-RW NVIDIA GTS Pro 64M 4x4 mod, snd, Altec 1394
Intel processor Pentium 4 at 1.3, 1.4, 1.5, or 1.7GHz
L2 cache 256KB std and max / at processor speed
Implementation Processor and L2 cache in Pin Grid Array (PGA) / motherboard contains one Intel PGA423 socket (with Pentium 4 and heat
sink), four RIMM sockets, three PCI slots, one AGP slot, and 850 chipset with heat sink
SMP support No SMP support
Memory - std / max 128MB std / 1.5GB max / dual RDRAM (Rambus) channels / 32 devices max each channel
Memory - features Two 4D 64MB PC800 RIMMs, non-parity/ Four 184-pin gold-plated RIMM sockets (two per channel) /
two RIMMs installed (one per channel) / CRIMMs in two sockets / supports PC600 or PC800 RIMMs (not PC700) /
mixing PC600 and PC800 RIMMs results in PC600 performance / all installed RIMMs must be installed in pairs across both
channels / no support for ECC function (but ECC RIMMs will operate in non-parity mode)
Graphics controller NVIDIA TNT2 M64 (2D and 3D) / AGP 4X adapter / TNT2 GPU / 16MB std and max 125MHz SDRAM / max resolution of
(one of the following) 1600x1200 with 16.7 million colors at 85Hz / one analog DB-15 connector
NVIDIA TNT2 M64 (2D and 3D) / AGP 4X adapter / TNT2 GPU / 32MB std and max 125MHz SDRAM / max resolution of
1600x1200 with 16.7 million colors at 85Hz / one analog DB-15 connector
ATI ALL-IN-WONDER RADEON (advanced 3D and multimedia) / AGP 4X adapter / 32MB std and max 166MHz
DDR-SGRAM / four connectors on rear of card: one DVI-I connector, one audio/video-out (S-Video or composite), one
CATV in (advanced TV tuner), one audio/video-in (S-Video or composite) / Dolby Digital audio output / MPEG-2 decoder
NVIDIA GeForce2 GTS Pro (advanced 3D) / AGP 4X adapter / NV15 GPU / 64MB std and max 200MHz DDR SDRAM /
max resolution of 2048x1536 with 16.7 million colors at 60Hz / S-Video out connector / one analog DB-15 connector
IDE disk controller Enhanced IDE busmaster / ATA-100 / two connectors on planar
Cables Two EIDE cables (one 2-drop cable to CD, one 1-drop cable to EIDE disk)
Disk - features Enhanced IDE (EIDE) / ATA-100 / S.M.A.R.T.
Architecture / chipsets Intel 850 chip set / MCH (Memory Controller Hub) / I/O Controller Hub (ICH2) for PCI 2.2 bus, ATA-100 EIDE, USB,
Low Pin Count Interface / Firmware Hub / Winbond W83627F Super I/O off Low Pin Count Interface
Diskette 3.5" 1.44MB diskette drive
CD-ROM Some models: 48X-20X
CD-RW 11 Some models: 12X-8X-32X
DVD Some models: 16X-40X
Modem 56K
10/100 Mbps ethernet Some models: 10/100 ethernet / Accton PCI adapter / part number 19K4310
1394 FireWire Some models: FireWire PCI adapter / 1394A / 400Mbps / dual 6-pin ports on rear / no cables included
Audio Creative Labs
Some models: Altec Lansing IBM345 3-piece Speaker System / 30 watts total / 30Hz-18kHz / part number 19K3559
Speakers
Some models: Zylux 2-piece MS-231002 / 3 watts / 200Hz-20kHz frequency response / part number 10K2602
External ports Four USB (two in front, two in back) [Ver 1.1] / one serial 9-pin / parallel (EPP, ECP), IEEE 1284 / keyboard / mouse /
MIDI (joystick) port (DB-15) / audio line in / audio line out / microphone in
Systems mgmt SMART Reaction / monitoring of fans to operating system / Wake on LAN support / no Alert on LAN / no Asset ID
Keyboard / mouse IBM Rapid Access IIIe Keyboard (USB / no hub or USB ports) / IBM ScrollPoint
Cooling fans Three variable speed fans (power supply, rear, processor)
Power supply 200 watts / universal / manual switch
Preload with Windows Millennium Edition
Microsoft Windows Millennium Edition
Lotus SmartSuite Millennium CD-ROM
Software Selections CD-ROM
Windows Millennium Edition Product Recovery CD
Disk-to-Disk Recovery (Millennium Edition in
hidden service partition)
Microsoft Works models include
- Microsoft Works Suite 2001 (Word 2000, Works 6.0,
Encarta Encyclopedia Standard 2001, Money 2001,
Picture It! Publishing 2001, Streets & Trips 2001,
Outlook Express)
Options
64MB PC800 NP RDRAM RIMM (4 Dev)
128MB PC800 NP RDRAM RIMM (8 Dev)
256MB PC800 NP RDRAM RIMM (16 Dev)
512MB PC800 ECC RDRAM RIMM (16 Dev) 33L3254
IBM 30GB ATA-100 EIDE HDD
IBM 9.4GB DVD-RAM (black)
4
IBM IDE 48X-20X CD-ROM (black)
IBM IDE 16X Max DVD-ROM (black)*
IBM IDE 12X/8X/32X CD-RW (black)
IBM 250MB Zip Drive (black)**
IBM NetVista USB-Parallel Printer Cable
IBM P76 Color Monitor (black)
IBM P96 Color Monitor (black)
* requires MPEG-2 PCI decoder 33L5009
** requires 3.5" to 5.25" Bracket Kit 70G8165
* For a copy of IBM's Statement of Limited Warranty, call 1-800-772-2227
US models announced April 24, 2001; others announced March 6, 2001
US models withdrawn from marketing effective November 2001 or December 2001
1
Memory Disk / RPM Optical
2 7.2K CD-ROM
4 CD-ROM (ATAPI), bootable
4 CD-RW(ATAPI), bootable
4 DVD-ROM (ATAPI), bootable
10 data/fax modem / Conexant
®
SoundBlaster Live! / PCI adapter / line in, mic in, line out, rear out for surround sound, MIDI/Joystick
5
20L0270
20L0271
20L0273
09N9890
10K3561
10K3782
22P6950
10K3785
00N8078
19K4164
655063N
655163N
Slots x
Graphics adapter bays
NVIDIA TNT2 32MB 4x4 mod, snd, Zylux
®
Radeon 32MB 4x4 mod, snd, Altec 1394
NVIDIA TNT2 16MB 4x4 mod, snd, Zylux 10/100 Windows Me
NVIDIA TNT2 32MB 4x4 mod, snd, Zylux
NVIDIA TNT2 16MB 4x4 mod, snd, Zylux 10/100 Windows Me Wrks Apr 2001
4x4 mod, snd, Zylux 1394
1 1
with 400MHz Front Side Bus
3
® R6795-12 chipset / controllerless HCF modem / PCI adapter
Micro Tower Slot 1: 9" max
Black Slot 2: 9" max length, 32-bit PCI 2.2 (5v) - ethernet or 1394 (some)
Slot 3: 9" max
Slot 4: 9" max length, 32-bit PCI 2.2 (5v) - used by sound adapter
Bay 5.25", HH 1.6", access,
Bay 5.25", HH 1.6" access,
diskette
Bay 3.5", SL 1",
Bay 3.5", SL 1",
H 15.0" x W 7.6" x D 15.0"
H 381mm x W 194mm x D 381mm
disk
22.5 pounds max (10.2 kg)
(vertical)
BIOS Setup Utility via F1 at startup
Boot Menu via F12 at startup
Product Recovery Pgm via F11 at startup
Adv Config Power Interface (ACPI) 1.0
LANClient Control Manager enabled
DMI 2.0-compliant
SECURITY
U-bolt anchoring feature
Padlock support (user supplied)
Power-on password
Administrator password
Boot sequence control
Boot without keyboard or mouse
Diskette boot inhibit and write-protect
Serial port, parallel port I/O control
No keylock or intrusion detection
Modem, sound Ethernet or
card, speakers FireWire Preload
® Windows
Windows Me Wrks Apr 2001
Windows Me Wrks Apr 2001
Windows Me Wrks Apr 2001
Windows Me Wrks Apr 2001
Windows Me Wrks Apr 2001
® III mouse (USB)
length, 32-bit AGP 4X (universal) - used by graphics
length, 32-bit PCI 2.2 (5v) - used by modem adapter
std CD-ROM or CD-RW
open or DVD-ROM
access, std diskette
no access, std disk
LIMITED WARRANTY*
3 year parts and labor limited
warranty
On site, 8 am through 5 pm,
Mon through Fri excluding holidays,
second business day response time
24 hour x 7 day telephone,
electronic, and Internet support
No warranties are expressed or implied in this summary
(6832) IBM Corp. November 2001
