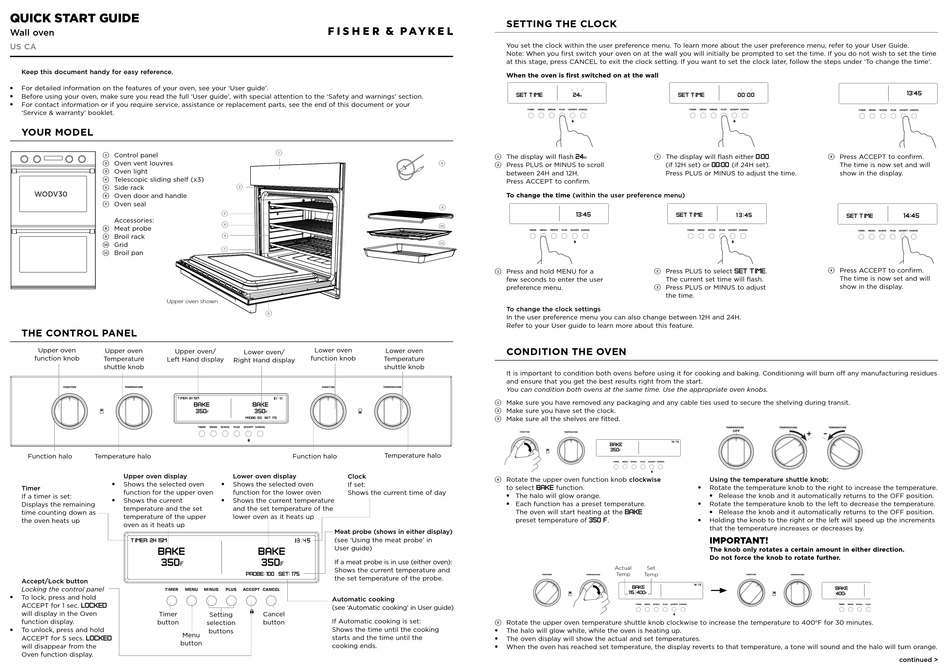

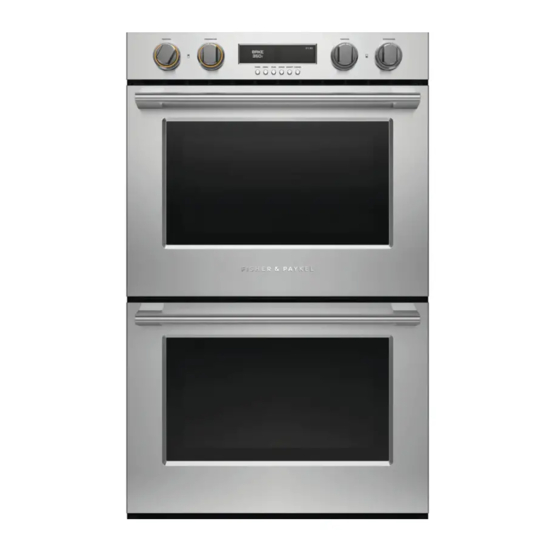

Fisher & Paykel WODV30 Quick Start Manual

QUICK START GUIDE
Wall oven
US CA
Keep this document handy for easy reference.
For detailed information on the features of your oven, see your 'User guide'.
●
Before using your oven, make sure you read the full 'User guide', with special attention to the 'Safety and warnings' section.
●
For contact information or if you require service, assistance or replacement parts, see the end of this document or your
●
'Service & warranty' booklet.

YOUR MODEL

1 Control panel
2 Oven vent louvres
3 Oven light
4 Telescopic sliding shelf (x3)
5 Side rack
WODV30
6 Oven door and handle
7 Oven seal
Accessories:
8 Meat probe
9 Broil rack
!0 Grid
!1 Broil pan
Upper oven shown

THE CONTROL PANEL

Upper oven
Upper oven
Upper oven/
function knob Temperature
Left Hand display
shuttle knob
TIMER: 2H 15M
Function halo Temperature halo
Upper oven display
Shows the selected oven
●
Timer
function for the upper oven
If a timer is set:
Shows the current
●
Displays the remaining
temperature and the set
time counting down as
temperature of the upper
the oven heats up
oven as it heats up
TIMER: 2H 15M
BAKE
350f
Accept/Lock button
Locking the control panel
To lock, press and hold
●
ACCEPT for 1 sec. LOCKED
will display in the Oven Timer
function display. button
To unlock, press and hold
●
Menu
ACCEPT for 5 secs. LOCKED
button
will disappear from the
Oven function display.
1
2
3
4
5
7
6
Lower oven
Lower oven/
function knob
Right Hand display
BAKE BAKE
350f 350f
PROBE: 100 SET: 175
Function halo
Lower oven display
Clock
Shows the selected oven
If set:
●
function for the lower oven Shows the current time of day
Shows the current temperature
●
and the set temperature of the
lower oven as it heats up
Meat probe (shows in either display)
(see 'Using the meat probe' in
User guide)
BAKE
350f If a meat probe is in use (either oven):
Shows the current temperature and
PROBE: 100 SET: 175
the set temperature of the probe.
Automatic cooking
(see 'Automatic cooking' in User guide)
Cancel
Setting
If Automatic cooking is set:
button
selection
Shows the time until the cooking
buttons
starts and the time until the
cooking ends.

SETTING THE CLOCK

You set the clock within the user preference menu. To learn more about the user preference menu, refer to your User Guide.
Note: When you first switch your oven on at the wall you will initially be prompted to set the time. If you do not wish to set the time
at this stage, press CANCEL to exit the clock setting. If you want to set the clock later, follow the steps under 'To change the time'.
When the oven is first switched on at the wall
SET TIME
1 The display will flash 24h
8
2 Press PLUS or MINUS to scroll
between 24H and 12H.
Press ACCEPT to confirm.
To change the time (within the user preference menu)
9
!0
!1
1 Press and hold MENU for a
few seconds to enter the user
preference menu.
To change the clock settings
In the user preference menu you can also change between 12H and 24H.
Refer to your User guide to learn more about this feature.
Lower oven

CONDITION THE OVEN

Temperature
shuttle knob
It is important to condition both ovens before using it for cooking and baking. Conditioning will burn off any manufacturing residues
and ensure that you get the best results right from the start.
You can condition both ovens at the same time. Use the appropriate oven knobs.
1 Make sure you have removed any packaging and any cable ties used to secure the shelving during transit.
2 Make sure you have set the clock.
3 Make sure all the shelves are fitted.
Temperature halo
4 Rotate the upper oven function knob clockwise
to select BAKE function.
The halo will glow orange.
●
Each function has a preset temperature.
●
The oven will start heating at the BAKE
preset temperature of 350 F.
5 Rotate the upper oven temperature shuttle knob clockwise to increase the temperature to 400
The halo will glow white, while the oven is heating up.
●
The oven display will show the actual and set temperatures.
●
When the oven has reached set temperature, the display reverts to that temperature, a tone will sound and the halo will turn orange.
●
24h SET TIME 0 : 00 0
3 The display will flash either 0:00
(if 12H set) or 00:00 (if 24H set).
Press PLUS or MINUS to adjust the time.
13:45 SET TIME
1 : 45 3
2 Press PLUS to select SET TIME.
The current set time will flash.
3 Press PLUS or MINUS to adjust
the time.
OFF
14 : 1 5
BAKE
350f
Using the temperature shuttle knob:
Rotate the temperature knob to the right to increase the temperature.
●
Release the knob and it automatically returns to the OFF position.
●
Rotate the temperature knob to the left to decrease the temperature.
●
Release the knob and it automatically returns to the OFF position.
●
Holding the knob to the right or the left will speed up the increments
●
that the temperature increases or decreases by.
IMPORTANT!
The knob only rotates a certain amount in either direction.
Do not force the knob to rotate further.
Actual
Set
Temp Temp
14 : 1 5
BAKE
115 400f
1 : 1 5 3
13:45
SET TIME
4 Press ACCEPT to confirm.
The time is now set and will
show in the display.
1 : 1 5 3
SET TIME 14:45
4 Press ACCEPT to confirm.
The time is now set and will
show in the display.
-
+
BAKE
400f
o F for 30 minutes.
continued >
