  • Page 1 & QUICK USER GUIDE...

  • Page 2: Table Of Contents

    Table of Contents Safety instruction Waste disposal Environmental protection Battery note Front panel / Rear panel Remote control (RCU) / Buttons Information about RCU and batteries First installation / Installation wizard OSD display Product description Declaration of conformity Important Please read this manual carefully and keep it. This document may only be reprinted or copied in whole or in part with the express,written approval of the manufacturer.

  • Page 3: Safety Instruction

    1.1 Safety instruction This device complies with international safety standards. Before commissioning, please read the safety instructions carefully and •keep the operating instructions within easy reach. •Observe the warnings on the device and in the operating instructions. •Never allow children to use electrical appliances unattended. Environmental conditions: Protect the device from moisture and heat and set it no direct sunlight.

  • Page 4: Waste Disposal

    Intended use: The digital receiver is used to receive digital TV or Radio programs in the private sector. It is exclusively intended for the stated purpose and may only be used for it. This includes the observance of all information in this manual, especially the safety instructions.Any other use is considered improper and can lead to property damage, possibly even personal injury.

  • Page 5: Front Panel / Rear Panel

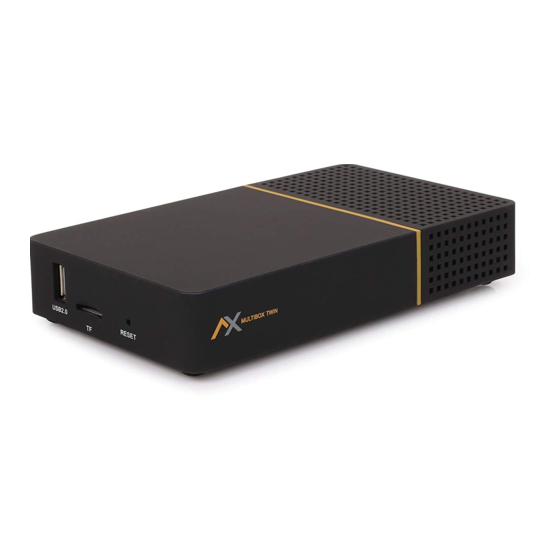

    USB 2.0 Host TF card reader Reset This device is available in 2 variations: TWIN-SAT with 2x S2X tuner or COMBO with S2 + C / T2 hybrid tuner. The front panel for AX MULTIBOX COMBO differs from the one shown above.

  • Page 6: Remote Control (Rcu)/Buttons

    3.1 Remote Control (RCU)/Buttons On / Off button (operation / standby) Turn sound on / off Select audio track Audio Audio Select Subtitle 1.,- Setting the screen aspect PQRS WXYZ Help button List 1.,- Numeric keys for program selection and Menu alphanumeric input during programming (1-0 / A-Z)
  • Page 7 Return to the previous channel information about the current program Navigate (up / down / right / left) Menu confirmation button Show program list (up / down) Electronic program guide EPG Exit EXIT - exit from the function Audio 1.,- Each key has a specific function that can be assigned differently depending on the menu...

  • Page 8: Information About Rcu And Batteries

    3.2 RCU and battery information 1. Open the battery cover in the direction of the batteries by the arrows and remove them upwards 2. Insert the two batteries into the battery compartment as shown in the picture Pay attention to the correct polarity when inserting the batteries! Follow these instructions to avoid damage or leakage of the battery: DO NOT use old and new batteries at the same time!

  • Page 9: First Installation / Installation Wizard

    4.1 First Installation The first time you use this receiver, an auto-installation wizard starts and guides you through initial programming. Press the RED button to change the language. First choose an input (HDMI or JACK). Use the up / down buttons on the remote control to select and confirm your selection with the OK button.
  • Page 10 Now select the language using the up / down buttons on the remote control and confirm your choice with the OK button. Tnow your receiver starts up basic settings wizard. Press the OK button on the remote control to go to the next step. Select now with the buttons up / down on the remote control if you want to start the wizard of basic functions or cancel the wizard.
  • Page 11 In the next menu you can configure Tuner A. Here you program the settings of your satellite system, whether you use 1, 2 or more LNBs. You can do it automatically or manually. E.g:If you are using 2 LNBs (Astra 19.2 ° and Hotbird 13 °), do the setup in reverse if switching between 2 satellites is done via the DiSEqC signal.
  • Page 12 Now, using the buttons on the remote control, if you want to load the pre-installed list of programs at the top or if you want to scan the satellite, select: Search. If you have selected "default Astra (13-19e) ...", the receiver will load a pre-installed and sorted list of programs.
  • Page 13 "Yes". Press the OK button on the remote control to continue. After successfully connecting to the Internet and the router, a message will appear that AX MULTIBOX is now connected to the Internet. To continue, press the OK button on the remote control.

  • Page 14: Osd Display

    5.1 OSD display When switching programs with "Ch. + "/" Ch. - "or after pressing the OK button on the remote control, the following program information screen appears: Time and duration of the Current broadcast current broadcast (from / to / minutes) Timeline / position of the Next broadcast current program...

  • Page 15: Product Description

    6.1 Product description Linux (Enigma 2) 4K / UHD (2160p) 2xDVB-S2X or DVB-S2 + DVB-T2/C, H.265 (Twin or Combo) Multiboot E2 Linux OS OpenGL ES 2.0 / 1.1 CPU: ARM Cortex A53 (ARMv7) 15 000 DMIPS, 4x 1,6 GHz GPU Mali 450, Hisilicon HI3798MV200 DDR3 RAM 1 GB eMMC Flash 8 GB High Dynamic Range (HDR / HDR10)

  • Page 16: Declaration Of Conformity

    Szczecińska 1 W 72-003 Dobra Poland declares that the AX MULTIBOX TWIN / COMBO device complies with the essential requirements and other relevant provisions of the EU Directive. A declaration of conformity may be requested from the manufacturer or distributor at any time.

This manual is also suitable for:

Multibox combo

Table of Contents
