ARANI LED WALL PACK 10 Installation Manual

LED WALL PACK 10
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
— To prevent personal injury or product damage only licensed electricians should install.
— To avoid electric shock or component damage disconnect power before attempting installation or servicing.
— This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state and local electric codes
and safety standards.— Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death,
property damage and/or product malfunction.— To prevent product malfunction and/or electrical shock this product must be properly
grounded.
— This luminaire is designed to operate in ambient temperatures ranging from -40°C to 50°C.

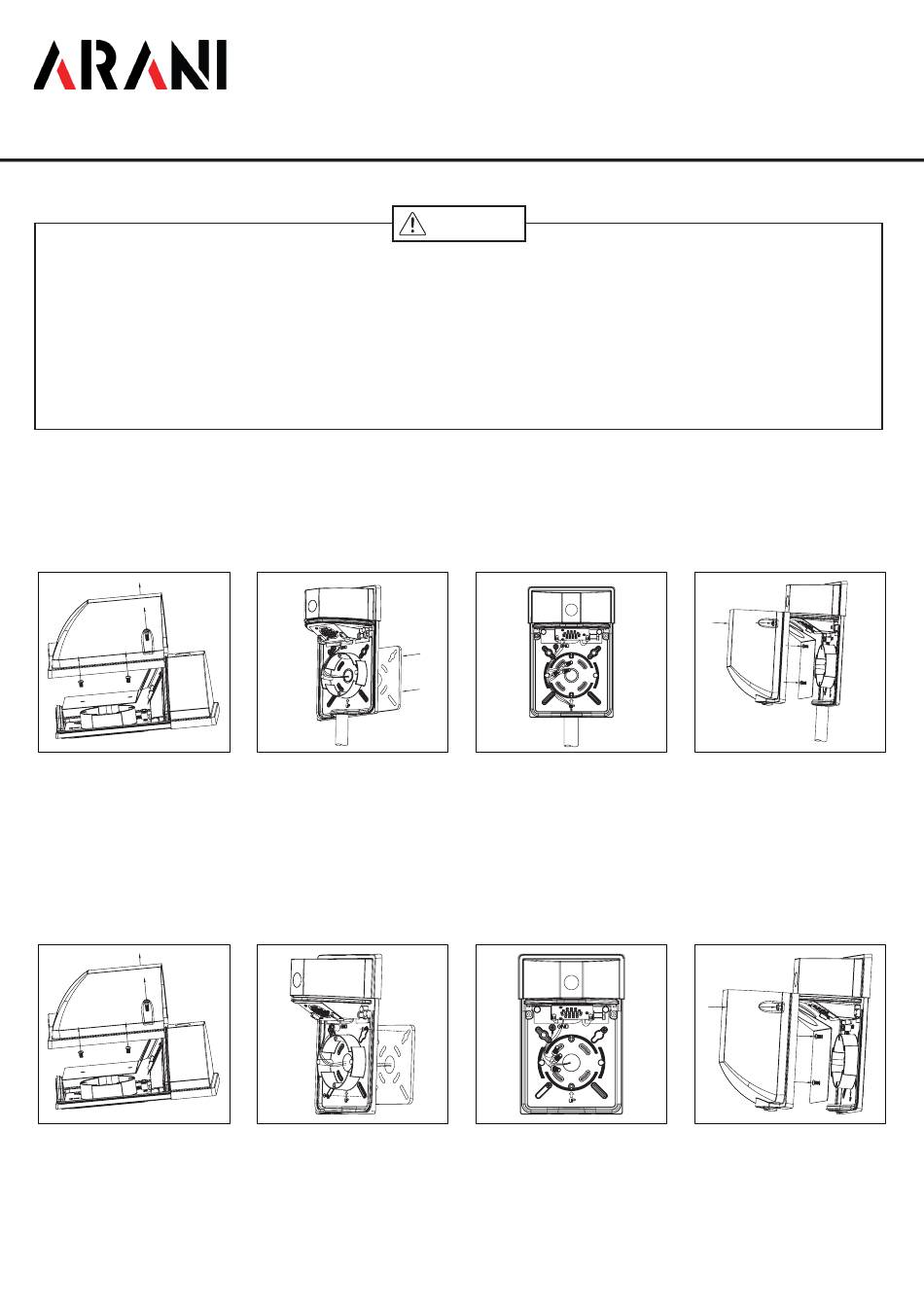

Installation
1. Mounting with a 1/2" conduit at the bottom
1. Removing the len by loosening the
two screws aside the len, removing the
reflector by loosening the two screws .
2. Mounting with Junction Box
1. Removing the len by loosening the
two screws aside the len, removing the
reflector by loosening the two screws .
WARNING
2. Remove the threaded plug from
the bottom, Plug the 1/2" conduit into
the fixture, konck out 2 screw holes on the
back housing and attach the fixture on
the wall with proper screws, use the
supplied gasket for a weather tight seal.
2. Knock out the 2 screw holes and
the holes in the center of the back
housing, Plug the wires from the J-BOX
into the fixture through the center hole,
and attach the fixture to the J-box with
proper screws. use the supplied gasket
for a weather tight seal.
3. Connect Black for line, White for
Neutral and bare wire for Ground to
complete the wiring.
3. Connect Black for line, White for
Neutral and bare wire for Ground to
complete the wiring.
Installation Guide
4. Replace the reflector and lens
carefully by reversing procedure
used to remove it.
4. Replace the reflector and lens
carefully by reversing procedure
used to remove it.
