ARANI CL12-24W-xxK-WH-V3 Installation Sheet

PAGE 1: INSTALLATION - CL12-24W-xxK-WH-V3 PAGE 1: INSTALLATION - CL12-24W-xxK-WH-V3
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
— To prevent personal injury or product damage only licensed electricians should install.
— To avoid electric shock or component damage disconnect power before attempting installation or servicing.
— To prevent product malfunction and/or electrical shock this product must be properly grounded.
— This luminaire is designed to operate in ambient temperatures ranging from -20°C to 40°C.
— Input voltage range: 120VAC. If the input voltage exceeds this range, it may cause light failure. Please make sure to operate under correct the input voltage.
— Suitable for damp locations IP20
— Please keep the light xture away from any corrosive substance. Please clean it with damps or dry cloth.

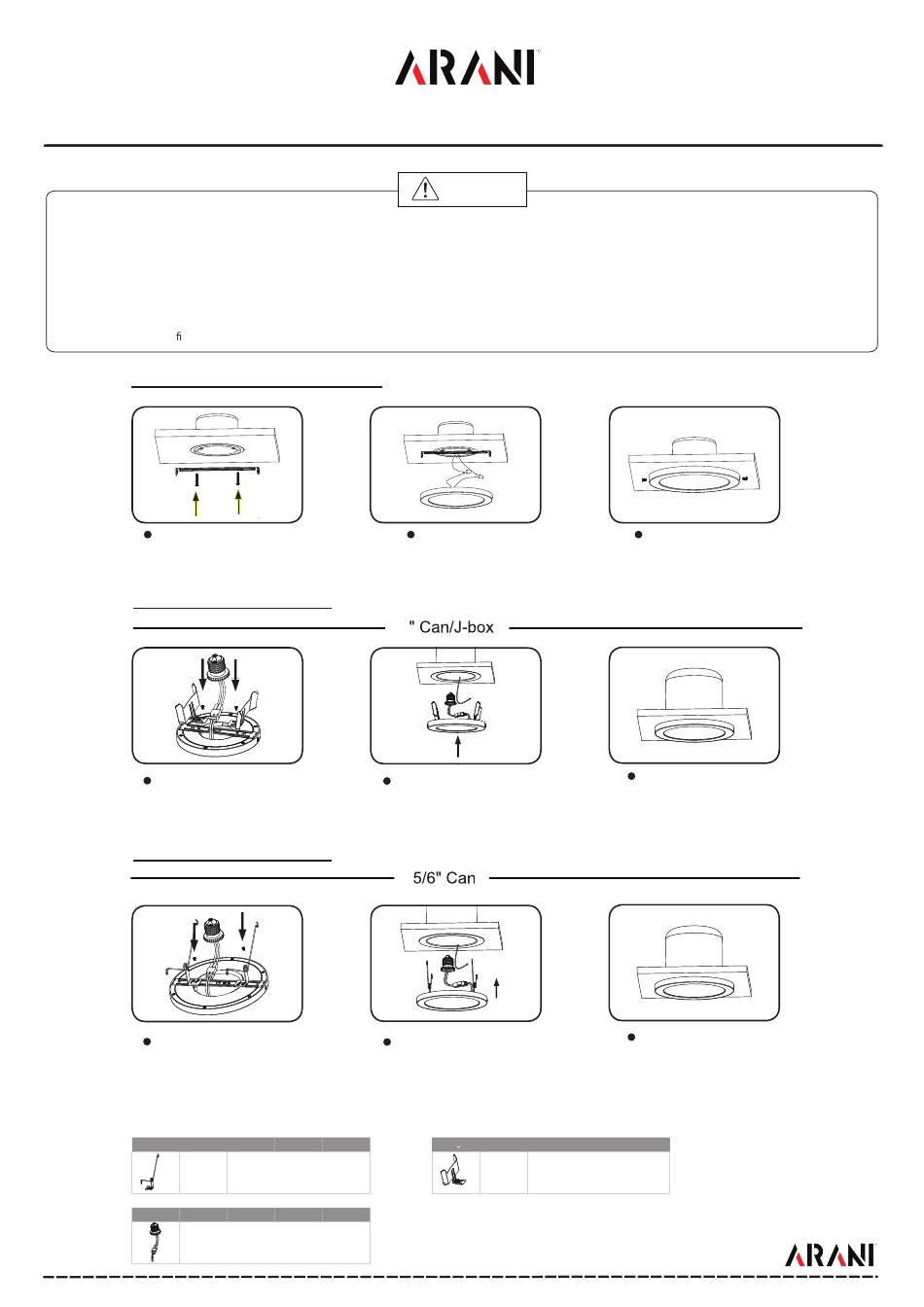

Surface mounting installation
Fix the bracket on terminal box.
1
Embedded installation
Remove trim and existing lamp
1
from recessed fixtrue.
Embeded in installation
Remove trim and existing lamp
1
from recessed fixtrue.
EXTRA KITS
5''
Accessories
5''
Accessories
2
4
Screw E26 socket adapter into
2
scoket in the housing.
Screw E26 scoket adapter into
2
scoket in the housing.
7'' 9'' 12''
X 2
7'' 9'' 12''
X 1
WARNING WARNING
Connect the wires.
5'' 7'' 9''
Accessories
X 2
www.arani.ca | (888) 992-7264 | service@arani.ca
Fix the lamp on the
3
bracket tightly
Press the friction blade to
3
insert the lamp into the
housing and restore power.
Press the friction blade to
3
insert the lamp into the
housing and restore power.
12''
