Introduction
This instruction manual explains how to configure a Nox T3 sleep apnea testing device in KOEO
for Sleep SMART.
KOEO Support Phone Number
888-505-0280 extension 4006
KOEO Support E-mail
support@koeo.com
KOEO Login
app.koeo.com
( Please Use Google Chrome)
Connecting the T3 Device to a Computer
To connect a T3 device to a computer you will need to access the USB connector on the device.
The USB connector is located under the battery lid making it inaccessible and tamper proof for
children.

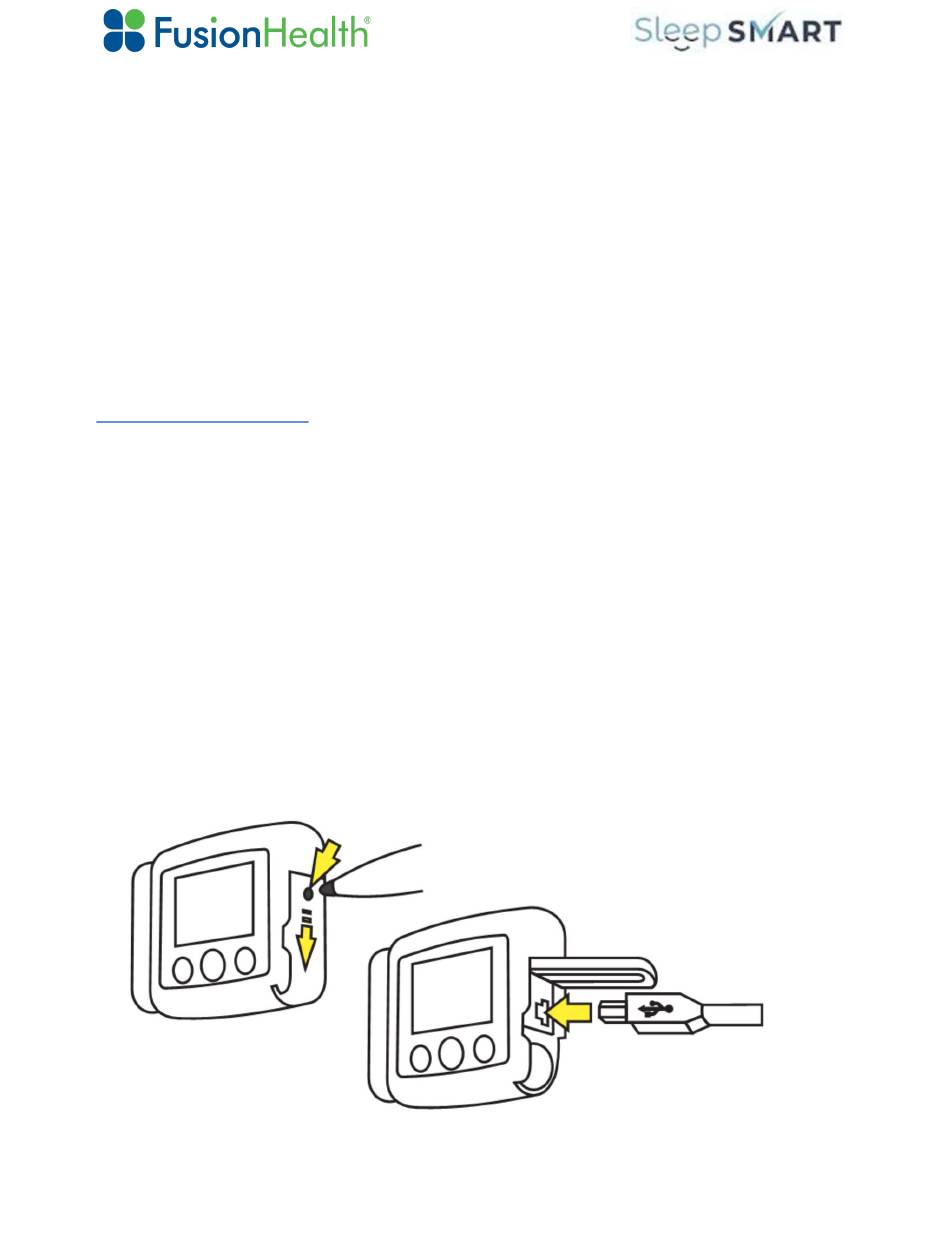

To open the battery lid, press on the battery lid pin with the device provided in the kit, a pen, or
a similar tool. Then slide the battery lid down and towards the bottom of the device. The T3
device connects to the computer with a mini USB cable. The battery does not need to be
inserted while the device is connected to the computer.
1
Advertisement
Related Manuals for FusionHealth Sleep SMART Nox T3
Summary of Contents for FusionHealth Sleep SMART Nox T3
- Page 1 Introduction This instruction manual explains how to configure a Nox T3 sleep apnea testing device in KOEO for Sleep SMART. KOEO Support Phone Number 888-505-0280 extension 4006 KOEO Support E-mail support@koeo.com KOEO Login app.koeo.com ( Please Use Google Chrome) Connecting the T3 Device to a Computer To connect a T3 device to a computer you will need to access the USB connector on the device.
- Page 2 When the T3 device is connected to the computer the device display lights up and shows a message indicating that the device is connected to the computer. To configure a T3 device or to download a recording you will now need to start the KOEO Sleep SMART Process.
- Page 3 Starting a Nox T3 Sleep Apnea Test for in KOEO Step 1: Launch the SleepSMART Process ↴ Step 2: Create a New Patient (New Subject) Do not enter the subject’s name or Date of Birth. Instead enter the following fields: First: Sleep SMART...
- Page 4 Step 3: T3 Setup Task in KOEO Click on Tasks at the Left of the screen (Arrow #1) Click on T3 Setup Task in KOEO ( Arrow #2) ● Click on underlined T 3 Setup (Arrow #3) ● Click on Open KOEO Interactive Tool ( Arrow #4) The KOEO Interactive Tool (KIT) is an application to help with the management of the Nox T3 device, and to assist with uploading testing data, and must be already installed on the computer...
- Page 5 Step 4: Login and Locate the T3 Setup Task in KIT The T3 Device must be connected via a mini USB cable to the computer at this point. The next step configures the T3 Device. Step 5: T3 Setup Task in KIT ●...
- Page 6 The T3 device is now configured for recording and the device and sensors may be applied to the subject. Next: ● Remove the USB Cable from the T3 device ● Insert a new AA battery into the T3 device ● Close the battery lid ●...
- Page 7 Some options may appear only after an interval of several hours, during which FusionHealth staff inspect or oversee scoring of the Nox T3 data that has been uploaded.
- Page 8 ● Redo Upload T3 Data : A systems issue has arisen with the data transfer, and testing data need to be uploaded with another attempt. ● Repeat T3 Setup : This is a “repeat testing task”, indicating that a scorer has invalidated the test due to signal quality issues, and the test will need to be repeated, if possible.
- Page 9 If the “ Excluded - Print Report” task appears, this means the T3 test data is valid and the subject is NOT eligible for the Run-In Night in Sleep SMART. Click on the E xcluded - Print Report task in KOEO, and the following appears: There are two options available (see red arrows at the top right of the above image): ●...
