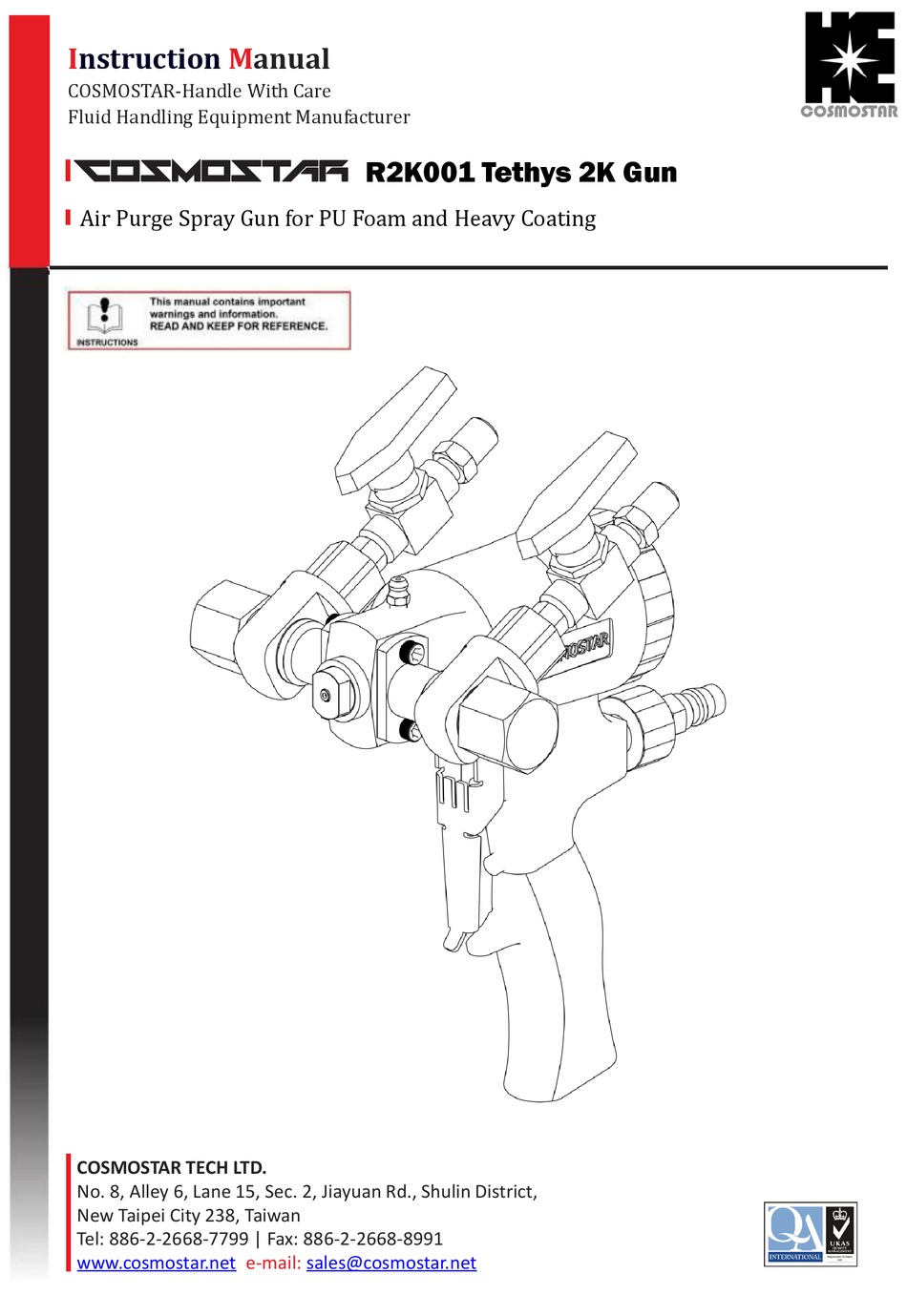

Instruction
Manual
COSMOSTAR-Handle With Care
Fluid Handling Equipment Manufacturer
COSMOST AR
Air Purge Spray Gun for PU Foam and Heavy Coating
COSMOSTAR TECH LTD.
No. 8, Alley 6, Lane 15, Sec. 2, Jiayuan Rd., Shulin District,
New Taipei City 238, Taiwan
Tel: 886-2-2668-7799 | Fax: 886-2-2668-8991
www.cosmostar.net
R2K001 Tethys 2K Gun
e-mail:
sales@cosmostar.net
COSMOSTAR
1
Advertisement
Table of Contents
Related Manuals for COSMOSTAR R2K001
Summary of Contents for COSMOSTAR R2K001
- Page 1 COSMOSTAR-Handle With Care COSMOSTAR Fluid Handling Equipment Manufacturer COSMOST AR R2K001 Tethys 2K Gun Air Purge Spray Gun for PU Foam and Heavy Coating COSMOSTAR TECH LTD. No. 8, Alley 6, Lane 15, Sec. 2, Jiayuan Rd., Shulin District, New Taipei City 238, Taiwan Tel: 886-2-2668-7799 | Fax: 886-2-2668-8991 www.cosmostar.net...
- Page 2 • Consult your fluid supplier to determine the conductivity or resistivity of your fluid. • If there is any static sparking or you feel an electric shock while using this equipment, stop pumping immediately. Do not use the equipment until you identify and correct the problem. COSMOSTAR www.cosmostar.net sales@cosmostar.net Fluid Handling Equipment...
- Page 3 • Do not smoke in the work area. • Do not turn on or off any lights witch in the work area while operating or if fumes are present. • Do not operate a gasoline engine in the work area. COSMOSTAR www.cosmostar.net sales@cosmostar.net Fluid Handling Equipment...
- Page 4 Parts R2K001 Tethys 2K Gun Overall View Key: A Side Fluid Inlet Valve Handle B Side Fluid Inlet Valve Piston Safety Lock Air Cap Nozzle Air Inlet Trigger Grease Fitting COSMOSTAR www.cosmostar.net sales@cosmostar.net Fluid Handling Equipment...
-
Page 5: Piston Safety Lock
Engage Safety Lock Push safety lock handle in and turn clockwise to lock the trigger Disengage Safety Lock Push safety lock handle in and turn counter- clockwise to unlock the trigger COSMOSTAR www.cosmostar.net sales@cosmostar.net Fluid Handling Equipment... -
Page 6: Pressure Relief Procedure
5. Pull off the air hose from air inlet or turn off the air supply from system 6. Trigger the gun until all air inside gun removed 7. Engage Safety Lock 3. Disengage Safety Lock COSMOSTAR www.cosmostar.net sales@cosmostar.net Fluid Handling Equipment... -
Page 7: Maintenance
6. Push item B (35,36) to get out the filter (39) 7. Rinse the filter (39) using suitable solvent 3. Use correct size drill to clean tip and the side of mixing chamber. 8. After doing all the cleaning, reassemble the gun. COSMOSTAR www.cosmostar.net sales@cosmostar.net Fluid Handling Equipment... - Page 8 Parts R2K001 Tethys 2K Gun Parts Drawing COSMOSTAR www.cosmostar.net sales@cosmostar.net Fluid Handling Equipment...
- Page 9 Parts R2K001 Tethys 2K Gun Parts List Part No. Description Qty. Part No. Description Qty. R2K00101 Body R2K00124 Fluid Chamber Seal R2K00102 O-Ring R2K00125 Fluid Chamber R2K00103 Piston R2K00126 Filter Housing Cap R2K00104 O-Ring R2K00127 Valve Spool R2K00105 Piston Stop...
- Page 10 Accessories Tip Set R2K001-GT - General Flat Spray Tip Set Ref No. Part No. Description Qty. R2K00115XXX Round Tip R2K00116 O-Ring R2K00117 Air Cap R2K00131 Gasket R2K001-ST - Standard Flat Spray Tip Set Part No. Description Qty. R2K00115B Air Cap...
- Page 11 Round Tip Kits Part No. Nozzle Size (mm) R2K00115-0.5 Tip Ø 0.5 R2K00115-1 Tip Ø 1 R2K00115-1.5 Tip Ø 1.5 R2K00115-1.8 Tip Ø 1.8 R2K00115-2 Tip Ø 2 R2K00115-2.5 Tip Ø 2.5 R2K00115-3 Tip Ø 3 COSMOSTAR www.cosmostar.net sales@cosmostar.net Fluid Handling Equipment...
-
Page 12: O-Ring Repair Kits
Repair Kits O-Ring Repair Kits Ref No. Part No. Description Qty. R2K00102 O-Ring R2K00104 O-Ring R2K00106 O-Ring R2K00108 O-Ring R2K00113 O-Ring R2K00116 O-Ring R2K00119 O-Ring R2K00121 O-Ring R2K00124 Fluid Chamber Seal R2K00131 Gasket R2K00135 O-Ring COSMOSTAR www.cosmostar.net sales@cosmostar.net Fluid Handling Equipment... -
Page 13: Technical Data
Minimum Air Input Pressure 5.6 bar (80 psi) Maximum Air Input Pressure 9.0 bar (130 psi) Air Inlet Size 1/4“ PT A Component Inlet Size 1/4“ or 3/8” B Component Inlet Size 1/4“ or 3/8” COSMOSTAR www.cosmostar.net sales@cosmostar.net Fluid Handling Equipment...
