TT­SF1
www.aerobits.pl
User Manual
TT­SF1 series
(TT­SF1a, TT­SF1b)
TT­SF1 is a high quality and low price OEM ADS­B/GNSS receiver/FLARM transceiver series operating at 1090MHz and
region dependent FLARM frequency. It is based on the proven FPGA­In­The­LoopTM technology, which is a unique com­
bination of a single­core processor and FPGA. The patented solution allows high­speed RF data processing with significantly
reduced number of electronic components. Simultaneous miniaturization of the module and its OEM nature open a wide range
of possible applications. Fast UART interface and easy configuration with AT­commands allows for the simple integration of
the module with the user's system. In addition, extra interfaces open the way to customize the firmware and extend the module
with non­standard functions. There are several communication interfaces, protocols and special functionalities available on
request.

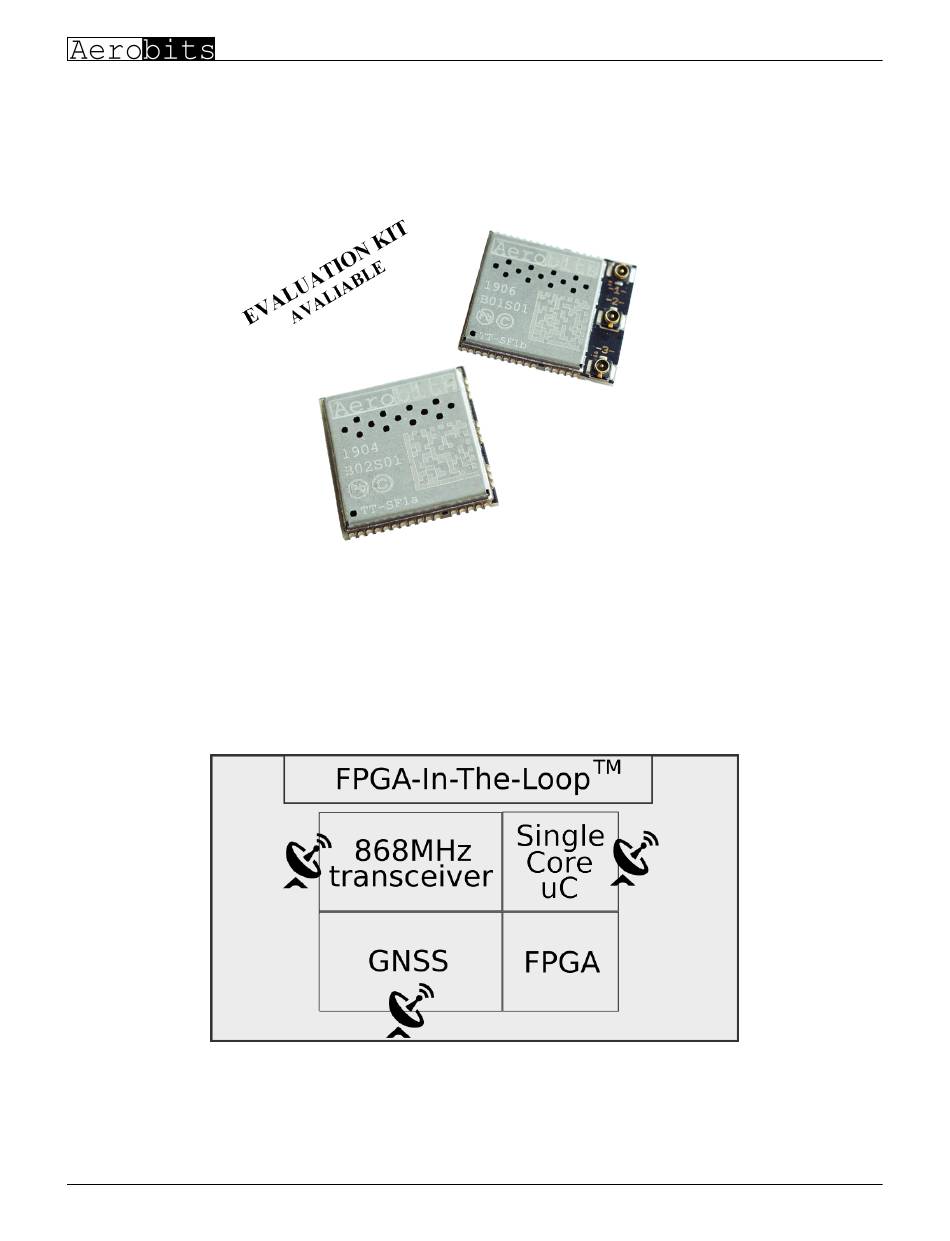

Figure 1: Overall system architecture.
1
Revision: 19­Nov­2020
Document Number: 190830
This document is subject to change without notice. For technical questions, contact:
support@aerobits.pl
