P
REMIER
INSTRUCTION MANUAL
CATALOGUE NUMBERS : DT TLK4C

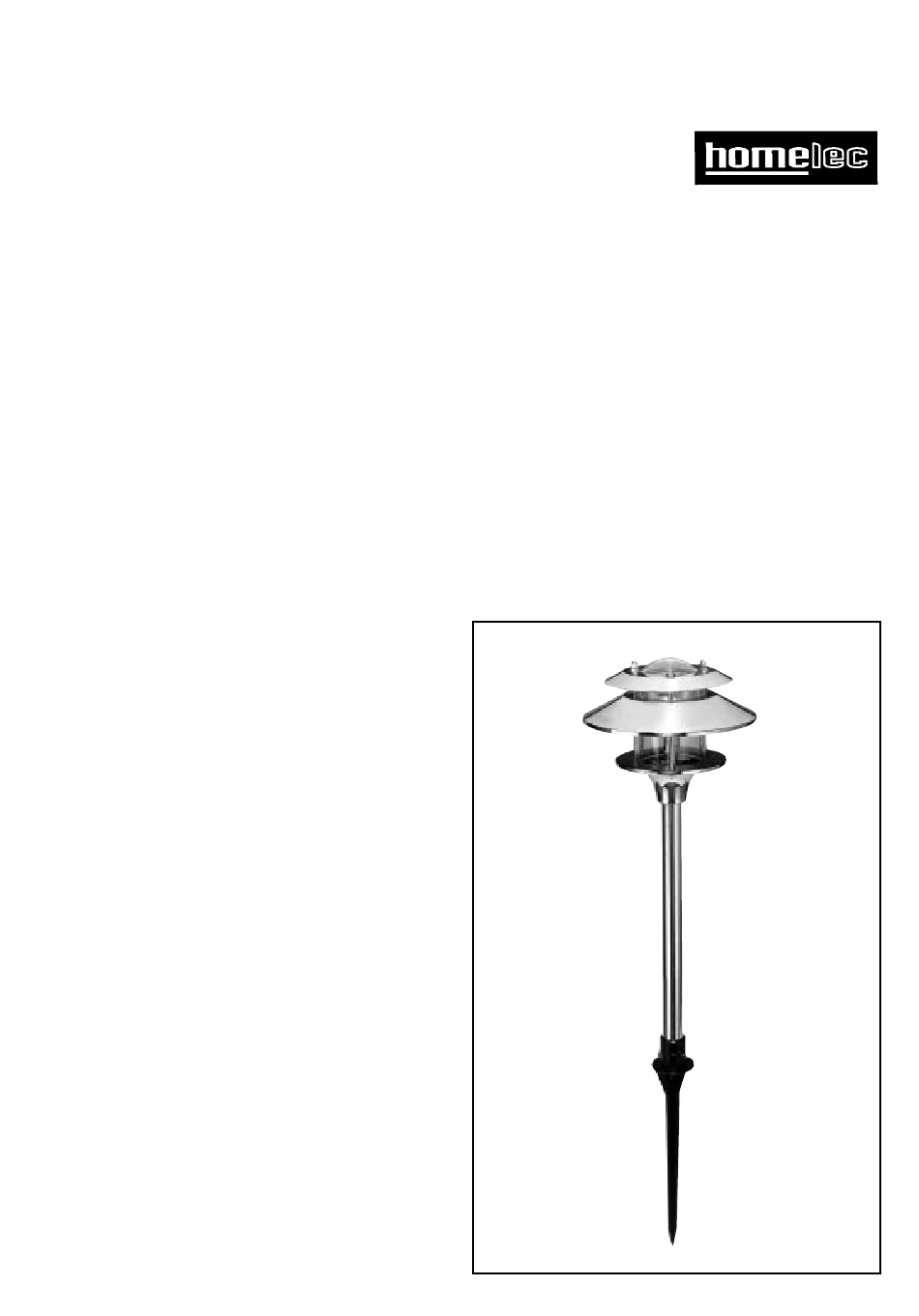

Thank you for your purchase of Premier Lights.
The Premier garden lighting range offers the ideal
lighting effect to any garden and features
weatherproof transformers that can be positioned
outside safely. The transformer is equipped with
a photoelectric cell which switches the lights on
at dusk and off at dawn. Keep a copy of these
instructions for future reference.
Please read these instructions fully
before commencing the installation:
SAFETY INSTRUCTIONS
• These lights are only to be connected to a 12V
low voltage lighting system.
• Only use either lights provided with this kit or
compatible lights from the Homelec range.
• Only use the transformer supplied or a
transformer from the Homelec Premier garden
lighting range.
• Disconnect the power before changing a lamp
and ensure the lamp is cool before handling.
• Ensure the cable is routed so as not to be a trip
hazard.
• Ensure that the wattage of all the lights
combined does not exceed the rating of the
transformer.
• The transformer must be plugged in indoors.
RANGE
• Only adjust the cable and lights when the power
is switched off.
• If in doubt, consult a qualified electrician.
1
90-OM1863
Advertisement
Related Manuals for Homelec Premier DT TLK4C
Summary of Contents for Homelec Premier DT TLK4C
- Page 1 • These lights are only to be connected to a 12V low voltage lighting system. • Only use either lights provided with this kit or compatible lights from the Homelec range. • Only use the transformer supplied or a transformer from the Homelec Premier garden lighting range.
- Page 2 Kit Contents : the terminal spikes to pierce the cable, holding AMLS-30 it in place. 4 Tier Lights 5. Repeat for the remaining Tier lights. 4 Threaded Cap 4 Inserts Ensure you have followed all of the steps 4 Ground Spikes above and the Tier lights are fully assembled 5 12W 12V Lamps and connected to the low voltage cable...
- Page 3 the screws provided. The screw locations are terminal screw heads. Replace the terminal to be positioned so they will slide onto the cover. slots on the rear of the transformer. Do not loop the low voltage lighting cable back to the transformer. 8 CM The transformer may now be plugged into an appropriate socket.
- Page 4 5 years for the transformer and within 10 years for the light Light Fittings fittings. If it does, Homelec undertake to repair or Lamp Voltage : 12V~ replace it provided it has been installed, used and Lamp rating : 12W max.
