P
REMIER

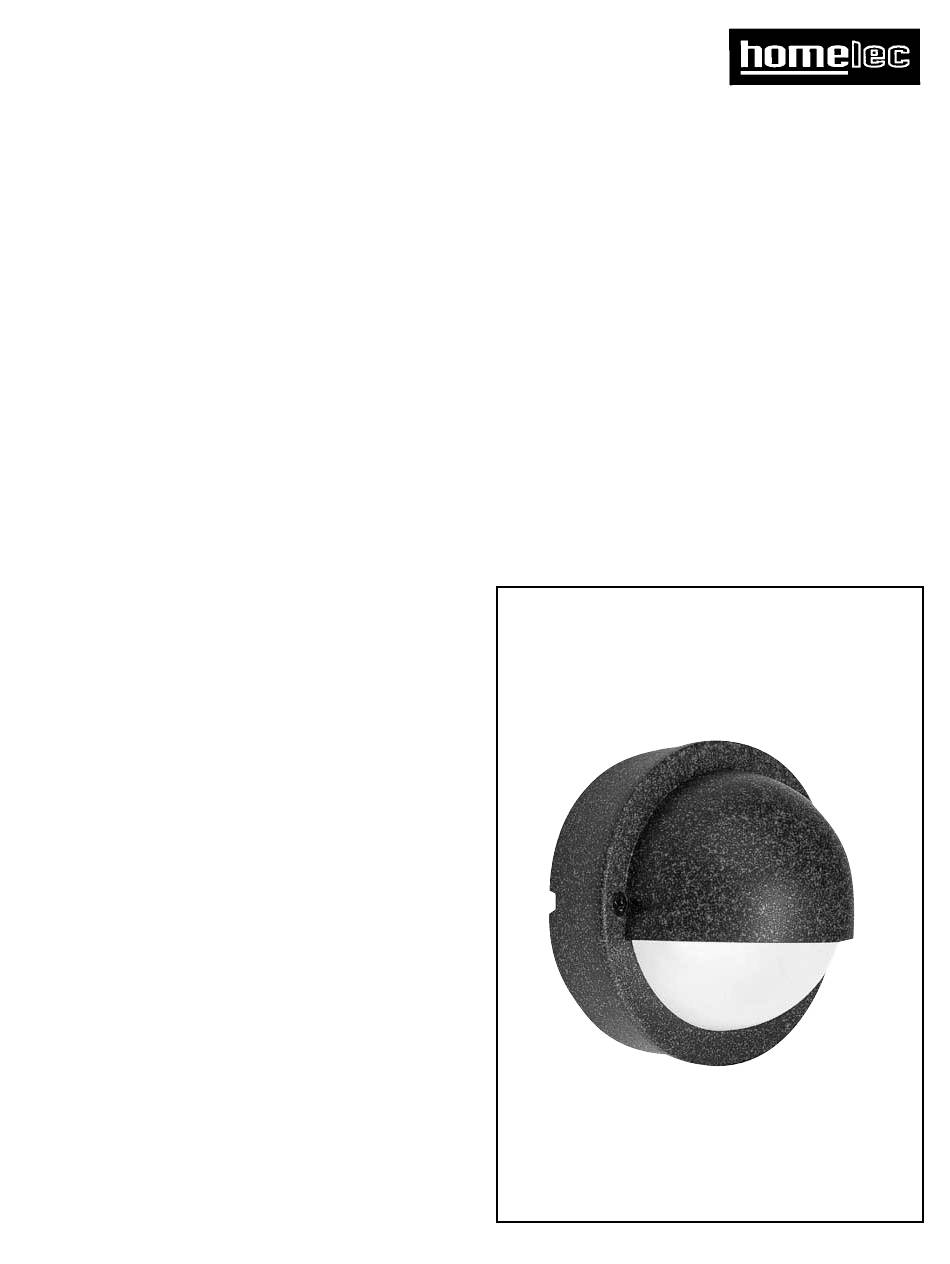

INSTRUCTION MANUAL
CATALOGUE NUMBERS : DT DLK4
Thank you for your purchase of Premier Lights.
The Premier garden lighting range offers the ideal
lighting effect to any garden and feature
weatherproof transformers that can be positioned
outside safely. The transformer is equipped with
a photo-cell which switches the lights on at dusk
and off at dawn. Keep a copy of these
instructions for future reference.
Please read these instructions fully
before commencing the installation:
SAFETY INSTRUCTIONS
• These lights are only to be connected to a 12V
low voltage lighting system.
• Only use either lights provided with this kit or
compatible lights from the Homelec range.
• Only use the transformer supplied or a
transformer from the Homelec Premier garden
lighting range.
• Disconnect the power before changing a lamp
and ensure the lamp is cool before handling.
• Ensure the cable is routed so as not to be a trip
hazard.
• Ensure that the wattage of all the lights
combined does not exceed the rating of the
transformer.
RANGE
• The transformer must be plugged in indoors.
• Only adjust the cable and lights when the power
is switched off.
• If in doubt, consult a qualified electrician.
1
90-OM1864
Advertisement
Table of Contents
Related Manuals for Homelec PREMIER RANGE
Summary of Contents for Homelec PREMIER RANGE
- Page 1 • These lights are only to be connected to a 12V low voltage lighting system. • Only use either lights provided with this kit or compatible lights from the Homelec range. • Only use the transformer supplied or a transformer from the Homelec Premier garden lighting range.
- Page 2 Kit Contents : centre of each core of the cable. Whilst AWLG-3 holding the cable in place, screw on the 4 Deck Lights threaded cap. The cap will force the terminal 4 Threaded Caps spikes to pierce the cable, holding it in place. 4 Inserts 6.
- Page 3 terminal screw. Tighten the screw ensuring that all strands of the wire at captured under the 8 CM terminal screw heads. Replace the terminal cover. Mounting Slots Do not loop the low voltage cable back to the transformer. 2. You may hang the transformer indoors or outdoors on a wall, fence, post etc.
- Page 4 5 years for the transformer and within 10 years for the light Light Fittings fittings. If it does, Homelec undertake to repair or Lamp Voltage : 12V~ replace it provided it has been installed, used and Lamp rating : 7W max.
