VentCool

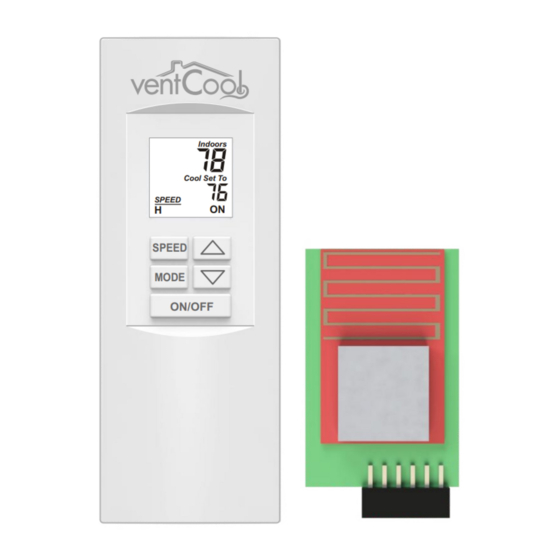

The VentCool whole house fan remote control and plug-in module is an add-on to be used with a
WTT wall control. The remote control uses temperature or a timer to control the whole house fan.
The wireless plug-in module is installed in the back of the WTT wall control.
In temperature control mode, the homeowner turns on the whole house fan and sets the comfort
temperature. The VentCool whole house fan will cool the home until the indoor temperature drops
just below the comfort temperature then turn off. A built-in safety timer will turn the fan off the
following morning in case the homeowner forgets. In timer control mode, the homeowner turns the
fan on and sets the timer interval. The fan will run for the time set then turn off. The RTT wireless
remote is also used to adjust the fan speed.
COMPONENTS:
1 - VentCool RTT Whole House Fan Wireless Remote [RTT] (p/n 580011706)
1 - VentCool WLM Plug-In Wireless Module [WLM] (p/n 580011707)
1 - AAA Battery kit.
1 - Installation and User Manual (780104505)
**A VentCool Wall Control [WTT] p/n (580022703) must be installed for this plug-in module
and wireless remote to function properly.
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE PROCEEDING WITH THE INSTALLATION.
This device MUST be installed by a qualified agency in accordance with the manufacturer's installation instructions. The definition of
a qualified agency is: any individual, firm, corporation or company which either in person or through a representative is engaged in,
and is responsible for, the installation and operation of HVAC appliances, who is experienced in such work, familiar with all the
precautions required, and has complied with all the requirements of the authority having jurisdiction.
Installed By:_______________________________________
INSTALLATION AND USER MANUAL
WHOLE HOUSE FAN
WIRELESS REMOTE AND PLUG-IN MODULE
Indoors
Cool Set To
SPEED
ON
H
SPEED
MODE
ON/OFF
Please retain these instructions after installation.
www.fieldcontrols.com
WLM-RTT
R
Phone: _____________________
Installation Date: _____________
P/N 780104505 2/20 Rev A
Advertisement
Table of Contents
Related Manuals for VentCool WLM-RTT
Summary of Contents for VentCool WLM-RTT
- Page 1 MODE ON/OFF The VentCool whole house fan remote control and plug-in module is an add-on to be used with a WTT wall control. The remote control uses temperature or a timer to control the whole house fan. The wireless plug-in module is installed in the back of the WTT wall control.
- Page 2 INSTALLATION SECTION This manual is separated into two different sections: one for the Homeowner and one for the Installer. The Homeowner section contains information on features and operation of the wall control. Step 4. Reattach the WTT and Wall Plate Step 1.
- Page 3 HOMEOWNER SECTION Before operating your whole house fan, be sure to open windows and close fireplace dampers. Refer to your whole house fan manual for more information regarding operating your fan. The RTT Wireless Remote works just like the WTT wall control and controls the whole house fan using temperature or timer control from anywhere in your home.
- Page 4 RTT Wireless Remote Control. 580011706 Replacement WLM wireless plug-in module. 580011707 Replacement RTT wireless remote control. Cable 50 FT PNP50 VentCool 580011550 PNP50 This manual may be downloaded and printed from the Field Controls website (www.fieldcontrols.com) WARRANTY For warranty information about this or any Field Controls product, visit: www.fieldcontrols.com...
