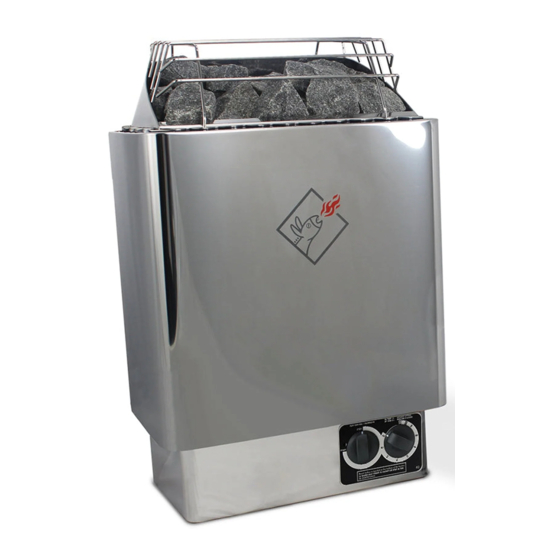

- Page 1 HomeHeat Series Sauna Heaters Installation and Operation Manual MODELS H300/KIP30B H450/KIP45B H600/KIP60B H800/KIP80B LISTED 6J21 SAUNA HEATER IMPORTANT! This manual must be left with owner, manager, or operator of sauna after it is used by electrician! 1502-0720 800-957-2862 www.HotAssSaunas.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. WARNINGS! ............3 2. -
Page 3: Warnings
WARNINGS! Do not smoke, use alcohol, or exercise in the sauna! Do not exceed 30-minutes in the sauna at one time, as excessive exposure can be harmful to health. The sauna should not be used as an endurance test! Persons with poor health should consult their physicians before using the sauna! Avoid fire, do not place any combustible material over the sauna heater (towels, bathing suits, wooden bucket or dipper)! Use only clean water on the stones - do not use pool or spa water, as chlorine... -
Page 4: Installation Of Wall Model Heater
INSTALLATION OF WALL MODEL HEATER 1. Remove heater from carton and attach Note! If connection to heater will be made hater to wall with supplied screws. at a later time, bring flex into sauna room Use 2”x4” backing behind heater. 4 - 6”... -
Page 5: Sauna Timer
SAUNA TIMER Heaters have a 60-minute timer (0 to large For example, if you set the timer knob at 1 on the dial), and if you wish to use the number 3 setting, the sauna heater will full 60-minute cycle, turn the timer knob turn on 3 hours later, and will be ready for past the first 1 to number 2 or 3 on the useage in 3 and 1/2 hours (allowing for 1/2... - Page 6 THE SAUNA ROOM SHALL BE PROVIDED WITH PROPER VENTILATION. WALL-MOUNTED HEATERS-MINIMUM CLEARANCES, MIN-MAX SPACE, AND ADEQUATE VENTILATION DESCRIBED BELOW. VENTILATION, MIN SQ. IN. INLET AND OUTLET 3 kW and 4.5 kW 10 sq.in. 6 kW and 8kW 20 sq.in. 20” FENCE 2’’...
- Page 7 HEATER MINIMUM CLEARANCES CORNER FENCE INSTALLATION 3” min 4” min 5” min 2” min WOOD FENCE Figure 2. HEATER MINIMUM CLEARANCES CENTER WALL FENCE INSTALLATION 2” min 2” min WOOD FENCE Figure 2a. MODEL INPUT FLOOR AREA SAUNA ROOM MIN. SPACING FROM ADJACENT SURFACES Min.
- Page 8 Internal wiring only 240V 1 PHASE HEATER H300/KIP30B, H450/KIP45B, H600/KIP60B, H800/KIP80B TIMER LIMIT CONTROL GROUND LINE 1 LINE 2 Figure 4. SAUNA HEATER (240V) WITH BUILT IN CONTROLS Model Amps Voltage Phase Wire Size H300/KIP30B 12.5 H450/KIP45B 18.8 H600/KIP60B H800/KIP80B 33.3 Table 2.
- Page 9 THERMOSTAT BULB LOCATION (HEATERS WITH BUILT IN CONTROLS) CEILING 12” THERMOSTAT BULB THERMOSTAT BULB COVER WOOD MOLDING NAILS THERMOSTAT TUBING (CAPILARY TUBING) 12” 7” to 12” HIGH LIMIT SWITCH Figure 4a.
-
Page 10: Testing Sauna Heater
TESTING SAUNA HEATER C. If sauna heater operates, but sauna room does not come up to sauna 1. After sauna heater has been properly temperature (160-185°F, (70-85°C)) wired, according to appropriate wiring normal temperature: diagram and local codes, turn sauna 1. -
Page 11: High Limit Control
HIGH LIMIT CONTROL Note! Only persons authorized to carry out electrical installations can reset the high limit control! Each heater is equipped with a high limit control which is a safety device. If an abnormal heating condition should occur, the heater will automatically shut off, and it will not come on again until it cools. -
Page 12: Room Construction - General Information
ROOM CONSTRUCTION - benches; light bulb should not exceed 75 watts. GENERAL INFORMATION L. ACCESSORIES A. FRAMING Bucket, dipper thermometer 2” x 4” any suitable wood material, are essential. Thermometer should 16” o.c. be placed over the Sauna heater, 6” B. -
Page 13: Maintenance Instructions
MAINTENANCE INSTRUCTIONS 1. Use only clean water on sauna stones. 8. In new construction, a floor drain Do not use spa or pool water as it will should also be provided, especially destroy your heater. in commercial saunas for sanitary 2. -
Page 14: Warnings
WARNINGS! Do not smoke, use alcohol, or exercise in the sauna! Do not exceed 30-minutes in the sauna at one time, as excessive exposure can be harmful to health. The sauna should not be used as an endurance test! Persons with poor health should consult their physicians before using the sauna! Avoid fire, do not place any combustible material over the sauna heater (towels, bathing suits, wooden bucket or dipper)! Use only clean water on the stones - do not use pool or spa water, as chlorine... -
Page 15: Guarantee
GUARANTEE This HOTASS SAUNA heater is guaranteed the stones; only one or two dippers full for one-year from date of purchase, and of water should be poured over the hot includes all heater parts such as heating stones at one time. This guarantee will be elements, controls, contactors, etc.
