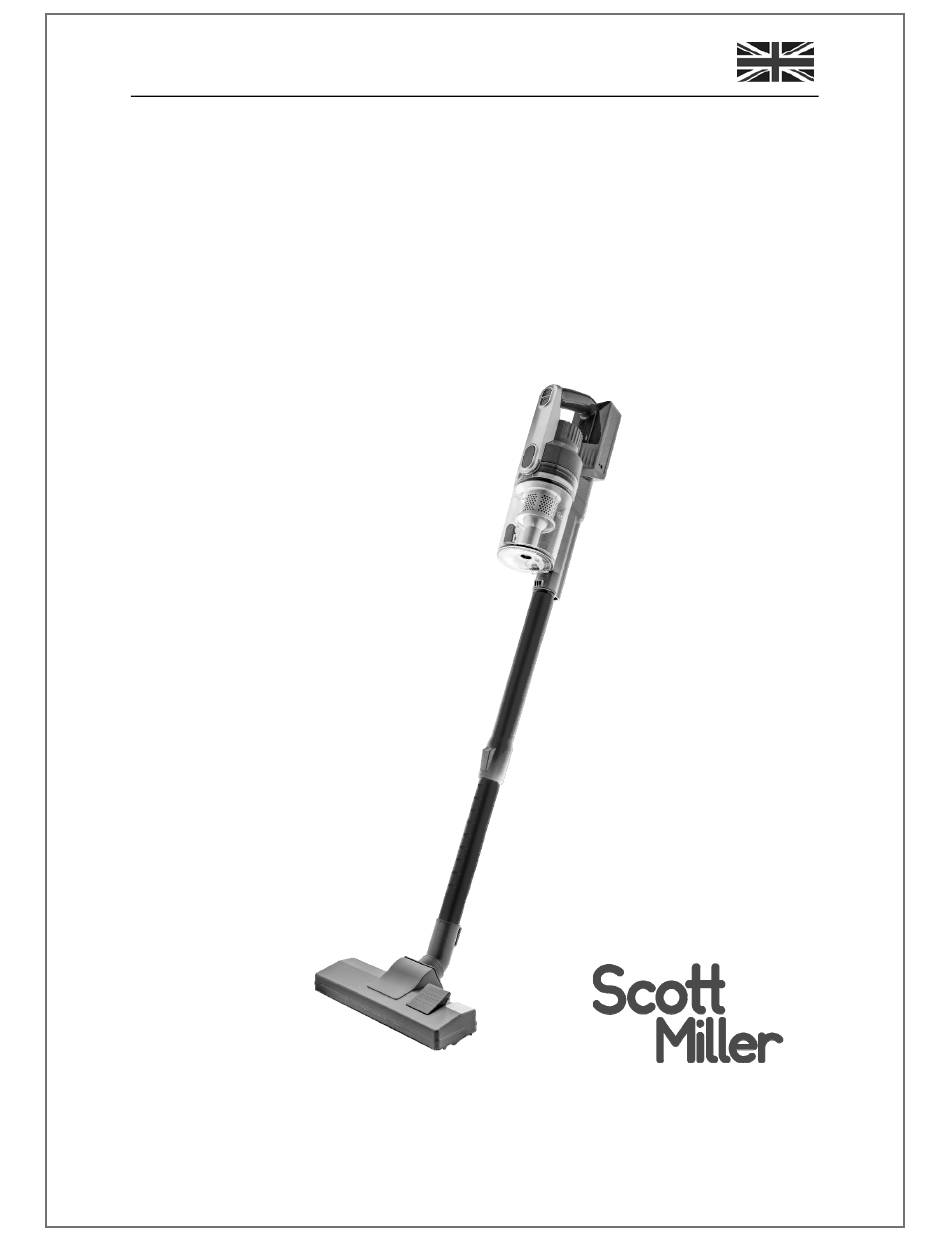

- Page 1 SCOTT MILLER PRODUCT USER MANUAL Instruction Manual & Product E‐Warranty Scott Miller Cordless Vacuum Cleaner Model: SM‐V3000 P a g e 1 | 11 ...
- Page 2 SCOTT MILLER PRODUCT USER MANUAL 1 Important Safety Instructions 2 READ ALL INSTRUCTIONS BEFORE USE AND RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. 3 Overview of the appliance 4 1. On/Off button 2. Power Switch (Ⅰ)(Ⅱ) 5 3. Motor Release Button 4. Dust Bin 5. Dust Bin Opening Button 6. Aluminium Tube 6 7. Connection to charge the battery and Charge Indicator Important safety Instructions To avoid potentially fatal electric shocks: Do not charge or use the appliance outdoors. Never use the vacuum cleaner if the cable, plug or casing are damaged. To avoid unforeseen circumstances, only use ...
- Page 3 SCOTT MILLER PRODUCT USER MANUAL Do not use the vacuum for liquid, water or similar particles. This appliance is not suitable for use with inflammable and explosive substances or chemical and aggressive liquids. Always store the appliance indoors. To prevent accidents, keep the appliance in a dry location when not in use. Under extreme conditions, leaks in the battery cells may occur. In the event that battery fluid comes into contact with skin or eyes, the affected area must be rinsed off with water immediately. Immediately contact a physician. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are under adult supervision or given instruction concerning the ...
- Page 4 SCOTT MILLER PRODUCT USER MANUAL 3. Attach the dust bin to the main motor of the vacuum cleaner. 4. Use the connector to connect the vacuum cleaner to the aluminium tube. 5. The oval brush and the crevice tool can be connect directly to the vacuum cleaner. Charging your vacuum cleaner Note: The vacuum cleaner will not work when being charged. 1. Place the unit or vacuum cleaner near an electrical power outlet and plug in the charger. 2. Connect the charger to the charging socket. The red colour battery status indicator lamp will light up. When it is fully charged, the battery status indicator lamp will turns green. The charging time is approximately 4.5 hours. Using the vacuum cleaner Note: Please remove the charger before using the vacuum cleaner. If the vacuum cleaner is in charging or low battery status, the vacuum cleaner will not work properly. 1. The vacuum cleaner can be independently, with crevice nozzle or other connection converter enabled brushes. 2.
- Page 5 SCOTT MILLER PRODUCT USER MANUAL 3. Press down on the release button of dust container to remove the dust container from the vacuum cleaner. 4. Take out the upper dust HEPA filter and the plastic cyclone filter. Then wash them and let it to dry. After drying completely, put back the HEPA filter in the machine. Do not use a washing machine to clean the HEPA filter assembly. Do not use a hair dryer to dry it. Air dry only. 5. Replace the HEPA filter assembly back into the dust container and push the HEPA filter assembly to fix firmly in the dust bin. NEVER operate vacuum cleaner without HEPA filter assembly in place. ...
-
Page 6: Troubleshooting Guide
SCOTT MILLER PRODUCT USER MANUAL TROUBLESHOOTING GUIDE PROBLEM POSSIBLE REASON POSSIBLE SOLUTION Vacuum cleaner does Battery discharged. Charge unit. not work Dead battery (battery won’t hold Call customer service or dispose of unit. charge). Wipe and clean dirt from connector. Connector between the unit and Check fuse or breaker, replace the charger are dirty. fuse/reset breaker. No power in electrical outlet Unplug charger. supplying transformer. Activate the system with the charger. Charger is plugged in. System is cut off. Vacuum cleaner Dust container is full. 1. Empty dust container cannot pick‐up dust; HEPA filter needs cleaning or 2. Remove dust filter assembly and check for suction power replacement. object(s) in suction inlet and remove. Clean or become weak Unit needs recharging. replace dust filter assembly. 3. Charge unit. Dust leak from Dust container is full. ... - Page 7 SCOTT MILLER PRODUCT USER MANUAL Important Make sure that dust filter has completely air dried before replacing back in the vacuum cleaner. Warning Please remove the floor brush from the unit before cleaning it. WARNING: Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable ...
- Page 8 SCOTT MILLER PRODUCT USER MANUAL PRODUCT E‐WARRANTY | SM‐V3000 WARRANTY COVERAGE AND WARRANTY COVERAGE TIME PERIODS The SCOTT MILLER (M) SDN. BHD. (“SCOTT MILLER”) warranty covers the repair and replacements on certain parts of this vacuum cleaner and the cost of workmanship of the parts for a period of twelve (12) months from the date of purchase. This limited warranty covers substantial defects in materials and workmanship of the Vacuum Cleaner, provided that the Vacuum Cleaner is operated and maintained properly and in conformity with the user’s manual. The warranty period becomes effective from the date ...
- Page 9 SCOTT MILLER PRODUCT USER MANUAL RESULT FROM BREACH OF THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY. THIS EXCLUSION OF CONSEQUENTIAL AND INCIDENTAL DAMAGES SHALL BE INDEPENDENT OF ANY FAILURE OF THE ESSENTIAL PURPOSE OF ANY WARRANTY, AND THIS EXCLUSION SHALL SURVIVE ANY DETERMINATION THAT THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY HAS FAILED OF ITS ESSENTIAL PURPOSE. This warranty does not cover, and in no event shall result in SCOTT MILLER being liable for towing charges, travel, lodging, or any other expense incurred due to the loss of use of the product or by any other reasons that may be raised. ...
- Page 10 SCOTT MILLER PRODUCT USER MANUAL EVENTS DISCHARGING SCOTT MILLER FROM OBLIGATION UNDER WARRANTY The following shall completely discharge SCOTT MILLER from any express or implied warranty obligation to repair or replace anything and void this warranty: misuse, neglect, collision, accidents, failure to provide routine maintenance (See User’s Manual), unauthorised alteration, acts of nature, damage from weather or the environment, theft, vandalism, tampering, fire, explosions and overloading the product. LEGAL REMEDIES Any action to enforce any portion of this limited warranty, or any implied warranty, must be commenced within six (6) months after expiration of the warranty coverage period designated ...
- Page 11 SCOTT MILLER PRODUCT USER MANUAL Innovation for Next Generation Living P a g e 11 | 11 ...
