Markers Smartpole HNH-19 Assembly

Fence Kit #HNH-19 includes:

160 ft Square Mesh Fence,
5 Stabilizing SmartPoles, 14
Flex SmartPoles, Installation
Accessories, 19 Ground Sockets
Tape Measure • String • Chalk or Spray Paint • Mallet or Drill • Sharp Scissors (if cutting is required)

A - Lay out fence line

Using tape measure lay out the radius. Chalk
or paint the line where fence will be installed.

B - Mark pole locations

Starting at foul line, mark 19 pole locations
approx. 8.5 ft. apart for each 160 ft. set.
Note: If using multiple sets, mark end locations
close together between each set. You can allow for
openings 2 ft. wide between sets for a gateway, or
keep them close for a fence with no gateway. (see
3 diagrams below)

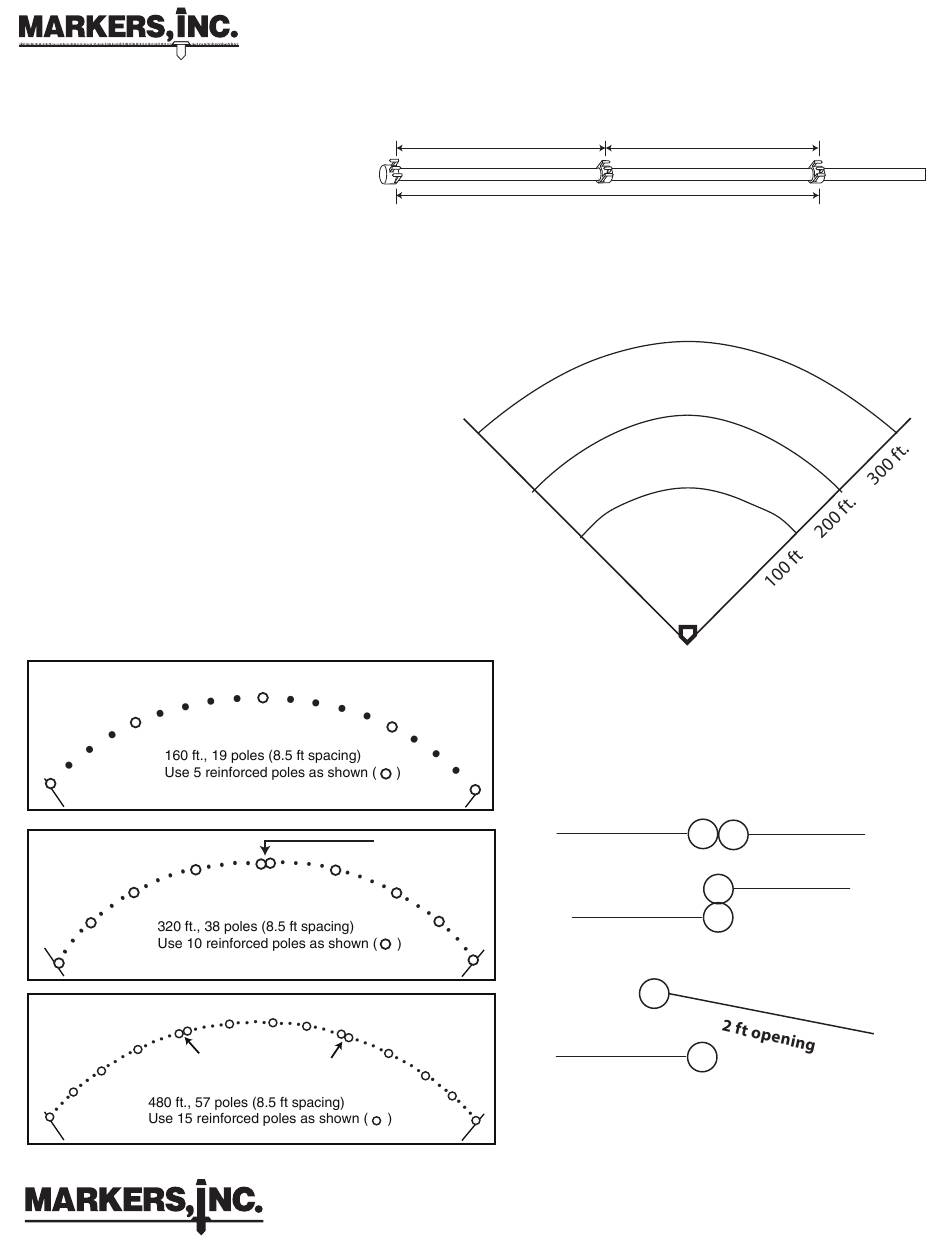

1 Set Pole Layout

100 ft. to Home Plate
Foul Line

2 Set Pole Layout

Set 1
200 ft. to Home Plate
Foul Line

3 Set Pole Layout

These can be (2) 2 ft.
Set 1
gateways if desired
300 ft. to Home Plate
Foul Line
SmartPole
Cap
Completed 60 inch Pole

YOU MAY ALSO NEED THE FOLLOWING TOOLS:

Foul Line
This can be a 2 ft.
gateway if desired
Set 2
Foul Line
Set 2
Set 3
Foul Line
1-800-969-5920
Hook'n'Hang Outfield Fence
TM

Assembly of SmartPoles

Note - for 48 inch fencing material, position the sleeves as shown -
middle hook on sleeves should point UP.
24"
48"
Suggested positions when installing 2 or
more fence rolls (L-R)
A - Continuous run - set end poles side by side
or tight overlap
First set
First set
B - Overlap gate - pass-thru.
First set
(OVER)
info@markersinc.com
Sleeve
24"
471 linear ft.
3 sets
314 linear ft.
2 sets
157 linear ft.
1 set
2nd Set
2nd Set
2nd Set
repeat as needed
for 3rd set
File: HNH Fence instr pg1 of 2 (2018)
www.markersinc.com
Sleeve
12" below ground
