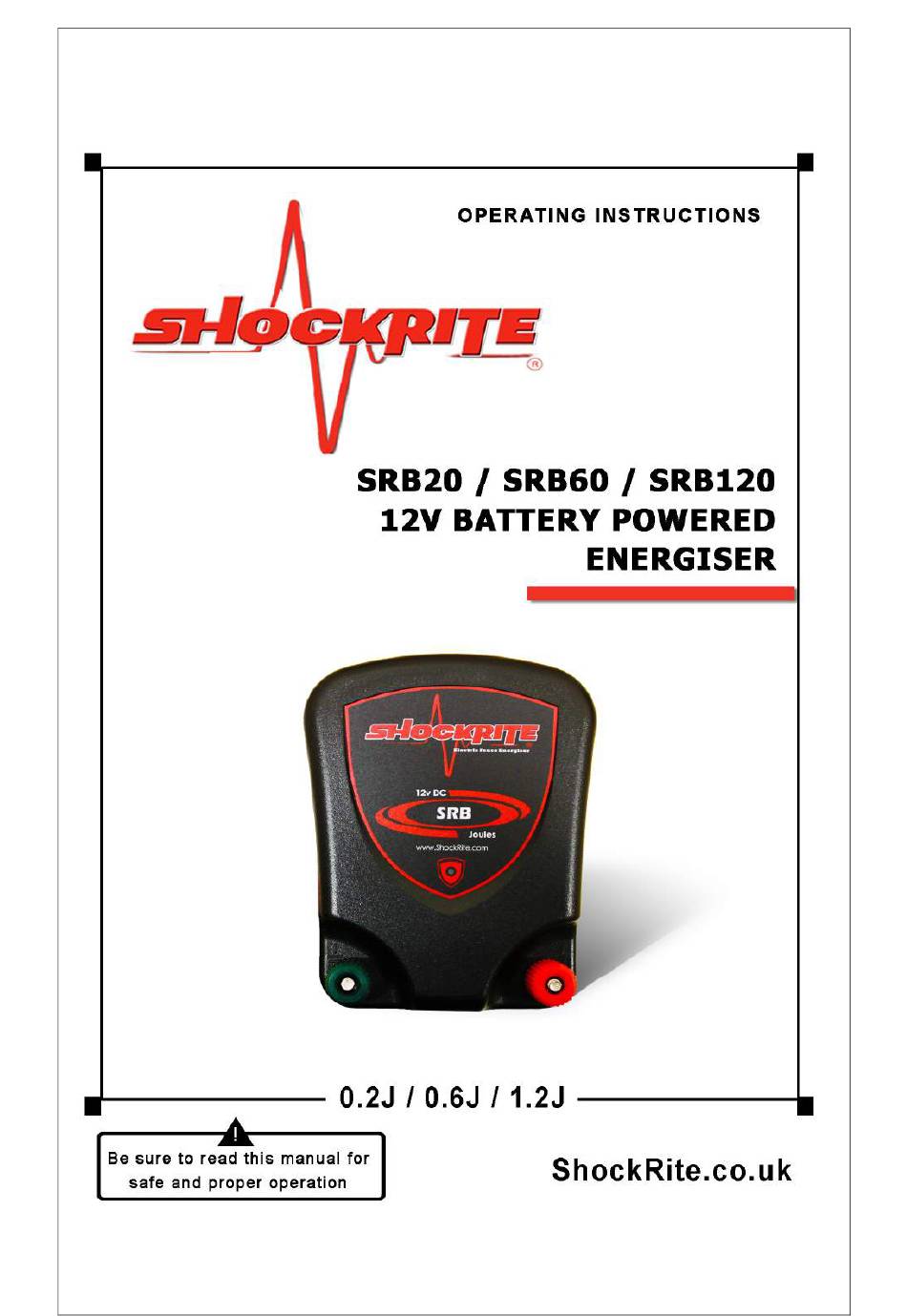

Summary of Contents for shockrite SRB20
- Page 2 Contents 1. Introduction................1 2. Safety Requirements and Regulations........1 3. Specification................3 4. Installation Guide..............4 5. Troubleshooting..............5 6. Guarantee................5 7. Contact Information.............6...
- Page 3 1. INTRODUCTION Thank you for buying a ShockRite electric fence energiser. This energiser has built-in lightning protection devices to reduce the risk of lightning damage, and has built-in RFI (Radio Frequency Interference) suppressed circuitry. If for any reason you are not happy with your purchase, please return the energiser to your dealer within 30 days of purchase and we will give you a full refund.
- Page 4 clearances should be not less than those shown below: Power Line Voltage Clearance (Voltage) (Metres) Under 1,000 Between 1,000 and 33,000 Over 33,000 If connecting leads and electric fence wires are installed near an overhead power line, their height above the ground should not exceed 3m. This height applies either side of the orthogonal projection of the outermost conductors of the power line on the ground surface, for a distance of: •...
- Page 5 3. SPECIFICATION 1. Pulse/ Low Battery Indicator 5. On/Off Switch 2. Earth Terminal 6. Earth Stake 3. Fence Terminal 7. Wing Bolt 4. Battery Connection Cable Contents: 1 x Battery operated Energiser 1 x Fence Wire 1 x Earth Wire 1 x Earth Stake/Mount &...
- Page 6 500 Ohm Power Number Energy Energy Source Volts Consumption Load Length (Joules) (Joules) Volts (km) SRB20 0.25 8,500 25mA 4,500 SRB60 10,000 60mA 4,500 SRB120 10,000 120mA 5,600 **Distance is based on single strand high tensile galvanized wire (no vegetation) 4.
- Page 7 Step 4: Connecting to Power Supply Connect the red crocodile clip to the “+” on the battery and the black crocodile clip to the “-” on the battery. Recommended battery for energiser operation is a 85 Ah 12 volt Leisure battery. (Battery Not Included ) Step 5.
- Page 8 7. CONTACT INFORMATION If you have any further technical questions about our products, please contact us: McGrath Supplies Ltd - ShockRite 72 Derrybrick Road Carrickoughter Kesh Northern Ireland BT93 1BL Tel: 028 686 31323 E-mail: sales@shockrite.co.uk Website: www.shockrite.co.uk...
