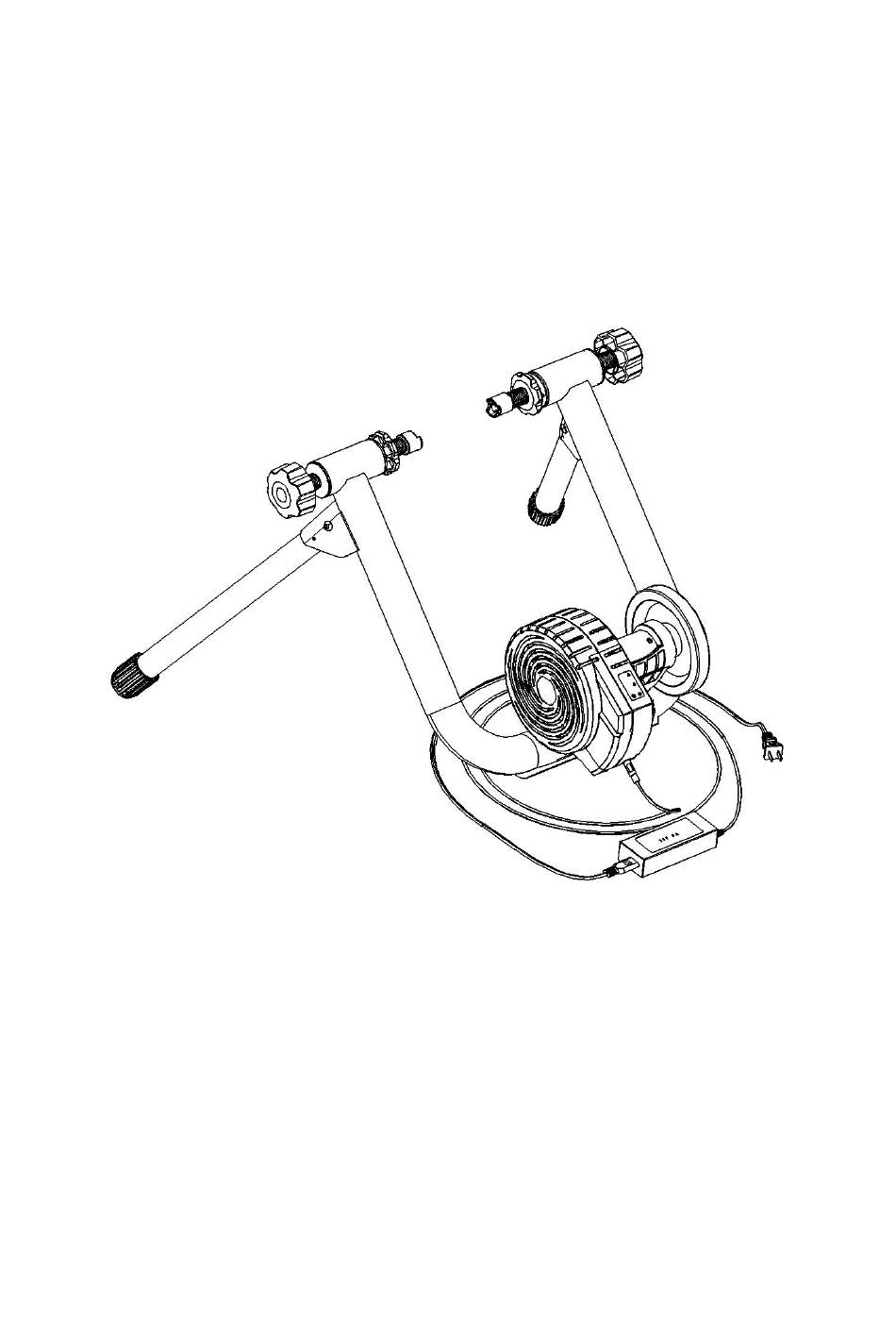

- Page 1 Operation Instructions Product Name: Smart Bike Trainer (DJS‐003) Product Model: TY‐DJS003 Jinhua Unisky Tools Co., Ltd.
- Page 2 Catalogue Warning After‐Sales Service Disclaimer Spare Parts List Installation Instructions 1、Bike Confirmation 2、Assembly of Bike Trainer and Damper 3、Bike Installation and Debugging Smart Training Maintenance Common Fault and Eliminating Methods Product Specification Parameters FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 3 installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following...
- Page 4 and prevent and avoid unnecessary accidents and injuries. ●Please replace and use our special quick release for the rear wheel of the bike before use, and carefully check whether all parts in the package are complete. ● Before use, please confirm that the product has been placed on firm ground, and the four‐foot pads on the feet touch the ground at the same time, to ensure that the product is stable and does not shake.
- Page 5 shake the bike to avoid falling or damaging the bike. ● Please do not disassemble or convert this product by yourself. ● Please use the original spare parts. If there is any problem with this product, please contact the authorized dealer of UNISKY. After‐Sales Service The products shall provide three guarantees of product quality within one year from the date of sale.
- Page 6 consumers themselves. 6. Damage caused by flood, fire, earthquake and other irresistible natural factors Tip: For products not covered by the Three Guarantees, the dealer shall provide paid maintenance services, and the consumer shall bear all costs for maintenance, replacement of parts, transportation, etc. Disclaimer ○...
- Page 7 Power Adaptor 12V‐4A Electromagnetic Coil Damper Hexagon Bolt M8*95 Lock Nut M8 Flat Washer φ8 ANT+ Receiver Front Wheel Fixing Seat Quick Release L‐Type Socket Spanner Installation Instructions Step 1. Bike Confirmation Before using the bike trainer, please confirm the specification of the bike that you want to use.
- Page 8 2‐1 Open the box and check all the parts and quantity according to the spare parts list. 2‐2 Put up the frame. 1）As shown in figure 1, put up the two A pipes of the bike trainer to the maximum position, place them on the working surface, and ensure that the movable pin of B cylinder slides into slot C.
- Page 9 3）As shown in Figure 3 above, hold the damper with the left hand and lift it slowly. Adjust the position of the screw hole of the cylindrical movable pin with the right hand, and then align the mouth of the adjusting screw with the screw hole of the cylindrical movable pin.
- Page 10 Note: during operation, hold the damper with one hand gently, and hold the cylindrical movable pin with the other hand to slide it from slot C to slot D. Pay attention to prevent hand injury during sliding! Step 3. Bike Installation and Debugging 1）Place the bike trainer on stable ground, and adjust the rotary knobs on both sides of the bike trainer so that the distance between the axle sleeve A and the axle sleeve B is greater than the length of the bike quick release, as shown in Figure 5.
- Page 11 3）Adjust the knobs on both sides to make the bike tire roughly in the middle of the roller, as shown in Fig. 6. The knobs on both sides should be tightened to prevent the bike from shaking easily, and then lock the two nuts on the screw rods on both sides for fixing.
- Page 12 5）As shown in Figure 7, the standard front‐wheel stand is fixed under the front wheel of the bike to reduce the left and right wing of the front wheel and improve the comfort while riding. Note: If you are not familiar with the correct operation of disassembling the rear wheel of the bike, please consult the bike shop nearby or refer to your bike instructions;...
- Page 13 Smart Training 1 Bike Trainer Pairing This bike trainer needs to be connected with external power supply before it can be used (When using PC, you need to plug the ANT+ receiver into the USB port of the computer). Take out the power adapter in the packing box, connect the DC plug to the bike trainer first, and then connect the power supply.
- Page 14 power and other items. The advantages of using mobile phones or tablets are simple, clear, and convenient. At present, the game video training mode is not supported on mobile phones. This product can also be connected to ANT + riding stopwatch for use.
- Page 15 Connect the bike trainer to power, insert ANT+ USB disk into computer SUB port to receive the data between the trainer and computer. 3. Click the downloaded APP Zwift, and enter in. Register it if you are new for the APP, after this, login. Or you could login directly if you have already had an ID.
- Page 16 Maintenance The product can be folded for storage. Operation method: press down the two A pipes directly and tuck them in. Take care not to hurt your hands when folding and tucking. This product must be stored in a clean indoor environment that is dry, away from direct sunlight, fire, water, or other dangerous goods.
- Page 17 Check if the exposed counterweight wheel shakes and Excessive body vibration during use if the knobs and nuts on both sides of the bike trainer are loose. Check whether the tire pressure of a bicycle is in normal condition. Note: If the fault still cannot be eliminated, please contact the authorized dealer of UNISKY for assistance.
- Page 18 Riders Adaptable Bike Mode 26"、700C、28"、29." ≤68db（A‐Weight、1.5m、30Km/h） Noise Level ≤75℃ Casing Temperature Adaptable Third‐party Zwift, Onelap, Strava, etc. Riding Platforms Adaptable Smart ANT+ stopwatch, Computer, Tablet, Mobile phone, etc. Devices...
