User Manual

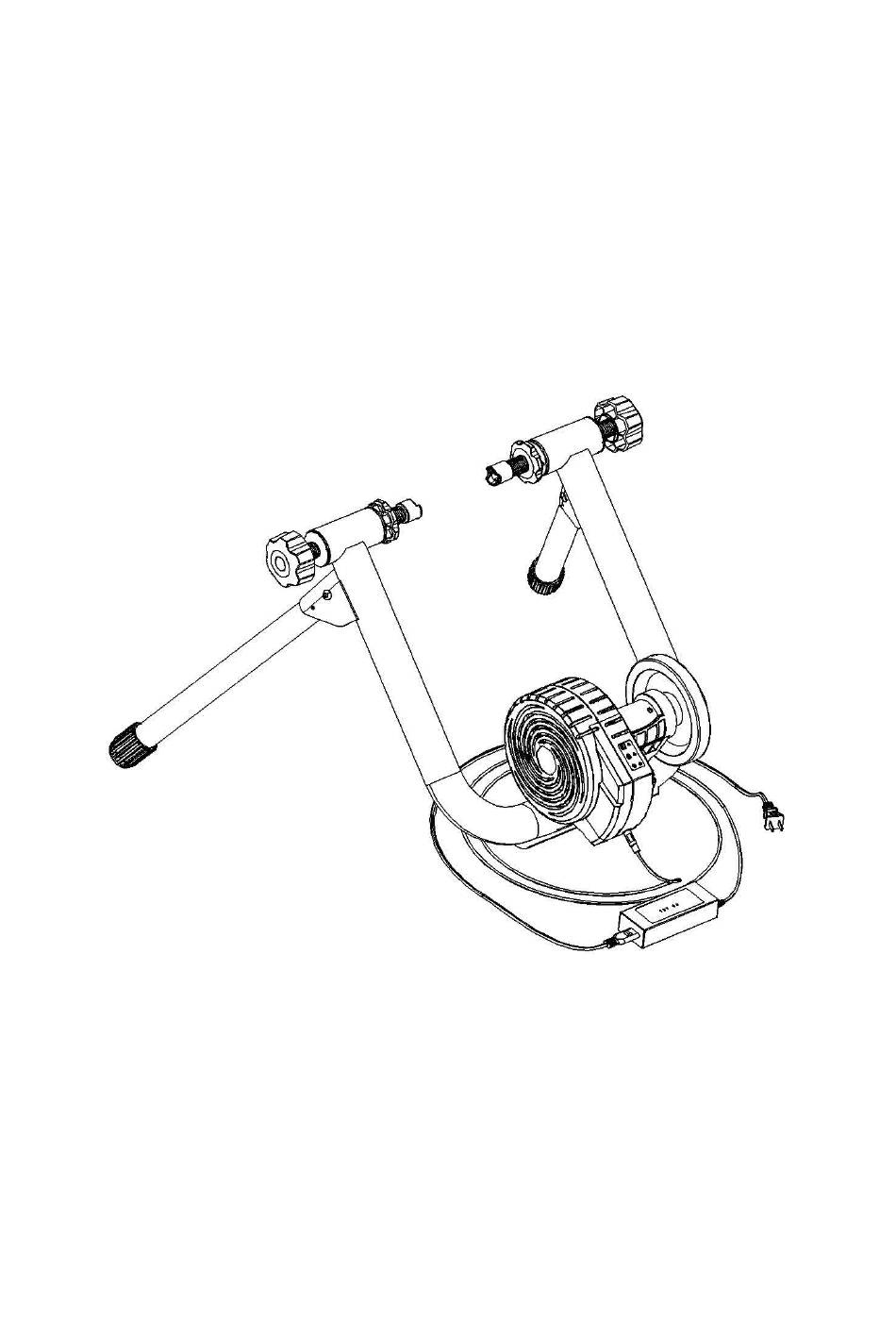

Product Name: Smart Bike Trainer
Product Model: TY-DJS003
Jinhua Unisky Tools Co., Ltd

Advertisement

loading
Need help?

Need help?

Do you have a question about the TY-DJS003 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jinhua Unisky Tools TY-DJS003

  • Page 1 User Manual Product Name: Smart Bike Trainer Product Model: TY-DJS003 Jinhua Unisky Tools Co., Ltd...
  • Page 2 Catalogue  Important Safety Instructions  FCC Statement  Warning  Disclaimer  Spare Parts List  Installation Instructions  Grounding Instructions  Smart Training  Maintenance  Common Fault and Eliminating Methods  Product Specification Parameters...
  • Page 3 Important Safety Instructions Read all instructions before using this appliance. DANGER – To reduce the risk of electric shock: 1) Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons: 1) An appliance should never be left unattended when plugged in.
  • Page 4 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5 Warning Thank you for purchasing UNISKY Smart Bike Trainer. Please read the User Manual carefully, especially the safety instructions, prior to initial use, and only use the indoor bike trainer as described in this User Manual. Non- compliance with the instructions may result in serious injury. The User Manual is an integral component of the indoor bike trainer.
  • Page 6 Disclaimer ○ UNISKY shall not be responsible for the failure of software /application/equipment of the third party manufacturer, and shall not be liable for any damage to the bike trainer caused by software not developed or recommended by UNISKY. ○ The user must carefully read this instruction before using the product, completely follow the installation steps, installation methods, and inspection requirements of this instruction to install and inspect the product and use the product in accordance with the warning requirements.
  • Page 7 Reminder:  If you are uncertain as to whether the rear wheel axle of your bike can be securely clamped in place in the quick clamp device of the indoor bike trainer, please make sure in any case to assemble the rear wheel axle with the clamping lever that comes supplied, or consult the bike shop nearby ...
  • Page 8: Spare Parts List

    Spare Parts List Parts No. Name Qty. Picture Bike Trainer Stand Power Adaptor 12V-5A Electromagnetic Coil Damper Hexagon Bolt M8*95 Lock Nut M8 Flat Washer φ8 ANT+ Receiver Front Wheel Fixing Seat Quick Release L-Type Socket Spanner...
  • Page 9 USB extension cable Note for Optional Accessories: *This bike trainer can match with the thru-axle bike rear wheel by installing the thru-axle adapters. This accessory is NOT included in the package, please select and purchase the thru-axle adapter separately on the UNISKY online store.
  • Page 10: Grounding Instructions

    Grounding Instructions This product is for use on a nominal 120-V circuit, and has a grounding plug that looks like the plug illustrated in sketch A in the figure below. A temporary adapter that looks like the adapter illustrated in sketches B and C may be used to connect this plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available.
  • Page 11: Installation Instructions

    Installation Instructions Note for Optional Accessories: *This bike trainer can match with the thru-axle bike rear wheel by installing the thru-axle adapters. This accessory is NOT included in the package, please select and purchase the thru-axle adapter separately on the UNISKY online store.
  • Page 12 3)As shown in Figure 3 above, hold the damper with the left hand and lift it slowly. Adjust the position of the screw hole of the cylindrical movable pin with the right hand, and then align the mouth of the adjusting screw with the screw hole of the cylindrical movable pin.
  • Page 13 1)Place the bike trainer on stable ground, and adjust the rotary knobs on both sides of the bike trainer so that the distance between the axle sleeve A and the axle sleeve B is greater than the length of the bike quick release, as shown in Figure 5.
  • Page 14 5)As shown in Figure 7, the standard front-wheel stand is fixed under the front wheel of the bike to reduce the left and right wing of the front wheel and improve the comfort while riding.
  • Page 15 Smart Training 1)Calibration The mechanical energy loss on the transmission link of bike trainers, tires, and stands will cause by the bicycle installation's frequency or the compression force produced when adjusting the tire and the tire friction. It will affect the power accuracy. Therefore, we advise you to make Spin-down calibration after installation to ensure better power accuracy.
  • Page 16 Meanwhile, you can use the app of mobile phone or tablet to operate the power training and other activities. This product can also match with ANT + riding stopwatch for use. The specific operation methods of pairing and setting shall be according to the operation instructions of each brand. Tip: when pairing, if you cannot detect the bike trainer device immediately, use the USB data extension cable(Part K).
  • Page 17: Maintenance

    Maintenance The product can be folded for storage. Operation method: press down the two A pipes directly and tuck  them in. Take care not to hurt your hands when folding and tucking. This product must be stored in a clean indoor environment that is dry, away from direct sunlight, fire, ...
