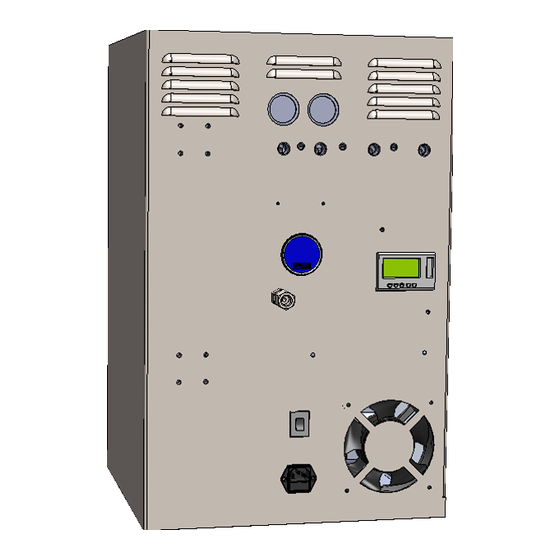

- Page 1 Nitro-Draught 1200 Blend Gas Dispense System Installation, Operation and Service Manual SAVE THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
CONTENTS Section 1 – Safety Guidelines & Definitions Section 2 – Unit Safety Warnings Section 3 – Unit Description & Features 3.1: Technical Specifications 3.2: Electrical Schematic Section 4 – Installation & Operation 4.1: Unpacking your Unit 4.2: Powering up your Unit Section 5 –... -
Page 3: Section 1 - Safety Guidelines & Definitions
SECTION 1 Safety guidelines & definitions WARNING: The WARNING symbol draws attention to an operating procedure or practice that can cause injury if it is not observed or performed correctly. Do not continue past a WARNING symbol until you have fully understood or satisfied the indicated conditions. CAUTION: The CAUTION symbol draws attention to an operating procedure or practice that can damage the unit if it is not observed or performed correctly. -
Page 4: Section 3 - Unit Description & Features
Mode when the tank pressure drops to 90 psi, as nitrogen is used. This manual contains the information necessary for the correct use of the Nitro-Draught 1200. Should any questions arise regarding safe and proper installation, operation or maintenance of the Nitro-Draught system, contact the supplier before proceeding. -
Page 5: Technical Specifications
3.1 Technical specifications Model: Nitro-Draught 1200 (Part No. 89001) Dimensions: Height – 23 1/2 in/ 600 mm Width – 14 7/8 in/ 378 mm Depth – 14 1/4 in/ 362 mm Weight: 77 lb/ 35 kg Electrical Power Supply: 120 Vac 60 Hz 10 Amp ... -
Page 6: Electrical Schematic
3.2 Electrical Schematic... -
Page 7: Section 4 - Installation & Operation
Remove the items from the box and check for damage. The box contains one Nitro-Draught unit, a manual, and a power cord. If any of the items are in a damaged condition, request an immediate inspection by the carrier. If any of the items are missing, please contact Fizz. 4.2 Powering up your unit Installation quick checklist 1. -
Page 8: Section 5 - Maintenance & Replacement Parts
Verify the unit is leak tight before returning to service. Before performing maintenance on a Nitro-Draught 1200 unit, disconnect the main power supply. Failure to perform specified service may result in damage to the Nitro-Draught unit and may invalidate any warranty. -
Page 9: Other Replacement Parts
All parts are available by calling or emailing Fizz. 5.4 Factory repair and refurbishment Fizz will service any unit (whether within warranty period or not) at the request of the customer. Authorization must be obtained from Fizz prior to shipping any equipment to Fizz facilities. The model and serial number of the unit must be provided in order to process the return. -
Page 10: Section 7 - Warranty Information
Fizz. Purchaser agrees that as a pre-condition to any Fizz liability hereunder, Purchaser or its appointed agents shall fully inspect all goods immediately upon delivery and shall give Fizz written notice of any claim or purported defect within ten (10) days after discovery of such defect. -
Page 11: Claims Process
PO Box 1003 Adairsville GA 30103 USA Authorization must be obtained from Fizz prior to shipping any equipment to Fizz facilities. The model and serial number of the unit must be provided in order to process the return. If approved, a Return Material Authorization (RMA) number will be provided.
