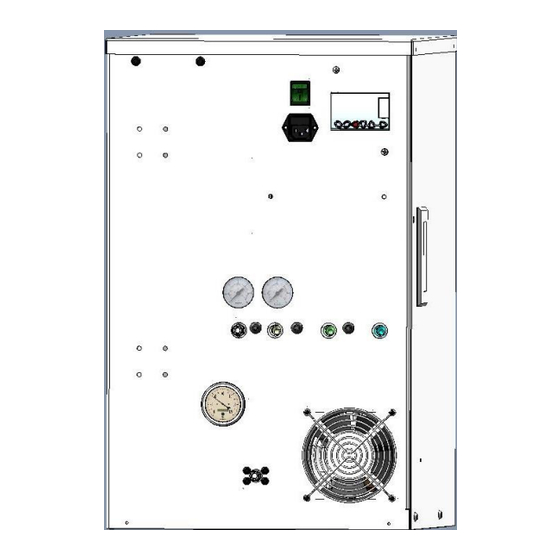

- Page 1 Nitro-Draught Revision 2016 Blend Gas Dispense System Includes Models ND0101, ND0102, ND0201, ND0202 Installation, Operation and Service Manual Revision 1.0 SAVE THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
CONTENTS Section 1 – Safety Guidelines & Definitions Section 2 – Unit Safety Warnings Section 3 – Unit Description & Features 3.1: Technical Specifications 3.2: Electrical Schematic Section 4 – Installation & Operation 4.1: Unpacking your Unit 4.2: Powering up your Unit Section 5 –... -
Page 3: Section 1 - Safety Guidelines & Definitions
SECTION 1 Safety guidelines & definitions WARNING: The WARNING symbol draws attention to an operating procedure or practice that can cause injury if it is not observed or performed correctly. Do not continue past a WARNING symbol until you have fully understood or satisfied the indicated conditions. CAUTION: The CAUTION symbol draws attention to an operating procedure or practice that can damage the unit if it is not observed or performed correctly. -
Page 4: Section 3 - Unit Description & Features
SECTION 3 Unit description & features The Nitro-Draught blend gas dispense system extracts nitrogen (N ) from ambient air, blends it with carbon dioxide (CO ) and supplies the mixed gas to a draught beer system. As a component of a properly designed and maintained draught system, the Nitro-Draught assures brewery quality beverage presentation while it eliminates excessive foaming and wasted beer. -
Page 5: Technical Specifications
3.1 Technical specifications • Model: ND0101, ND0102, ND0201, ND0202 • Dimensions (approximate): ND0101, ND0102 - Height 24 in/ 600 mm, Width 15 in/ 380 mm, Depth 15 in/ 380 mm ND0201, ND0202 - Height 28 in/ 710 mm, Width 15 in/ 380 mm, Depth 15 in/ 380 mm •... -
Page 6: Electrical Schematic
3.2 Electrical Schematic... -
Page 7: Section 4 - Installation & Operation
Remove the items from the box and check for damage. The box contains one Nitro-Draught unit, a manual, and a power cord. If any of the items are in a damaged condition, request an immediate inspection by the carrier. If any of the items are missing, please contact Fizz. 4.2 Powering up your unit Installation quick checklist 1. -
Page 8: Section 5 - Maintenance & Replacement Parts
Before performing maintenance on a Nitro-Draught unit, disconnect the main power supply. Failure to perform specified service may result in damage to the Nitro-Draught unit and may invalidate any warranty. Use only genuine parts as supplied by Fizz. The quality and reliability of the Nitro-Draught unit is maintained through preventive maintenance performed on a scheduled, regular basis. - Page 9 proper tabs on element until it seats completely into bowl. There is only one proper orientation. Screw bowl back into filter head until it seats. coalescing filter exhaust silencer compressor air intake filter element...
-
Page 10: Other Replacement Parts
All parts are available by calling or emailing Fizz. 5.4 Factory repair and refurbishment Fizz will service any unit (whether within warranty period or not) at the request of the customer. Authorization must be obtained from Fizz prior to shipping any equipment to Fizz facilities. The model and serial number of the unit must be provided in order to process the return. -
Page 11: Section 7 - Warranty Information
Fizz. Purchaser agrees that as a pre-condition to any Fizz liability hereunder, Purchaser or its appointed agents shall fully inspect all goods immediately upon delivery and shall give Fizz written notice of any claim or purported defect within ten (10) days after discovery of such defect. -
Page 12: Claims Process
7.2 Claims process All warranty claims must be previously authorized in writing by Fizz Dispense Optimization Group, LLC. Electronic approval may be obtained by contacting Fizz Technical / Customer Services at: customercare@fizzdog.com -Telephone: 800-253-6610 -Fax: 678-792-7784 Or by writing to:...
