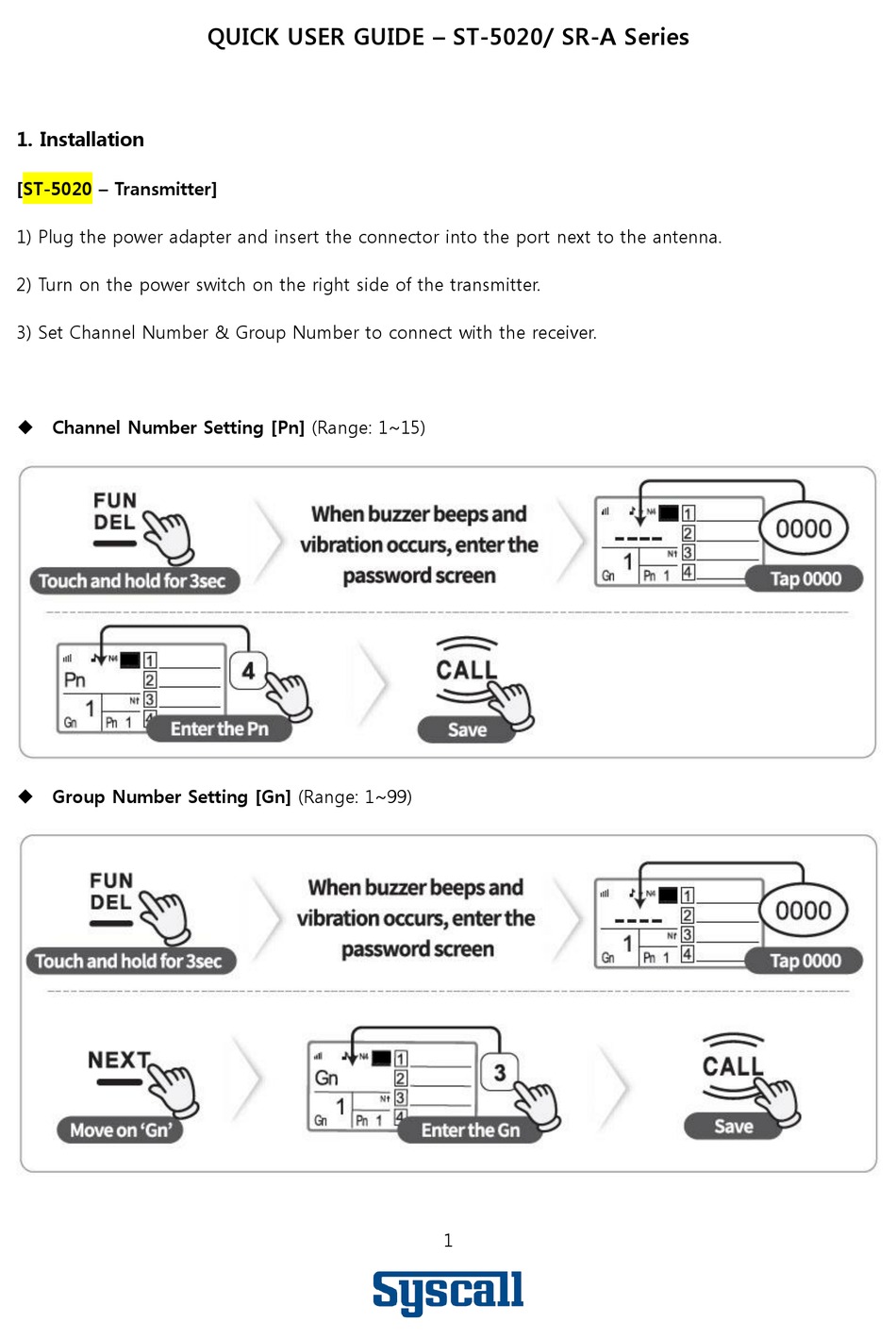

QUICK USER GUIDE – ST-5020/ SR-A Series
1. Installation
[ST-5020 – Transmitter]
1) Plug the power adapter and insert the connector into the port next to the antenna.
2) Turn on the power switch on the right side of the transmitter.
3) Set Channel Number & Group Number to connect with the receiver.
Channel Number Setting [Pn] (Range: 1~15)
Group Number Setting [Gn] (Range: 1~99)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Syscall ST-5020 Series
Summary of Contents for Syscall ST-5020 Series
- Page 1 QUICK USER GUIDE – ST-5020/ SR-A Series 1. Installation [ST-5020 – Transmitter] 1) Plug the power adapter and insert the connector into the port next to the antenna. 2) Turn on the power switch on the right side of the transmitter. 3) Set Channel Number &...
- Page 2 [SR-A Series – Receiver] 1) Plug the power adapter and insert the connector into the jack on the back. 2) Turn on the power switch on the right side of the receiver. Set the same Channel Number & Group Number to connect with the transmitter.
- Page 3 2. Keypad Description Functions Default Range Channel Number Setting 1~15 Group Number Setting 1~99 The Number of Digits Displayed Setting RF Output Power Control Beep Sound Setting 1(ON) 0-OFF, 1-ON Haptic Feedback Setting 1(ON) 0-OFF, 1-ON 3. Function Setting 3-1. The Number of Digits Displayed Setting [N1] ‘N1’...
- Page 4 3-2. RF Output Power Control [RP] 3-3. Beep [SC] & Haptic Feedback Setting [VC]...
