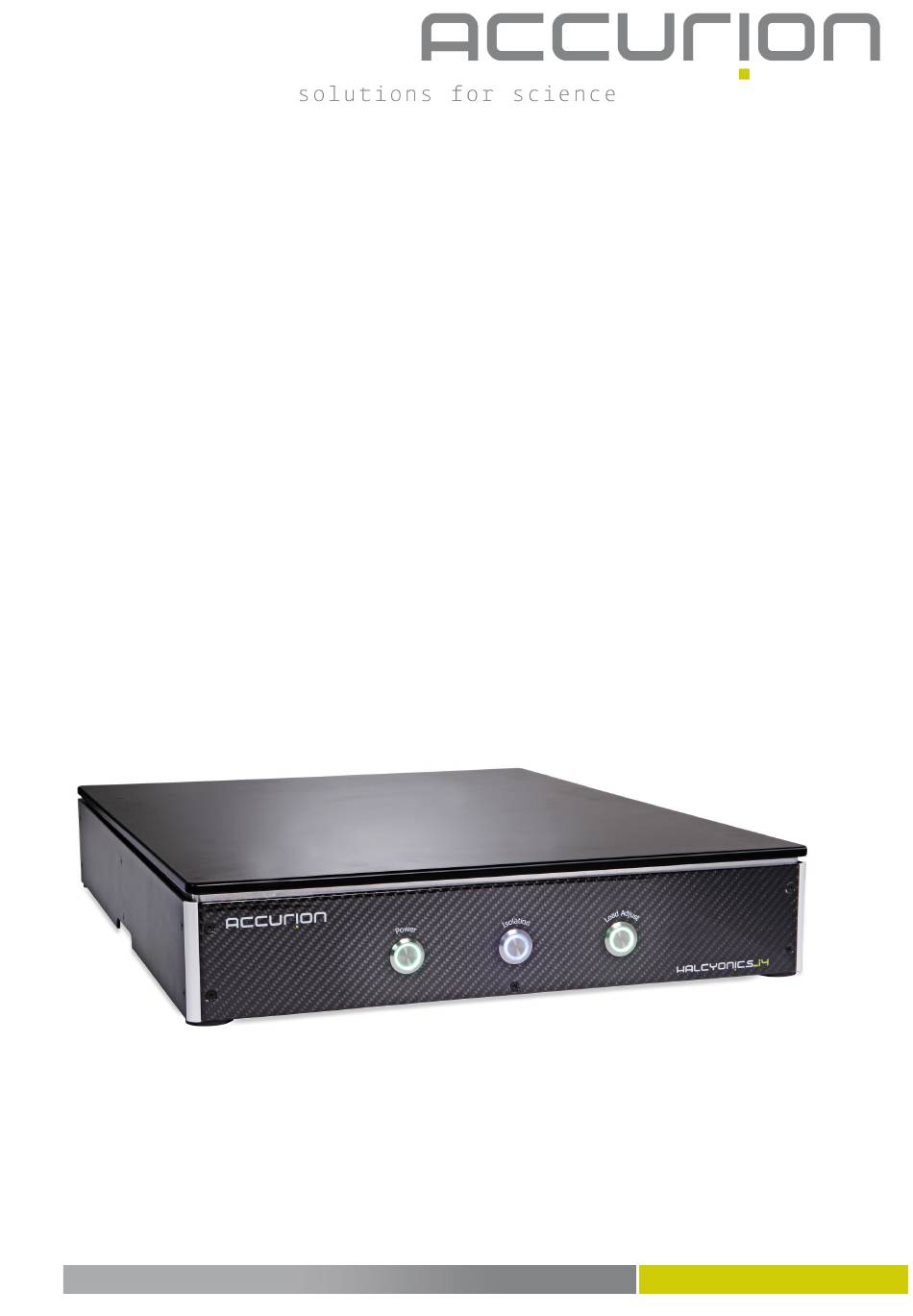

- Page 1 Operating Instructions _active vibration isolation desktop unit halcyonics_i4 series...
-
Page 2: Table Of Contents
Appendix .......................... 8 Care and Maintenance ....................8 EMC Test Report ....................... 9 Specifications ........................10 Dimensions of the Isolator ....................11 Transmissibility ........................ 12 Settling Time ........................12 Dynamic Stiffness ......................12 Accurion Offices ......................13 - 2 -... -
Page 3: Introduction
1. Introduction Thank you for purchasing the halcyonics_i4 system. By selecting this device you have acquired a top-of- the-line active vibration isolation equipment. We feel confident that our system will meet your expectations and provide the best possible performance for your specific application. Please read the operating instructions carefully to set up the i4 system correctly. -
Page 4: Safety Information
Do not operate the system in a potentially explosive or humid environment. Do not switch on the system if there is any visible damage or if you think it might be damaged. In this case, turn off the power immediately and notify our distributor in your area or contact Accurion’s headquarters in Germany directly. -
Page 5: Getting Started And Operation
5. Getting Started and Operation Setting Up the System To obtain best performance from the halcyonics_i4, set it up on a stable, rigid and flat surface. For optimal operating results, the planarity of the support surface should be 0.5 mm. If you set up the i4 system on a table or bench frame, make sure that the table is distortion-free and stiff. -
Page 6: Automatic Load Adjustment And Transport Locking Mode
Automatic Load Adjustment and Transport Locking Mode The top plate of the system is supported by four steel springs. These springs carry the load placed on top. For the initial installation or after load changes these springs have to be pre-stressed according to the weight of the setup. -
Page 7: Using Active Vibration Isolation
The system may only be transported or moved in the transport-locked condition! There must not be any load on top of the isolation system during transport! To change the different modes, it is necessary to press and hold the button for some seconds. Using Active Vibration Isolation Once you have started up the system, press the “isolation”... -
Page 8: Appendix
6. Appendix Care and Maintenance The i4 system has been carefully designed and manufactured by Accurion. To maintain this equipment and the validity of your warranty, you should observe the following recommendations: Store the system in a dry place. Never expose it to rain, liquids or dampness. The minerals contained in these liquids may lead to short-circuits or corrosion of the electronic circuits. -
Page 9: Emc Test Report
EMC Test Report - 9 -... -
Page 10: Specifications
150 kg halcyonics_i4medium 150 kg M6/25 Halcyonics_i4large 150 kg M6/25 Performance Specifications Accurion control technology based on piezoelectric type acceleration pickup, fast Isolation Technology: signal processing and electro-dynamic type force transducers Force directions: Active compensation in all six degrees of freedom Isolation performance: >... -
Page 11: Dimensions Of The Isolator
Dimensions of the Isolator i4 system i4medium system i4large system - 11 -... -
Page 12: Transmissibility
(blue). made by one of the major manufacturers of Due to their higher dynamic stiffness, optical tables and vibration isolated labora- Accurion’s systems are less sensitive to direct tory desks. forces affecting the isolation system. - 12 -... -
