Model K17-231 — 16.8 K-factor
Upright and Pendent Sprinklers
Standard Response, Standard Coverage
General
Description

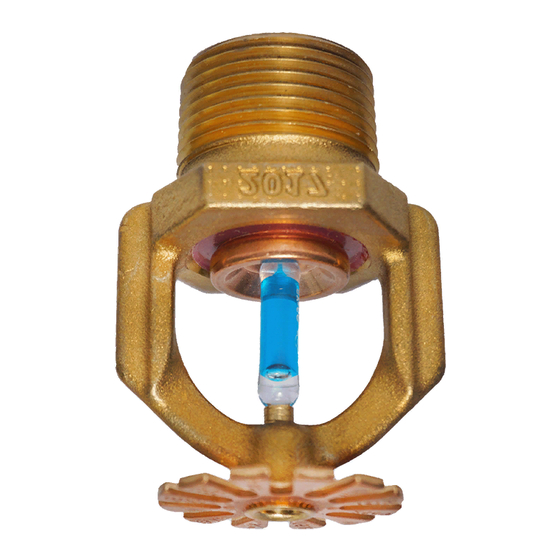

The TYCO 16.8 K-factor, Model
K17-231, Standard Response, Standard
Coverage, Upright and Pendent Sprin-
klers (Ref. Figure 1) are automatic sprin-
klers of the frangible bulb type. They
are "standard response spray sprin-
klers" which produce a hemispherical
water distribution pattern below the
deflector.
The 16.8 K-factor, K17-231 Sprinklers
were subjected to full scale, high-piled
storage, fire tests to qualify their use
in lieu of 8.0 or 11.2 K-Factor standard
spray sprinklers for the protection of
high-piled storage.
Higher flow rates can be achieved at
much lower pressures with the 16.8 K-
factor, K17-231 Sprinklers — making
their use highly advantageous in high
density applications, such as the pro-
tection of high-piled storage.
Applications for the 16.8 K-factor, Mod-
el K17-231 Pendent and Upright Sprin-
klers are expanding beyond the cur-
rent listings/approvals. For information
regarding research fire tests which may
be acceptable to an authority having ju-
risdiction, please contact the Technical
Services Department.
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
NOTICE
The 16.8 K-factor, Model K17-231 Up-
right and Pendent Sprinklers described
herein must be installed and maintained
in compliance with this document and
with the applicable standards of the Na-
tional Fire Protection Association, in ad-
dition to the standards of any authori-
ties having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Number (SIN)
TY7151 – Upright, 16.8K
TY7251 – Pendent, 16.8K
TY7151 is a redesignation for C7151,
G1888, and S8040.
TY7251 is a redesignation for C7251,
G1889, and S8041
Technical
Data
Approvals
UL and C-UL Listed. FM and NYC Ap-
proved. (Specific details for laboratory
listings and approvals given in Table A.
The approvals apply to the service con-
ditions indicated in the Design Criteria
section.)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
3/4 inch NPT
Discharge Coefficient
K = 16.8 gpm/psi
1/2
(241,9 lpm/bar 1/2 )
SEPTEMBER 2014
Worldwide
www.tyco-fire.com
Contacts
Temperature Ratings
Refer to Table A.
Finish
Natural Brass
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . Bronze
Button. . . . . . . . . . . . . . . . . . . Bronze
Sealing Assembly. . . . . . . . .Beryllium
Nickel w/TEFLON
Bulb (5 mm) . . . . . . . . . . . . . . . .Glass
Compression Screw. . . . . . . . . Brass
Deflector. . . . . . . . . . . . . . . . . . Brass
