HAISEN HD06VCRH Manual

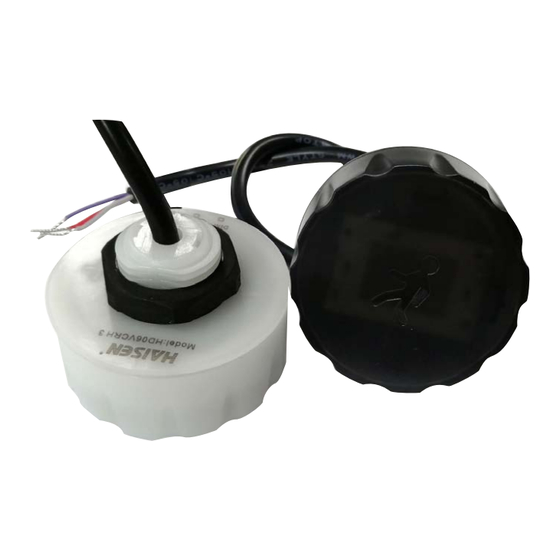

Sensor
HD06VCRH
1. Automatic On/off control with
Daylight sensor.
2. Optional detection range, holdtime ,
daylight threshold, Stand-by period and
.
Stand-by dimming level
3. Remote control setting.
4. 5 year limited warranty.
On/off Detection Hold Daylight Stand-by
control area time threshold
Detection coverage
Typical installation height 15m
This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.
Ceiling Mounted
6 5 4 3 2 2 3 4 5
2
4
Mounting
6
height
8
10
12
14
16
5
15m
years
10-15M
Stand-by Remote control
period dimming level setting
Highbay
altitude
Wall Mounted
6
2 4 6 8 10 12 14
4
3
2
1
Mounting
height
1
2
3
4
Well covered
Technical data
Operating voltage
Operating current
Output
Stand-by power
Detection area
Hold time
Daylight threshold
Stand-by period
Stand-by dimming level
Microwave frequency
Microwave power
Mounting height
Detection range
Operating temperature
Motion detection
IP rating
Warranty
Dimensions (Unit: mm)
16 18
50
Covered
Specifications subject to change without notice.©All rights reserved.
12VDC
30mA±5%
DIM 0-10V
≤0.5W
25%/50%/75%/100%
5s/30s/1min/3min/5min/10min/20min/30min
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
0s/10s/30s/1min/5min/10min/30min/+∞
10%/20%/30%/50%
5750-5824MHz
<0.3mW
15m/49.2ft (ceiling mounted)
Max,ø14m/45.92ft (ceiling mounted)
-20°C~+60°C
0.5~1.5m/s
IP65
5 years
Wiring diagram
ø50
24
12
22.5
Red: 12V
Grey: GND
Purple: DIM
Haisen Technology | 01
