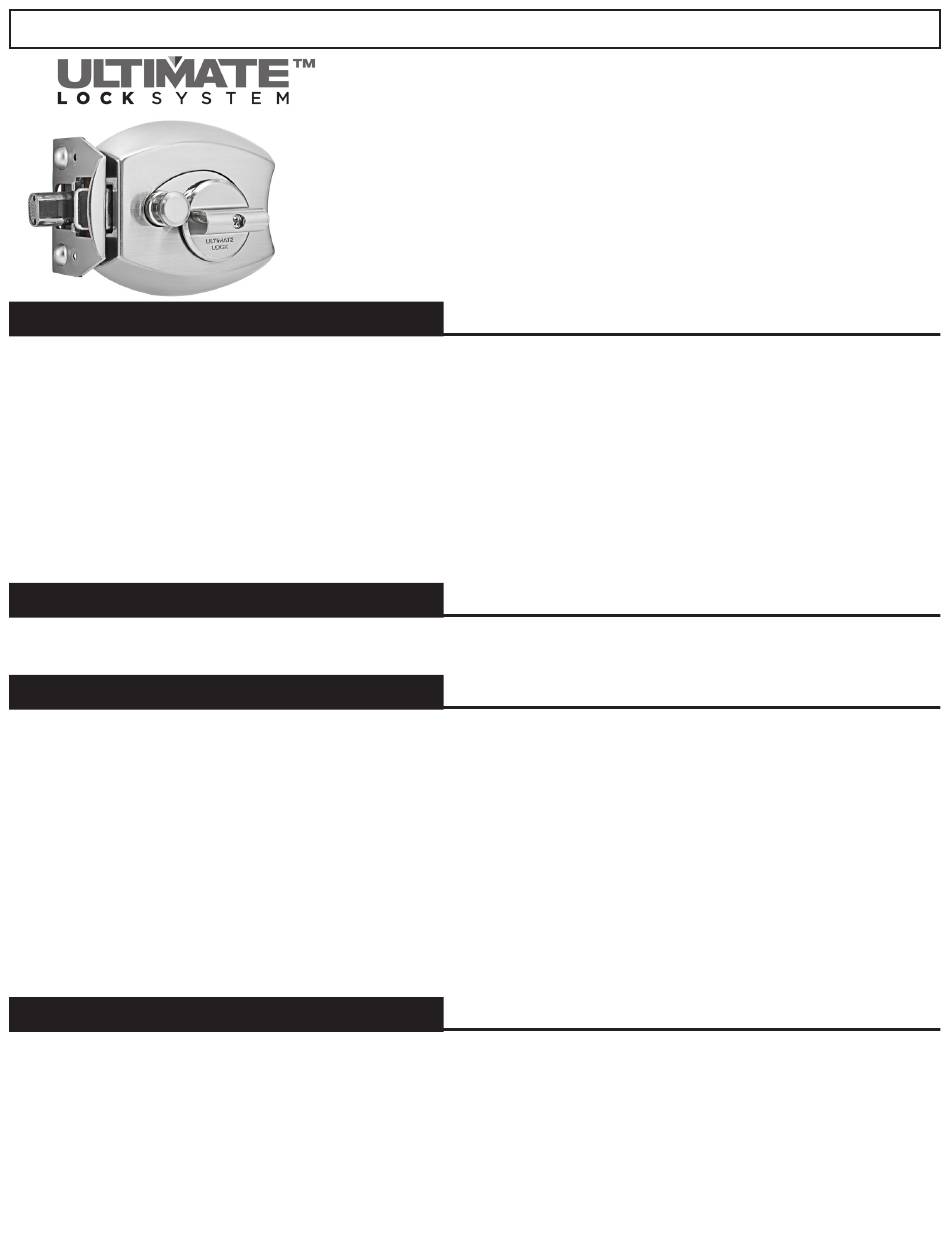

The Ultimate Lock™ 3000 Series Installation Guide
Before You Start
a. This lock is designed for a right- or left-handed door that opens
currently installed at a 2-3/8" or 2-3/4" backset (centered from the edge of the door). It can be installed on an
outward swinging door, but special instructions are required. See www.
b. To provide maximum protection, The Ultimate Lock™ should be installed in a solid 1-3/4" thick wood door or
steel-skinned, insulation or foam filled door mounted in a double studded door frame.
c. If your door does not already have a deadbolt installed, it is highly recommended that you purchase an
installation jig kit for deadbolts and door handles. These kits include special hole saws, templates, and other aids
to simplify the installation process. If your door has a metal skin, be sure your kit includes Bi-Metal hole saws to
cut the metal door.
If your door jamb/frame is steel, do not remove the hinge screws! See step 2.
TheUltimateLock
Check www.
Tools You Will Need
• No. 1 and No. 2 Phillips Screw drivers or bits
• Pencil or steel marking pawl
• Electric drill (3/8" chuck) with torque adjustment
• Drill bits:
1/16"(1.5 mm)
3/32" (2.5 mm)
1/8" (3 mm)
9/64" (3.5 mm)
5/32" (4 mm) (supplied in kit)
• Spade bit or forester bit: 3/4", and 1"
Limited Warranty
Every Ultimate Lock™ is thoroughly inspected before leaving the factory. It is warranted to be free of defects from workmanship and materials for a period
of TEN YEARS from the date of original purchase. Should any trouble develop during the TEN YEAR period, return the complete lock system, freight
prepaid, to Ultimate Lock, Inc. at 3776 Greenbriar Dr., Stafford, TX 77477 or call 1-866-MLS-4005 (1-866-657-4005) for one of Ultimate's Authorized Service
Centers nearest you. If our inspection shows the trouble was caused by defective workmanship or material, Ultimate Lock™ will repair (or at our option)
replace the lock without charge. Register your Serial Number on line at www.theultimatelocksystems/warranty.com This Warranty does not apply where:
• Repairs have been made or attempted by others
• Repairs are required because of normal wear and tear
• The lock has been abused, misused or improperly installed
• Alterations have been made to the lock or its components
In no event shall Ultimate Lock™ be liable for any indirect, incidental or consequential damages from the sale or use of the product. This disclaimer applies
both during and after the term of the warranty. Ultimate Lock™ disclaims liability for any implied warranties, including implied warranties of "merchantability"
and "fitness
for a specific purpose", after the TEN-year term of this warranty. This warranty gives you specific legal rights, and you may also have other
rights, which vary from state to state. Some states do not allow the exclusion or the limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
*Disclaimer: The Ultimate Lock is only as strong as your door frame. Please contact your local locksmith to visit your home and evaluate your current setup.
Congratulations on purchasing the finest engineered deadbolt
lock on the market, The Ultimate Lock™. It is vital that your
lock is installed properly to provide the maximum protection
possible. Read these instructions completely before you begin
the installation. More information can be found at our website:
www.TheUltimateLock.com.
IMPORTANT: Register your lock's serial number!
Go to www.TheUltimateLock.com and click the "Register Your
Lock" link.
.com to get information on installing the striker plate on a steel door frame.
the home or office with a deadbolt
into
TheUltimateLock
• Hammer, steel center punch, and 1/2" and 3/4"
chisels
• Small carpenter's square (adjustable)
• Pliers (needle nose and regular)
• Spray lubricant (dry Teflon, Silicon Spray, or similar)
• Tape measure or 12-inch ruler
• (If no deadbolt installed) Wood or bi-metal hole
saw: 2-1/8" and 1"
• Wood chisel: 1/2" (13 mm)
• Small carpenters adjustable square
.com for details.
Advertisement
Table of Contents
Related Manuals for Ultimate Lock 3000 Series
Summary of Contents for Ultimate Lock 3000 Series
- Page 1 • Alterations have been made to the lock or its components In no event shall Ultimate Lock™ be liable for any indirect, incidental or consequential damages from the sale or use of the product. This disclaimer applies both during and after the term of the warranty. Ultimate Lock™ disclaims liability for any implied warranties, including implied warranties of “merchantability”...
- Page 2 1. Identify Your Parts Carefully unpack and check that all parts are in the package. Identify parts and hardware from Figure 1. Record the Serial Number (located inside the lock case) and Date Installed for your lock on the back of this instruction booklet and save this information for future reference.
- Page 3 It is very important to reinforce the hinges of your door to get maximum protection from forced entry. Your Ultimate Lock™ comes with 12 special screws to secure the hinges to the studs of the door frame, and not the door jamb.
- Page 4 4. A Note About Steel Doors For steel doors with steel door jambs: When installing the Ultimate Lock™ in steel doors or wood doors installed in steel door frames that have not yet had a deadbolt installed in them but have a deadbolt latch hole already in the door frame, the lock must be installed in line with the hole in the steel door jamb for the deadbolt striker (usually covered with a plate).
- Page 5 7. Install Deadbolt a. Look at your door from the inside of the house or room and note if the hinges are on the right or left side of the door. b. For a door with hinges on the right, install deadbolt with the cross hole at the bottom. For a door with hinges on the left, install the deadbolt with the cross hole on top (Figure 7).
- Page 6 9. Install Security Bar a. Apply a dry, multipurpose lubricant to moving parts (teeth , and gear security bar Install gear with alignment mark b. Position in place and start into hole. security bar gear matching the backset measurement c. Align the arrow on the first tooth of the with the gear marking corresponding to the backset measurement...
- Page 7 This will usually be larger than the old striker plate. Using the chisel, mortise out the frame to fit the Ultimate Lock striker plate. Fit the striker plate in upside down to Mark for countersink holes check fit of mortise.
- Page 8 To lock your door, simply turn the twist knob counterclockwise 90° until it is horizontal. To unlock the door, turn the twist knob clockwise 90° until it is vertical. For even more security, The Ultimate Lock™ features a patented lockout feature that will prevent ANY key from opening the door. To engage the lockout pin, simply press the button in the locked position until it latches in place.
