ENM MT10 Series Technical Data

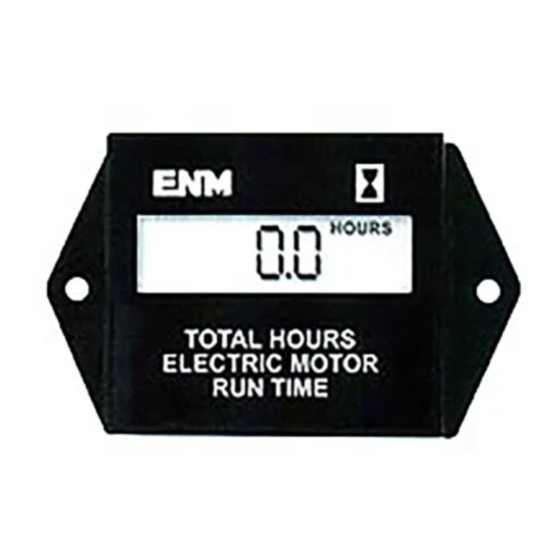

M T10
M T10R
Features
• Large 7 segment LCD display
• Low cost and small size
• No external power required
• No shunt required
• Solid state electronics
• Quartz crystal
• Wide operating temperature range
• High reliability
• Resettable, non reset version is available
• Easy to install
• Made in the U.S.A.
2004 ENM Co.®
Te ch n ical Data
Self Powered AC/DC Electric Motor
Hour Meter,
ENM is proud to present the new series MT10 self-powered
Digital Hour Meter for electric motors. The MT10 keeps track of
true motor running time for all types of AC or DC electric
motors. The unit is powered by an internal lithium battery. No
external power connections are required.
The operation of the Hour meter is triggered by a sensor attached
at the end of 4 ft. external cable. When placed on the motor, the
sensor senses the magnetic field through the motor casing.
S ince the unit is triggered by the motors magnetic field, the hours
display actual operation. This is useful for maintenance and
warranty applications for any type of AC or DC powered electric
motor. When the motor is on, the hours icon will blink on/off
indicating hour meter is active.
With solid state technology the MT10 series is built with a custom
chip and with solid construction for maximum durability for harsh
environments and rugged applications.
Specifications
Display Reading:
Digit Height:
Operating Voltage:
Temperature:
Vibration Resistance:
Mounting Configuration:
EN M Company
5617 N orthwest H ighway, Chicago, IL 60646-6135
(773) 775-8400 • Fax: (773) 775-5968
Toll Free (888) 372-0465 • e-mail: EN MCo@aol.com
web site: www.enmco.com
Series MT10
9999.9 Hours meter
5-digits [8MM] LCD
Internal lithium battery
15,000 hours continuous running
Standard -40C to +85C
(-40F to +185F)
Withstands 10 to 75Hz @ 1 to 8 g' s
Two hole base mount
667
