T56E1 - Standard unit with ENM logo
Features
• No external power required
• 3 timers (Total hours, Job 1 and Job 2)
• Resettable job timers
• 2 vibration sensitivity settings (low and high)
• Waterproof, IP68
• Power saving mode to conserve battery life
with programmable sleep time
• Lock function to prevent time usage during
transport
2017 ENM Co.®
Technical Data
LCD Vibration Activated Hour Meter With Service Alerts
Hour Meter, T56E Series

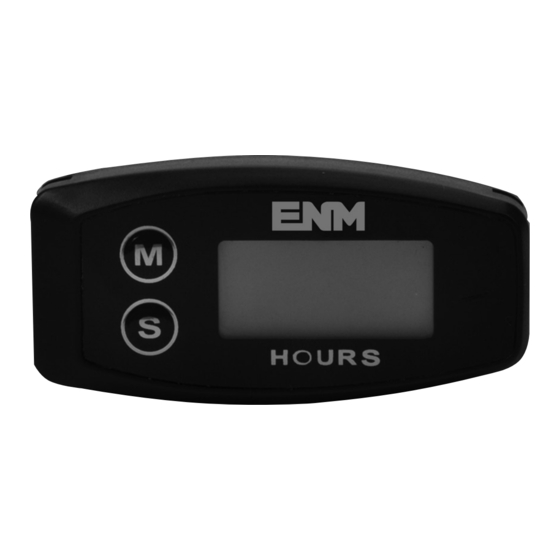

ENM's series T56E LCD Vibration Activated Hour Meter. The
hour meter features 5-digits with an hour glass icon as a running
indicator. Unit has three separate timers, two can be reset. There
are also two vibration sensitivity settings which the customer can
select to suit their application.
This meter can be installed anywhere on equipment with no
special wiring connection or power source to operate. There is
a double sided tape on the back for mounting on surface along
with two side holes for extra wire mounting for more security.
The internal battery supplies all the necessary power for the
gauge to operate for years of service.
This compact tamper proof meter is 100% water sealed and
rated for IP68.
Specifications
LCD:
Total/Job Hour Range:
Timing Accuracy:
Waterproof:
Operating Temperature:
Humidity:
Battery:
Mounting:
ENM Company
5617 Northwest Highway, Chicago, IL 60646-6135
(773) 775-8400 • Fax: (773) 775-5968
Toll Free (888) 372-0465 • e-mail: customerservice@enmco.com
web site: www.enmco.com
708
0.51X1.10 (13X28mm)
99999H
0.1H
IP68
-4ºF to 158ºF
(-20ºC to 70ºC)
<+90%RH
Non-replaceable
Double sided tape with 2 side holes for wire
mounting (wire not included)
See reverse side for detail
© ENM Co.
Advertisement
Table of Contents
Related Manuals for ENM T56E Series
Summary of Contents for ENM T56E Series
- Page 1 LCD Vibration Activated Hour Meter With Service Alerts Hour Meter, T56E Series ENM’s series T56E LCD Vibration Activated Hour Meter. The hour meter features 5-digits with an hour glass icon as a running indicator. Unit has three separate timers, two can be reset. There are also two vibration sensitivity settings which the customer can select to suit their application.
-
Page 2: Dimensional Data
LIMITED WARRANTY ENM Company hour meters are warranted to the consumer to be free from defects in material and workmanship for a period of 1 year. All ENM products which fall within the warranty period due to defects in material or workmanship will be repaired or replaced, at ENM’s option, without charge to the consumer when returned with proof of purchase to any authorized ENM dealer in the United States, transportation charges prepaid, provided there is no evidence of improper installation, tampering, or other abuse. - Page 3 Operating Instruction Vibration Activated Hour Meter...
- Page 4 Product Accessories List ---------------------------------------------------- ① Product Installation ---------------------------------------------------- ① Product Operation ---------------------------------------------------- ② Product Specifications ---------------------------------------------------- ⑤ Product Dimension ---------------------------------------------------- ⑤ Please read and understand the following notices carefully, and correctly install and operate the product before using.
-
Page 5: Product Installation
Product Installation 1. Please make sure to refer to the installation instructions in the This product can be directly installed with double-sided tape, the Operating Instructions to avoid damage caused by installation installation method is as follows: errors. 1. Double-sided tape installation: 2. -
Page 6: Product Operation
b) To reset “JOB” time: press the “M” button until display shows “JOB” Product Operation icon, release the “M” button, press and hold the “S” button until display shows “0000.0” , then release the “S” button ,the “JOB” display will reset to 1. - Page 7 4. SVC 5. Set Vibration Sensitivity Level ---- Maintenance interval time.Note: timing is countdown. a) When the maintenance interval time is reached, and the LCD display a) Press the “M” button 4 times until display shows “SEN-1” icon will flashing, press the “M” button or “S” button to clear the status, the next maintenance interval time starts timing b) Programming SVC time: 1.
- Page 8 7. Other Frequency detection Applicable equipment Sensitivity range a) About product life Suitable for equipment with To extend the life of your product, you can apply it as follows: SEN-1 ≥32HZ low vibration 1. Avoid product are always in a very humid environment---there is a Suitable for equipment with ≥18HZ SEN-2...
-
Page 9: Product Specifications
Product Specifications Product Dimension TOT/JOB/JOB1 Timing range 0-99999H Timing accuracy 0.1H/1H SVC TIMER setting range 0-1000H&OFF Display mode Display window size(visible) 28x13mm Product size 67x33x14mm Battery type CR2430 270mAh Unit:mm Waterproof level IP67 ⑤...
