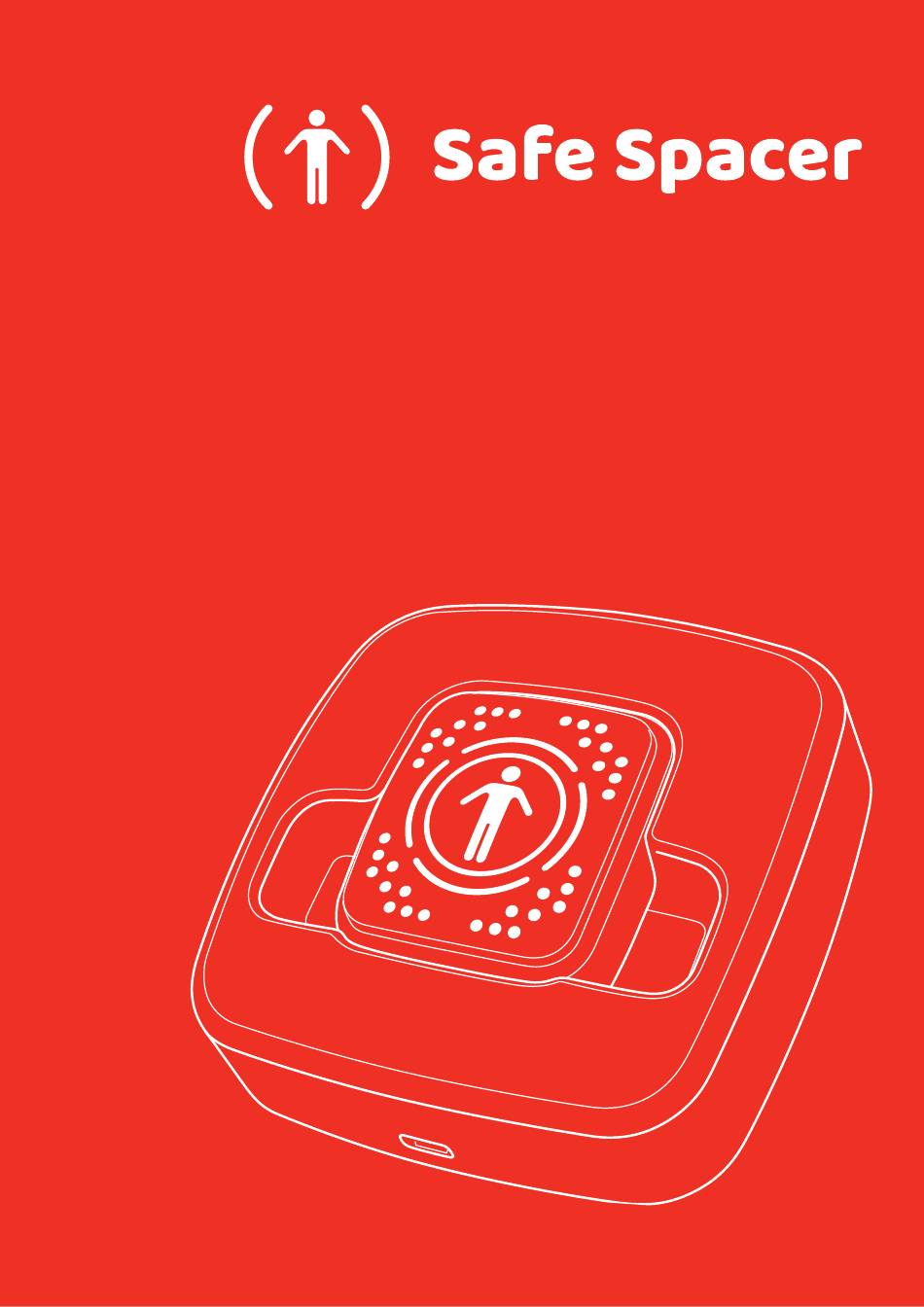

- Page 1 Wearable social distance monitor S-Bridge...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1 SAFETY INSTRUCTIONS 1.1 Repair and modifications 2 OVERVIEW 3 WALL MOUNTING 4 INSTALLATION 5 CONNECTION AND DATA TRANSFER 6 COMMUNICATION 7 SPECS S-Bridge REGULATORY... -
Page 3: Safety Instructions
Before using this product, carefully read this user manual. Failure to follow these safety instructions could result in fire, electric shock, injury, or damage to Safe Spacer or other property. Do not dispose of this manual. Ensure that this information is retained and used appropriately by the product user. -
Page 4: Overview
2 OVERVIEW SCREW HOLE MICRO-USB PORT MICRO-USB PORT TO IK141-101 TO HOST MICRO-USB LED LIGHTS PORT... -
Page 5: Wall Mounting
3 WALL MOUNTING • Mount the holder to the wall using the included screw and wall anchor. • Tighten the screw to fasten the holder to the wall. -
Page 6: Installation
4 INSTALLATION • Insert the device (IK141-101) into the holder, paying attention to the position of the Micro-USB connector. -
Page 7: Connection And Data Transfer
5 CONNECTION AND DATA TRANSFER MICRO-USB PORT • Plug the Micro-USB to USB-A cable to the Micro-USB port located in the bottom side of the holder. • Use the other end of the cable to connect the unit to computer... •... -
Page 8: Communication
When the S-Bridge is connected to an host waiting for a connection with a Safe Spacer, its LED will turn green. BLUE • When a Safe Spacer is connected to the S-Bridge, both the units are light up blue. GREEN GREEN BLUE •... - Page 9 • If the connection is terminated with issues, both the Safe Spacer and S-Bridge will blink red. If this occurs, try again until the connection will end successfully. BLUE GREEN...
-
Page 10: Specs
7 SPECS S-Bridge Wireless technology UWB - Channel 5, Bluetooth® Host connection and power through micro USB connector Operation -20°C to 55°C, 0 % to 98 % relative humidity Storage -20°C to 55°C, 0 % to 98 % relative humidity... -
Page 11: Regulatory
REGULATORY S-Bridge P/N: IK141-102 (contains IK141-101) Model Nr.: IK141 Contains FCC ID: 2AQ33-DWM1001 Contains IC: 23794-DWM1001 FCC statement This device complies with Part 15.107 and 15.109 Class B of the FCC Rules CFR47: October 2010. Operation is subject to the following two conditions: 1.
