- Page 1 EasyGrid Base User Guide v1.0 EasyGrid Base User Guide MAN-00112...
- Page 2 Information provided by FISO is believed to be accurate and reliable. However, no responsibility is assumed by FISO for its use nor for any infringements of patents or other rights of third parties that may result from its use. No license is granted by implication or otherwise under any patent rights of FISO.
-
Page 3: Table Of Contents
3.2 Safety Information .......................... 8 3.3 Unpacking and Inspection ....................... 9 4 Hardware Configuration ..........................10 4.1 Introducing the EasyGrid Base ...................... 10 4.2 Front Panel Overview ........................10 4.3 Side Panel Overview ........................11 4.4 Grounding Terminal ........................11 4.5 Powering the EasyGrid Base ...................... -
Page 4: Product Certification
Shielded I/O cables are recommended to improve protection against lightning surge if unit or cables are installed in outdoor area. See certificate and tests of compliance. EasyGrid Base has been extensively tested to stringent environmental standards to ensure it remains reliable when used under published specifications. -
Page 5: Declaration Of Conformity
EasyGrid Base User Guide v1.0 2.3 Declaration of conformity EU Declaration of Conformity Manufacturer Name: FISO Technologies Inc. Address: 500, Saint-Jean-Baptiste Ave., Suite 195, Quebec, QC, Canada G2E 5R9 We hereby declare under our sole responsibility that the following apparatus:... - Page 6 This product meet the EMC requirement of the Canada IPC-CC-830 Environmental protection, conformal coating MIL-I-46058C Signed for and on behalf of FISO Technologies Inc. Issued in : Quebec, Qc, Canada Date: November 15 2018 Frederic Borne, General Manager, FISO Technologies Inc.
-
Page 7: Safety Information
EasyGrid Base User Guide v1.0 3 Safety Information 3.1 Conventions Before using the product described in this guide, you should understand the following conventions: DANGER Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury. Do not proceed unless you understand and meet the required conditions. -
Page 8: Safety Information
THIS PRODUCT IS NOT DESIGNED FOR USE IN LIFE SUPPORT OR CRITICAL APPLICATIONS. In no case will FISO be liable to the buyer, or to any third parties, for any consequential damage or indirect damage which is caused by product failure, malfunction, or any other problem. -
Page 9: Unpacking And Inspection
If the shipping carton is not damaged, carefully remove and identify all of the components listed below. Contact FISO or your local representative if any of the components are missing. We recommend you save the shipping carton for future storage or transportation. -
Page 10: Hardware Configuration

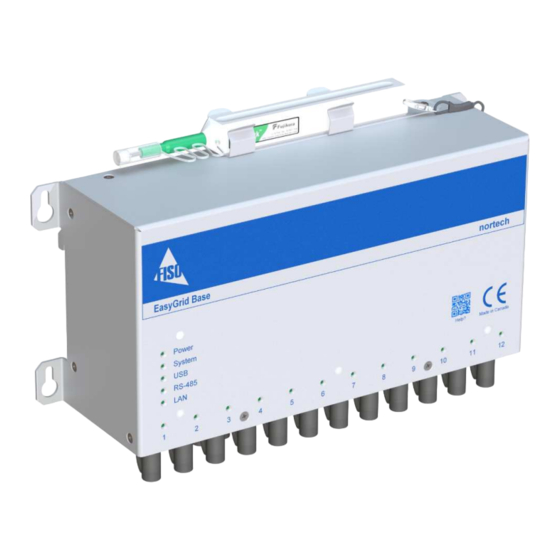

Optional supported Ethernet communication protocols are: IEC-61850, IEC-60870-5-104, DNP3 and TCP-IP MODBUS. 4.2 Front Panel Overview EasyGrid Base displays a very slim and simple front panel showing the following status lights: On Top One-Click Fiber Optic cleaner receptacle Don’t ever look for it anymore, it is now permanently attached and available... -
Page 11: Side Panel Overview
EasyGrid Base User Guide v1.0 4.3 Side Panel Overview The side panel is packed with power input, connectivity options, fiber optic ports and analog outputs. Here is a description of each zone of the side panel: A. Fiber Optic ST Connectors for Temperature Sensors (Up to 12 channels) a. -
Page 12: Powering The Easygrid Base
No other voltage level or range is accepted. 4.6 Optical Connectors There can be up to 12 optical channels on each EasyGrid Base. Each channel is designed to be connected with a fibre Optic extension, an EasyThrough and a Fiber Optic sensor. -
Page 13: Protective Dust Caps
EasyGrid Base User Guide v1.0 4.7 Protective Dust Caps This monitor now includes permanently mounted protective dust caps for each individual optical connector. The cap(s) is designed to help you keep the connector(s) clean preventing the dust from accumulating inside when not in use. -
Page 14: Led Indicators Explained
EasyGrid Base User Guide v1.0 4.8 LED Indicators Explained Front Panel LEDs LED Name Color Indication Power Device is powered ON GREEN System is functioning well without errors System System error and/or sensor may be at fault AMBER (Blink) Activity over the USB communication port... -
Page 15: Analog Outputs
Analog outputs provide a means of transmitting temperature data directly from the unit to an external data-gathering system or monitoring equipment. The EasyGrid Base provides one analog output for each temperature channel present in the unit. Wire length and gage are related when connecting analog outputs. -
Page 16: Connection - Ethernet
EasyGrid Base User Guide v1.0 4.11 Connection - Ethernet With the optional Ethernet port enabled, use either Copper or Fiber Optic to connect to it. Configuring all IP settings can be achieved using the Nortech Client II while being directly... -
Page 17: Connection - Rs-485 / Rs-422
A RS-485 / RS-422 serial port is provided on the EasyGrid Base. It can be used to connect the EasyGrid Base to any RS-485 or RS-422 communication bus. It also allows multiple EasyGrid Base to be link together off the same communication bus. -
Page 18: Rs-485 / Rs-422 Network Recommendations
EasyGrid Base User Guide v1.0 4.13 RS-485 / RS-422 Network Recommendations FISO recommends shielded, twisted pair wiring, 24 AWG with 120Ω line impedance to connect the RS- 485 / RS-422 interface to the network. FISO also recommends biasing the RS-485 BUS using pull-down and pull-up 1 KΩ resistors. Biasing the RS-485 BUS line will prevent unknown voltage on these lines (RS-485 BUS floating). -
Page 19: Physical Dimensions
EasyGrid Base User Guide v1.0 4.14 Physical Dimensions... -
Page 20: Wiring Information
Use copper wire, solid or stranded. Copper wire ferrules can be used with stranded conductors System GND -> 8 AWG (8mm ) copper conductors required for grounding the EasyGrid Base for electromagnetic interference (EMI) purposes: We recommend: Earth strap AMP# 1337670-3 or Crimp terminal AMP ring tongue terminal #... -
Page 21: Analog Output
GND at the M5 GND stud (bottom left of the EasyGrid Base case). The cables shields must be grounded at only one end, we recommend to connect-them to the EasyGrid Base M5 GND stud. -
Page 22: Analog Output Scale
EasyGrid Base User Guide v1.0 5.4 Analog Output Scale The following table summarizes the correlation between the temperature minimum and maximum readings and the corresponding analog output value. Temperature Range Scale °C °F 4-20 mA 0-1 mA 0-10 V Minimum Maximum 437°F... -
Page 23: System Relay
If the system’s hardware is at fault At power up the EasyGrid Base system relay is in alarm until all the actives sensors gives valid reading, it could take up to 1minute (depending on the number of active channels) for the alarm condition to resume. -
Page 24: Rs-485 / Rs-422
RS-422. The extra pair will be used for ground. If the EasyGrid Base is at one end of the cable you must place an End of Line resistor. You can use the integrated EOL resistance with the OFF / EOL dip switch. - Page 25 EasyGrid Base User Guide v1.0 RS-485 Wiring...
-
Page 26: Nortech Client Ii Software
EasyGrid Base User Guide v1.0 6 Nortech Client II Software Please refer to the Nortech Client II software guide available here: http://www.fiso.com/2DScans... -
Page 27: Troubleshooting
1 further investigation is necessary using the Nortech System LED is RED channel or the Client II software to find out error codes if any. You system itself may have to contact your reseller or FISO customer support to help. -
Page 28: Diagnostics
EasyGrid Base User Guide v1.0 7.2 Diagnostics Acceptable Light and Signal % Levels It is good practice to verify the light value upon reception of the sensors and throughout their installation process. You can verify both the light and signal levels of each of your channels/sensors using the Nortech Client II software. -
Page 29: Sensor's Signal Levels
EasyGrid Base User Guide v1.0 7.4 Sensor’s Signal levels The “Signal” value shall be used when further troubleshooting is required. Signal Levels Sensor connected directly into the monitor (without a patch cord or Easy Through) SIGNAL LEVEL (%) MEANING Signal > 88 EXCELLENT 80 <... -
Page 30: Warranty And Service
8.3 Exclusions FISO reserves the right to make changes in the design or construction of any of its products at any time without incurring obligation to make any changes on units previously purchased. Accessories, including but not limited to fuses, pilot lamps, and batteries used with FISO products are not covered by this warranty. -
Page 31: Transportation
FISO Headquarters Service Center 500 St-Jean-Baptiste Avenue, Suite 195 Quebec City (Quebec) CANADA G2E 5R9 Telephone: (418) 688-8065 Fax: (418) 688-8067 Email: support@FISO.com 8.7 Product disposal Please refer to your local authorities or send back the device to your local FISO distributor.
