Hussmann D5X-E Field Installation

Hussmann D5X-E Field Installation

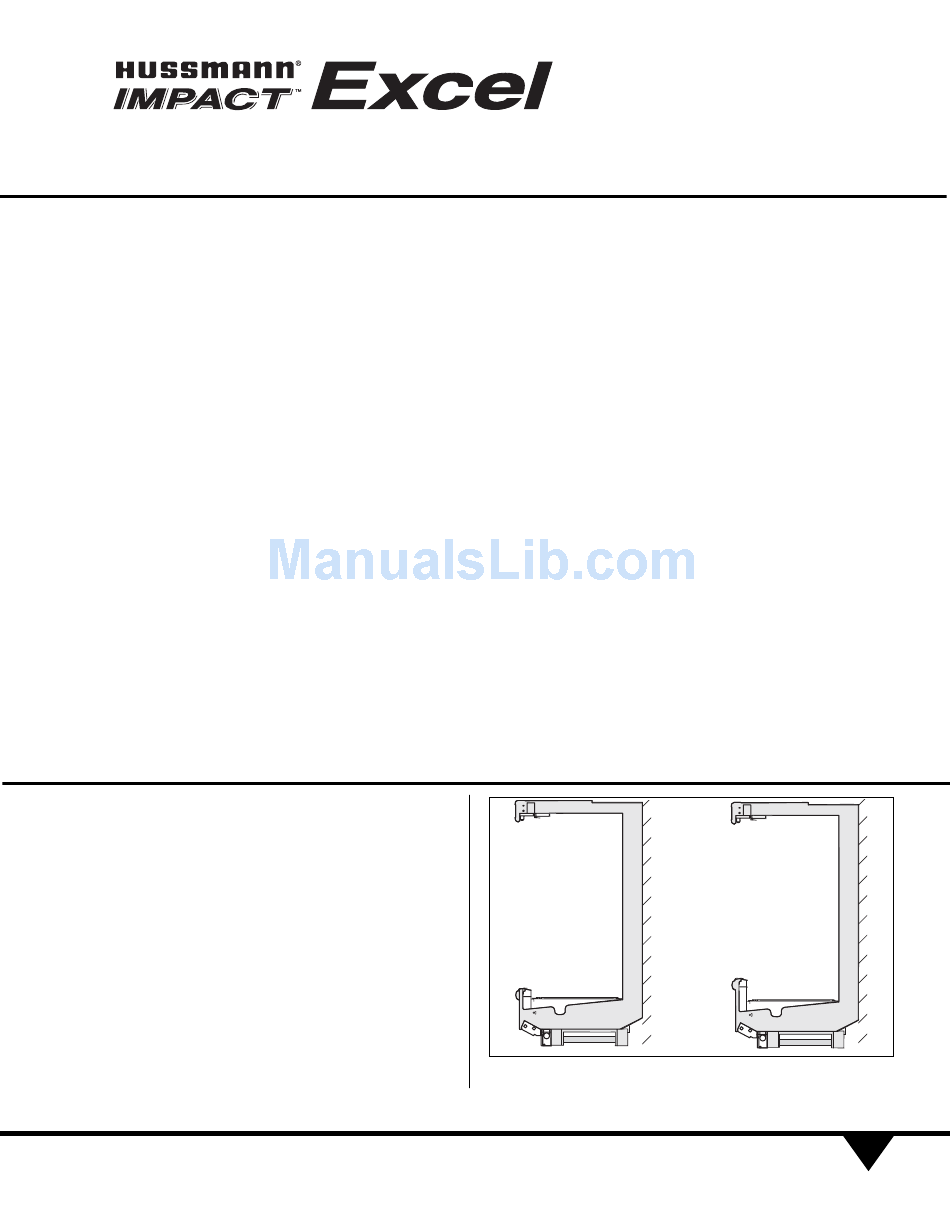

Impact excel glass view end for multi-deck dairy merchandisers
Hide thumbs Also See for D5X-E:

Advertisement

Quick Links

Download this manual See also: Installation and Servicing Manual
PARTS LIST
Item
Quantity
D5X-LE
D5X-E
1.
2
2.
1
3.
1
4.
1
5
1
6.
2
7.
4
8
1
9.
2
10.
1
11.
1
12.
6
13.
1
14.
1
15.
1
16.
2
17.
1
18.
1
19.
4
20.
1
21.
1
All equipment should be thoroughly examined for
shipping damage before and during unloading.
This equipment has been carefully inspected at our
factory. Any claim for loss or damage must be made
to the carrier. The carrier will provide any necessary
inspection reports and/or claim forms.
Every effort is made to ship all parts for the kit. The
Hussmann Service Center can be reached by calling
• from U.S. & Canada 1-800-922-1919 •
• from Mexico 1-800-522-1900 •
©2008 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
Description
2
Nut Retainer
1
Gasket Tape
1
Gasket Tape 1 x
1
Silicone Sealer
1
Bottom End Assembly
2
Cap Screw
4
Flat Washer
1
Top End Assembly
2
Cap Screw
1
Multiglass Assembly
1
Multiglass Extrusion
6
Screw – SM Hex Head – TEK2 – #8-18 x
1
Fascia End Plate
1
Bumper End Plate (
1
Fascia Panel
2
Bracket — End Splashguard
1
End Splashguard Cover
1
Splashguard — Standard 5.75 End
4
Screw – Truss Head – Phillips – #8-18 x
1
Corner Bumper (
1
End Bumper (
Glass View End for
5
/
-18
(left end only)
16
1
5
/
x 1
/
x 180
2
8
1
/
x 180
2
5
1
/
-18 x 2
/
16
2
5
/
16
5
3
/
-18 x 1
/
16
4
PART OF END BUMPER KIT
PART OF END BUMPER KIT
)
PART OF END BUMPER KIT
D5X-LE
Multi-Deck Dairy
Merchandisers
Field Installation
1
/
2
)
1
/
– Black
2
)
D5X-E
P/N 0503025_A
January 2008
1

Advertisement

loading

Related Manuals for Hussmann D5X-E

Summary of Contents for Hussmann D5X-E

  • Page 1 Hussmann Service Center can be reached by calling • from U.S. & Canada 1-800-922-1919 • • from Mexico 1-800-522-1900 • ©2008 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM Description Nut Retainer (left end only)

  • Page 2: Installing End Assemblies

    Carefully unpack crate with end assemblies. Check for damage. Locate and identify the parts listed on Page 1. Detail A Detail B Figure 1 — Uncrate and Inspect Glass U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • WWW.HUSSMANN.COM Detail C...
  • Page 3 Right End Only. Remove any factory-installed alignment pins. Verify Nut Retainers are in canopy positions indicated in Figure 2. Remove all others. Figure 2 — Install Nut Retainers in End Canopy HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM...
  • Page 4 Assure good adhesion of gaskets by wiping the end frame with rubbing alcohol to remove accu- mulated dust and oils. First Gasket Gasket (24 mm) Second Gasket in. (41 mm) Figure 3 — Apply Gaskets U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • WWW.HUSSMANN.COM...
  • Page 5 Apply Silicone Sealer – 4 over both Cap Screws – 6 as shown in Detail 5A Figure 4 — Install Bottom End Assembly Detail 5A Silicone Silicone Figure 5 — Seal Bottom End Assembly HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM...
  • Page 6 Top End Assembly – 7 to end frame with Cap Screws – 9 as shown in Figure 7. Front Rear Figure 6 — Align Top End Assembly Front Figure 7 — Install Top End Assembly U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • WWW.HUSSMANN.COM...
  • Page 7 This may require two people! Use Even Pressure Keep Glass Straight Push Glass Forward Glass Stopped at Front Corner Trim Figure 8 — Install Multiglass Assembly HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM...
  • Page 8 Screws – 12. Refer to photo in Figure 10. Figure 9 — Install Glass Extrusion Complete Screw Placement in Fascia End Plate Figure 10 — Install Fascia End Plate U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • WWW.HUSSMANN.COM...
  • Page 9 Glass View End for Multi-Deck Dairy Merchandisers Figure 11 — Install Bumper End Plate HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM PART OF END BUMPER KIT Attach the Bumper End Plate – 14 at the back of the upper end assembly using Screws –...
  • Page 10 No fasteners are used. Refer to Figure 12. Figure 12 — Install Fascia Panel U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • WWW.HUSSMANN.COM...
  • Page 11 Glass View End for Multi-Deck Dairy Merchandisers Figure 13 — Install Splashguard Brackets Figure 14 — Install Splashguard and Splashguard Cover HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM P/N 0503025_A Attach the Splashguard Brackets – 16 to side of legs using Screws –...
  • Page 12 Attach the End Splashguard Cover – 17 and End Splashguard – 18 t the back of the upper end assembly using Screws – 19. Refer to Figure 14. Figure 15 — Install End Bumpers U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • WWW.HUSSMANN.COM...
